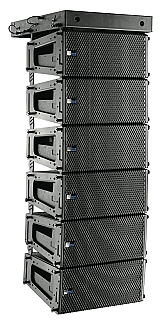

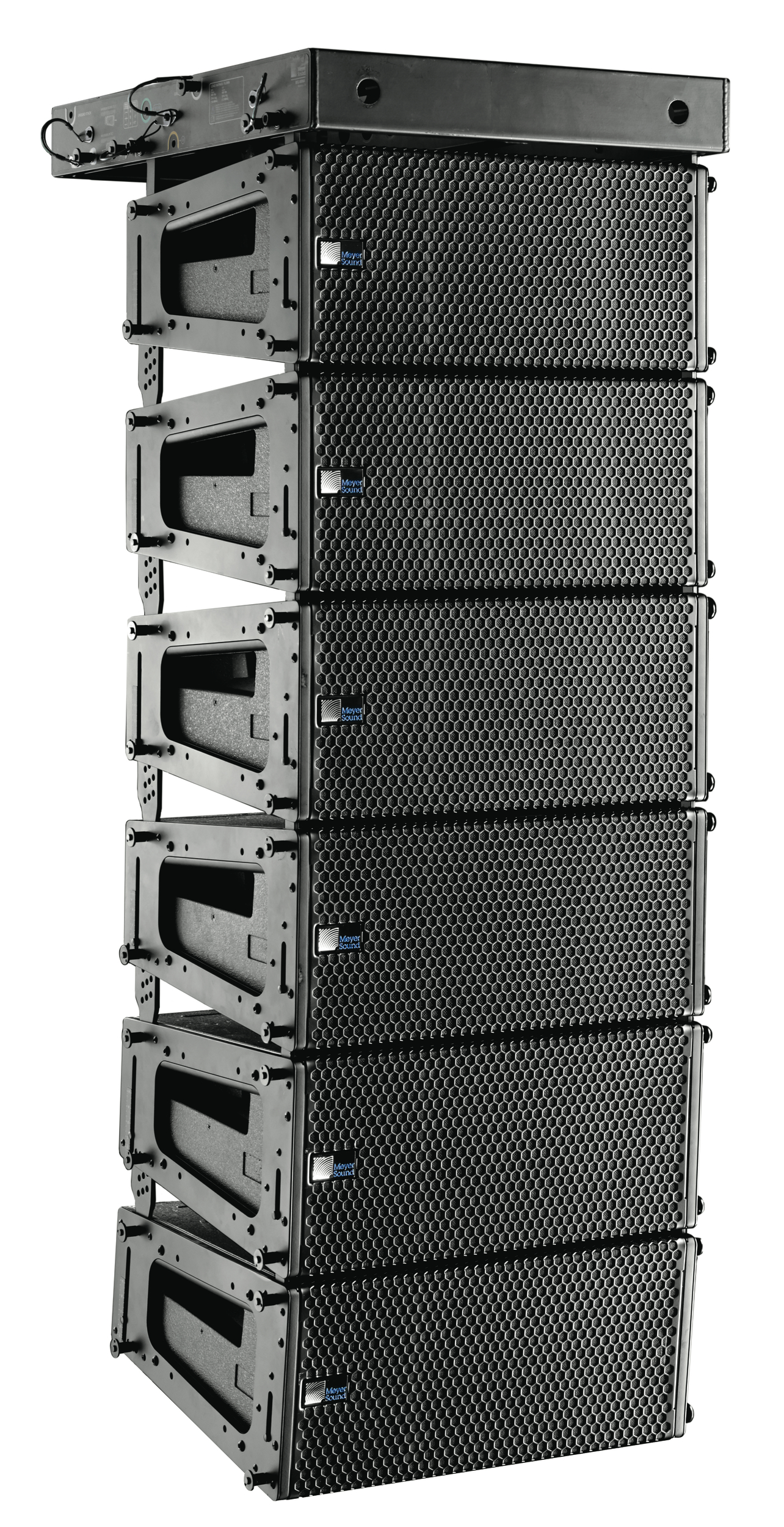

Lautsprecher-Typ:Line-Array-Module
Verstärkung Typ:Aktiv / Self-Powered
Max. SPL:138 dB
Horizontaler Abstrahlwinkel:100 º
Tieftöner-Durchmesser:6.50 "
Anzahl der Tieftöner:2
Physikalische Digital-Audio-Anschlüsse:XLR (3-pin)
Audio-Netzwerkprotokoll:Ravenna, Milan
Kardiod-fähig:Nein
Audio Lautsprecher Besonderheit:Onboard DSP
Gesamtanzahl der Lautsprecher:3
Bestückung:2x 6.5-inch LF drivers, 1x 3-inch HF driver with constant-directivity horn
Frequency Response:65–18 000 Hz
Leistungsoptionen für Aktivlautsprecher:100 V, 50/60 Hz, 120 V, 60 Hz, 230 / 240 V, 50 Hz
Lautsprecher-Montageoptionen:Boden gestapelt, Array Frame Kompatibel, Flyware-kompatibel
Gehäusefarbe:Schwarz
Typische Leistungsaufnahme von Aktivlautsprechern:264.50 W
Kabinettbau:Premium multi-ply birch enclosure with a slightly textured black finish; powder-coated hex-stamped steel protective grille with acoustical black mesh.
Typischer Stromverbrauch:264.50 W
Spannungsversorgungs-Optionen:100 V, 50 / 60 Hz, 120 V, 60 Hz, 230 V / 240 V, 50 Hz
IP-Schutzart:IP20
Hersteller Code:04.270.004.02 B2
Produktreihe:LEO Family
Optionales Zubehör:MG-MINA/LINA Grid, MUB-MINA/LINA U-Bracket, PBF-LINA Pull Back Frame, MYA-MINA/LINA Yoke, MCF-MINA/LINA Caster Frame, MVP motor Vee plate, Galileo GALAXY, MDM-832 Module
Enthaltenes Zubehör:End frames with GuideALinks for array splaying
Kompatibel mit:LEOPARD line array loudspeaker, 750-LFC, 900-LFC, Galileo GALAXY Network Platform, MDM-832 Distribution Module
Gewicht:19.50 kg
