VS6W
From: YamahaIDYAMV-DEDH
VS6W
From: YamahaIDYAMV-DEDH

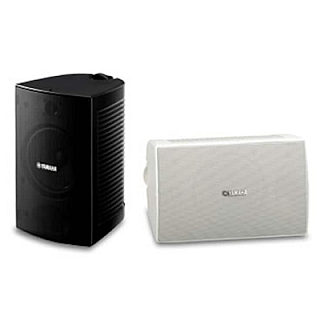

The Yamaha VS6W is a white compact surface-mount speaker designed for high-quality audio in indoor and outdoor installations where aesthetics matter. Featuring a 6.5-inch cone woofer and 1-inch balanced dome tweeter, it delivers 80Hz-20kHz frequency response with 90°x90° coverage. IPX3-rated waterproof construction ensures reliable outdoor use under cover. The 8Ω speaker includes internal transformers for 70V/100V distributed systems (25W/12.5W/6.3W taps) with overload protection. Measuring 19x30.8x21.9cm and weighing 2.8kg, it features paintable enclosure/grill to match decor and comes with U-bracket mounting hardware for horizontal/vertical installation.
Product Details
Brand:Yamaha
Audio Speaker Type:Full-Range Speakers, Installation Loudspeakers
Amplification Type:Passive
Max. SPL:110 dB
Nominal Horizontal Coverage:90 º
Nominal Vertical Coverage:90 º
LF Driver Diameter:6.50 "
Amount of LF Speakers:1
Audio Network Protocol:None
Cardioid Capability:No
Amount of Speakers in Device:2
Components:6.5-inch cone woofer, 1-inch balanced dome tweeter
RMS Power Handling:50 W
Frequency Response:80–20 000 Hz
Nominal Impedance (Ohm):8
Speaker Mounting Options:Other Rigging Methods
Housing Colour:White
Typical Power Consumption of Active Speakers:50 W
Cabinet Construction:HIPS, 94-HB
Power Consumption Typical:50 W
Power Options:100 V, 50 / 60 Hz
IP Rating:IP23
Manufacturer Code:VS6W
Product Series:VS Series
Included Accessories:U-bracket, Owner's Manual, Retaining knob, Terminal cover, Terminal cover screw, SPECIFICATIONS
Weight:2.80 kg
Dimensions
Width:19 cm
Length:21.90 cm
Height:30.80 cm
All information is provided without warranty. If you find any errors, please let us know using the feedback button.
All information is provided without warranty.
If you find any errors, please let us know using the feedback button.
