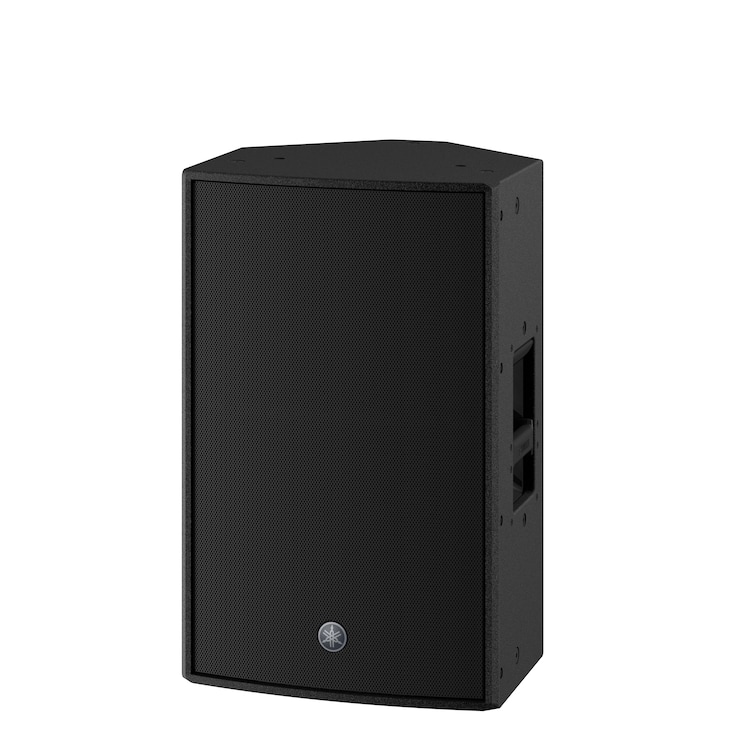

DZR10W

From: YamahaIDYAMV-8CVS

The Yamaha DZR10W is a 2-way bi-amped active loudspeaker featuring a 10" neodymium LF driver and 2" HF compression driver. With a frequency response of 44Hz-20kHz and 90°x60° rotatable coverage, it delivers 137dB SPL maximum output. The speaker utilizes 96kHz DSP with FIR-X tuning for audio processing. Powered by a 2000W Class-D amplifier, it offers 950W continuous power handling. The cabinet measures 31.5x53.7x34.5cm and weighs 17.9kg, with M10 rigging points, pole sockets, and floor monitor capability.

Used Equipment

Vendors

Used Sources

Rental

Vendor Locations

Rental Sources

Product Details

Brand:Yamaha

Audio Speaker Type:Point Source Loudspeakers, Stage Monitors, Full-Range Speakers

Amplification Type:Active / Self-Powered

Max. SPL:137 dB

Nominal Horizontal Coverage:90 º

Nominal Vertical Coverage:60 º

LF Driver Diameter:10 "

Amount of LF Speakers:1

Audio Network Protocol:None

Cardioid Capability:No

Audio Speaker Features:Onboard DSP

Amount of Speakers in Device:2

Components:10" Cone LF with 3" Voice Coil, Neodymium magnet; 2" Voice Coil HF Compression Driver with 1" Throat and Titanium diaphragm

RMS Power Handling:950 W

Frequency Response:44–20 000 Hz

Power Options for Active Speakers:100 V, 50/60 Hz, 120 V, 60 Hz, 230 / 240 V, 50 Hz

Speaker Mounting Options:Ground Stacked, Pole Mounted, M10 Points

Housing Colour:White

Typical Power Consumption of Active Speakers:150 W

Cabinet Construction:Plywood cabinet with durable Polyurea painting.

Power Consumption Typical:150 W

Power Options:100 V, 50 / 60 Hz, 120 V, 60 Hz, 230 V / 240 V, 50 Hz

IP Rating:IP20

Manufacturer Code:DZR10W

Product Series:DZR Series

Optional Accessories:SPCVR-DZR10 speaker cover, UB-DZR10H/V U-brackets

Weight:17.90 kg

Dimensions

Width:31.50 cm

Length:34.50 cm

Height:53.70 cm

All information is provided without warranty. If you find any errors, please let us know using the feedback button.

All information is provided without warranty.

If you find any errors, please let us know using the feedback button.
