AD8HR

From: YamahaIDYAMV-H7EZ

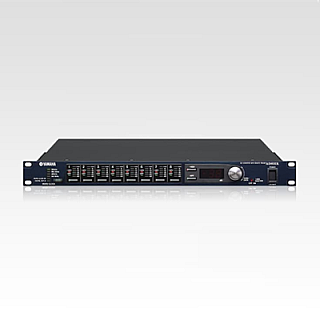

The Yamaha AD8HR is a remotely controllable 8-channel microphone preamp and 24-bit/96-kHz AD converter designed for professional audio applications. It features microphone preamplifier technology inherited from the PM5000 analog console, delivering exceptional sound quality with total harmonic distortion of less than 0.01% (20Hz-40kHz). Each channel offers 1 dB step gain control, high-pass filtering with remotely adjustable cutoff frequency, and switchable phantom power. The unit provides dual AES/EBU digital outputs (2 x 8 channels) via D-Sub connectors, enabling separate signal paths for FOH and monitoring/recording. With compact 1U dimensions (480x45x383.5mm) and the ability to daisy-chain up to 255 units, the AD8HR serves as an ideal remote stage box solution for integration with Yamaha digital consoles.

Used Equipment

Vendors

Used Sources

Rental

Vendor Locations

Rental Sources

Product Details

Brand:Yamaha

Signal Distribution & Interface Device Type:Stagebox, Format Converter

Analog Input Channels:8

Digital Output Channels:8

Digital Audio Formats:AES3

Audio Network Protocol:AES67

PoE (Power over Ethernet):No

Transformer Isolated:No

Total Input Channels (Analog & Digital):8

Physical Audio Input Connectors:XLR (3-Pin)

Physical Digital Audio Connectors:D-Sub (DB25)

Physical Audio Output Connectors:DB25

Manufacturer Code:AD8HR

Physical Audio Multicore Connectors:D-Sub / DB 25 (Tascam)

Control Methods:RS422 or switchable PC/RS422 nine-pin terminals; remote control from compatible Yamaha digital mixing consoles

Rack mounting:1U rackmount

Included Accessories:Owner's manual, AC Cable, 4x Rubber Foot

Compatible with:Yamaha PM5D, Yamaha DM2000, Yamaha DM1000

Power Consumption Typical:35 W

Power Options:100 V, 50 / 60 Hz, 120 V, 60 Hz, 230 V / 240 V, 50 Hz

Weight:5 kg

Dimensions

Width:48 cm

Length:38.40 cm

Height:4.50 cm
