01V96 Version 2

From: YamahaIDYAMV-BY4Q

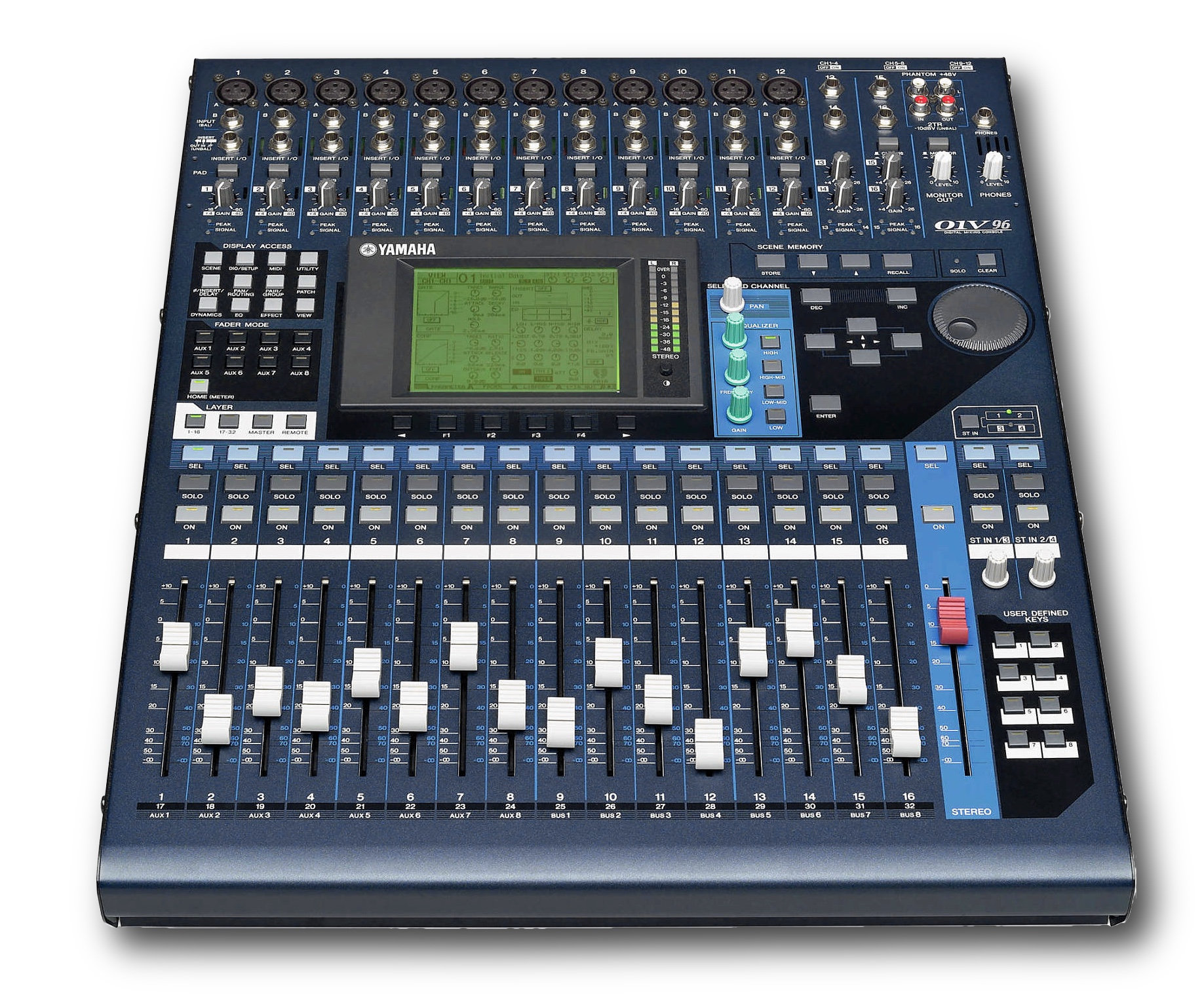

01V96 Version 2 by Yamaha is a digital audio console intended for live sound and studio use. It provides 16 mic/line inputs with 24-bit A/D-D/A conversion and 48 kHz internal processing. The unit supports flexible multi-bus routing and multiple auxiliary sends, plus built-in effects via dual processors. Features include motorized faders, scene recall, and USB I/O for recording and playback, with full EQ and dynamics on all channels.

Used Equipment

Vendors

Used Sources

Rental

Vendor Locations

Rental Sources

Product Details

Brand:Yamaha

Console Configuration:Integrated Console, Control Surface, Rack Mixer

Mixing Technology:Digital

Total Input Channels (Analog & Digital):40

Analog Input Channels:16

Digital Input Channels:10

Analog Output Channels:14

Digital Output Channels:10

Mix Buses Mono:8

Mix Buses Stereo:4

Amount of Faders:17

Analog Mic/Line Input Channels (Mono):12

Analog Stereo Input Channels:0

Analog Stereo Output Channels:2

Main Bus Format:Left + Right (LR)

Phono Input Channels (Stereo):0

Matrix Buses Stereo:0

Audio Console Features:Integrated Effects, Phantom Power, Motorised Faders, Rackmount, Remote Controllable

Aux Sends per Channel:8

Pre/Post Switch per Aux Send:Yes

Aux Buses Mono:8

Aux Buses Stereo:0

VCA/DCA Groups:0

Mute Groups:0

Physical Audio Input Connectors:3,5 mm Mini Jack (TRS)

Physical Audio Output Connectors:XLR (3-Pin), 3,5 mm Mini Jack (TRS)

Physical Digital Audio Connectors:RCA / Cinch, TOSLINK (optical)

Matrix Buses Mono:0

Supported Audio Formats:WAV, BWF, AIFF

Fader Resolution:0.1 dB step

GPI Connector:No

Redundant Power Supply:No

Manufacturer Code:01V96V2

Product Series:01V96

Power Consumption Typical:90 W

Power Options:120 V, 60 Hz, 230 V / 240 V, 50 Hz

Optional Accessories:RK1 Rack Mount Kit; MY-series mini-YGDAI expansion cards (e.g., MY8-AD, MY4-DA, MY8-DA96)

Weight:15 kg

Dimensions

Width:43.60 cm

Length:54.80 cm

Height:15 cm

All information is provided without warranty. If you find any errors, please let us know using the feedback button.

All information is provided without warranty.

If you find any errors, please let us know using the feedback button.

Brand	Yamaha
Console Configuration	Integrated Console, Control Surface, Rack Mixer
Mixing Technology	Digital
Total Input Channels (Analog & Digital)	40
Analog Input Channels	16
Digital Input Channels	10
Analog Output Channels	14
Digital Output Channels	10
Mix Buses Mono	8
Mix Buses Stereo	4
Amount of Faders	17
Analog Mic/Line Input Channels (Mono)	12
Analog Stereo Input Channels	0
Analog Stereo Output Channels	2
Main Bus Format	Left + Right (LR)
Phono Input Channels (Stereo)	0
Matrix Buses Stereo	0
Audio Console Features	Integrated Effects, Phantom Power, Motorised Faders, Rackmount, Remote Controllable
Aux Sends per Channel	8
Pre/Post Switch per Aux Send	Yes
Aux Buses Mono	8
Aux Buses Stereo	0
VCA/DCA Groups	0
Mute Groups	0
Physical Audio Input Connectors	3,5 mm Mini Jack (TRS)
Physical Audio Output Connectors	XLR (3-Pin), 3,5 mm Mini Jack (TRS)
Physical Digital Audio Connectors	RCA / Cinch, TOSLINK (optical)
Matrix Buses Mono	0
Supported Audio Formats	WAV, BWF, AIFF
Fader Resolution	0.1 dB step
GPI Connector	No
Redundant Power Supply	No
Manufacturer Code	01V96V2
Product Series	01V96
Power Consumption Typical	90 W
Power Options	120 V, 60 Hz, 230 V / 240 V, 50 Hz
Optional Accessories	RK1 Rack Mount Kit; MY-series mini-YGDAI expansion cards (e.g., MY8-AD, MY4-DA, MY8-DA96)
Weight	15 kg
Dimensions
Width	43.60 cm
Length	54.80 cm
Height	15 cm
