CXN-12

From: Voice-AcousticIDVCEA-8GAR

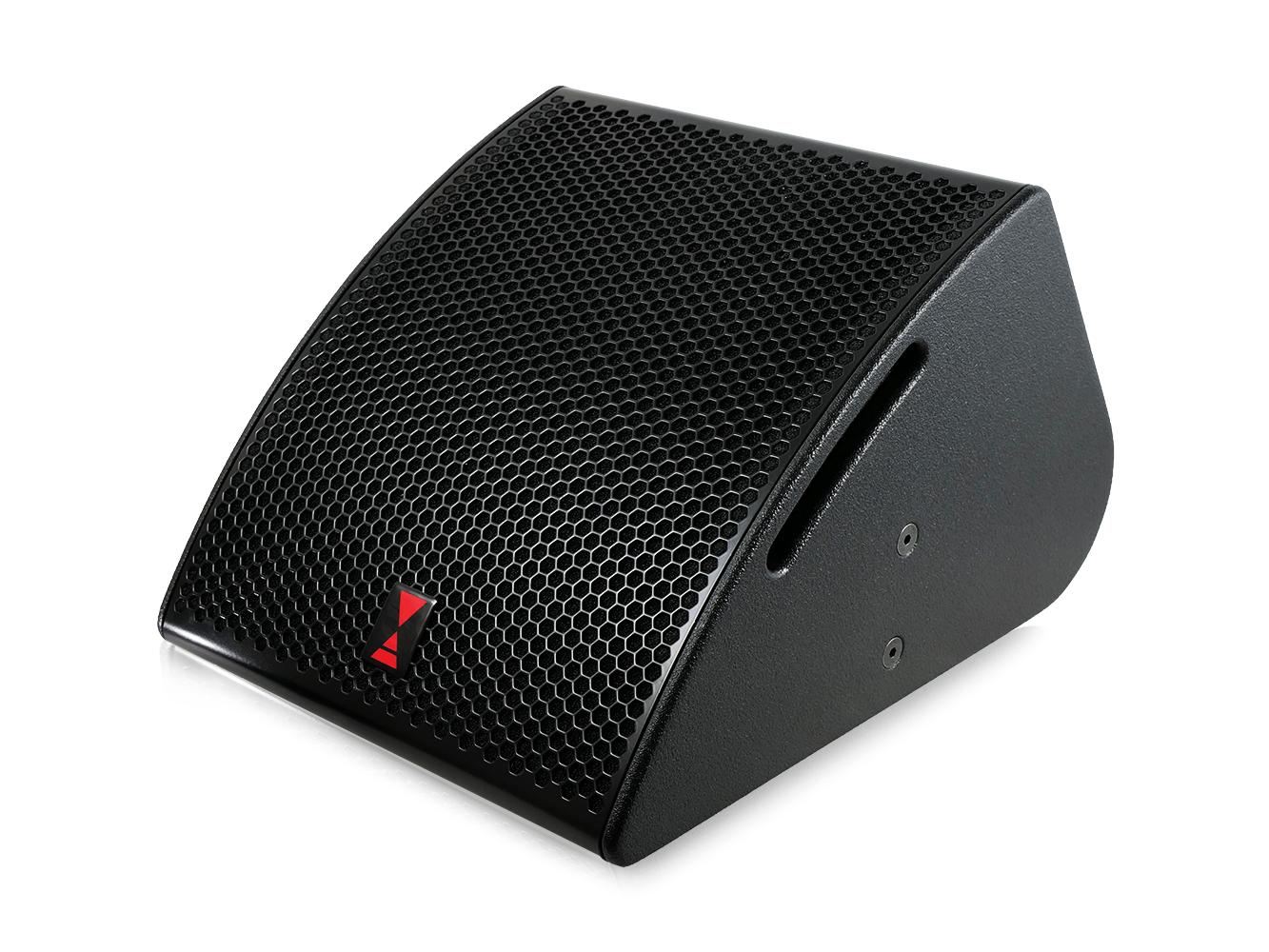

The Voice-Acoustic CXN-12 is a passive 2-way floor monitor featuring a 12"/1.4" neodymium coaxial transducer with 80° conical dispersion. Designed for live performance and TV/gala productions, it delivers a frequency range of 63 Hz - 18 kHz (-10 dB) with 101 dB sensitivity (1W/1m). The compact 307x370x477 mm enclosure weighs 14 kg and includes an 8 Ω impedance, 400 W AES power handling, and step-proof 2 mm steel grille. Engineered for feedback resistance and stage mobility, it features recessed NL4 connectors, tool-free flyware compatibility, and rubber feet for stacking. The birch plywood cabinet features polyurea RAL 9005 black coating with optional special colors.

Used Equipment

Vendors

Used Sources

Rental

Vendor Locations

Rental Sources

Product Details

Brand:Voice-Acoustic

Audio Speaker Type:Point Source Loudspeakers, Stage Monitors

Amplification Type:Passive

Max. SPL:133 dB

Nominal Horizontal Coverage:80 º

Nominal Vertical Coverage:80 º

LF Driver Diameter:12 "

Amount of LF Speakers:1

Cardioid Capability:No

Amount of Speakers in Device:2

Components:12" LF driver with 3" voice coil, 1.4" compression driver with 2.4" voice coil

RMS Power Handling:400 W

Frequency Response:100–15 000 Hz

Nominal Impedance (Ohm):8

Speaker Mounting Options:Ground Stacked, Flyware Compatible

Housing Colour:Black

Cabinet Construction:CNC-milled birch plywood enclosure with waterproof glue, screws, grooves and moisture-resistant polyurea coating

Power Options:Other

IP Rating:IP20

Manufacturer Code:CXN-12

Product Series:CXN

Optional Accessories:Transport cover, Heavy-Duty Flight Case, Wall bracket, U-bracket, Click-in flyware hardware, Self-lock clamp, Safety cables, Speaker stands, Cable clips

Compatible with:Voice-Acoustic HDSP system amplifiers, Voice-Acoustic VADAS system amplifiers, self-powered subwoofers, Paveosub-115 stacking system

Weight:14 kg

Dimensions

Width:37 cm

Length:47.70 cm

Height:30.70 cm

All information is provided without warranty. If you find any errors, please let us know using the feedback button.

All information is provided without warranty.

If you find any errors, please let us know using the feedback button.

Brand	Voice-Acoustic
Audio Speaker Type	Point Source Loudspeakers, Stage Monitors
Amplification Type	Passive
Max. SPL	133 dB
Nominal Horizontal Coverage	80 º
Nominal Vertical Coverage	80 º
LF Driver Diameter	12 "
Amount of LF Speakers	1
Cardioid Capability	No
Amount of Speakers in Device	2
Components	12" LF driver with 3" voice coil, 1.4" compression driver with 2.4" voice coil
RMS Power Handling	400 W
Frequency Response	100–15 000 Hz
Nominal Impedance (Ohm)	8
Speaker Mounting Options	Ground Stacked, Flyware Compatible
Housing Colour	Black
Cabinet Construction	CNC-milled birch plywood enclosure with waterproof glue, screws, grooves and moisture-resistant polyurea coating
Power Options	Other
IP Rating	IP20
Manufacturer Code	CXN-12
Product Series	CXN
Optional Accessories	Transport cover, Heavy-Duty Flight Case, Wall bracket, U-bracket, Click-in flyware hardware, Self-lock clamp, Safety cables, Speaker stands, Cable clips
Compatible with	Voice-Acoustic HDSP system amplifiers, Voice-Acoustic VADAS system amplifiers, self-powered subwoofers, Paveosub-115 stacking system
Weight	14 kg
Dimensions
Width	37 cm
Length	47.70 cm
Height	30.70 cm
