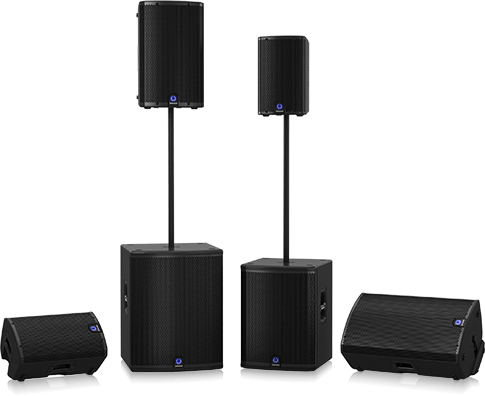

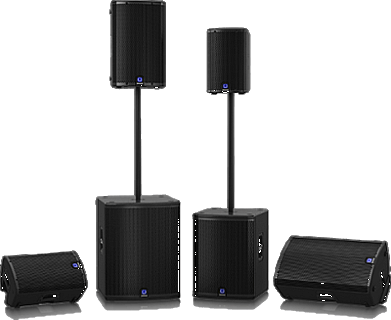

iQ15B

From: TurbosoundIDTURB-WDVT

The Turbosound iQ15B is a 3,000-watt powered subwoofer featuring a front-loaded 15-inch low-frequency driver with 4-inch voice coil. Designed for both portable PA and installation applications, it incorporates Klark Teknik Class-D amplifier technology and advanced DSP for system control. The subwoofer includes speaker modeling presets, ULTRANET digital audio networking, and a user-friendly interface with LCD display. Housed in a birch plywood enclosure with semi-matt black finish, it features 36mm pole mount capability, steel castors, and industry-standard power connectors. With a frequency response of 50-130 Hz ±3 dB and maximum SPL of 130 dB peak, it delivers precise low-end reproduction for demanding sound reinforcement applications.

Used Equipment

Vendors

Used Sources

Rental

Vendor Locations

Rental Sources

Product Details

Brand:Turbosound

Audio Speaker Type:Subwoofers

Amplification Type:Active / Self-Powered

Max. SPL:130 dB

LF Driver Diameter:15 "

Amount of LF Speakers:1

Physical Digital Audio Connectors:Ethernet (RJ45)

Audio Network Protocol:EtherSound

Cardioid Capability:No

Audio Speaker Features:Onboard DSP

Amount of Speakers in Device:1

Components:1 x 15\" LF driver

RMS Power Handling:3 000 W

Frequency Response:50–130 Hz

Power Options for Active Speakers:100 V, 50/60 Hz, 120 V, 60 Hz, 230 / 240 V, 50 Hz

Speaker Mounting Options:Pole Mounted

Housing Colour:Black

Typical Power Consumption of Active Speakers:200 W

Cabinet Construction:birch plywood enclosure

Power Consumption Typical:200 W

Power Options:100 V, 50 / 60 Hz, 120 V, 60 Hz, 230 V / 240 V, 50 Hz

IP Rating:IP20

Manufacturer Code:0313-AEO

Product Series:iQ Series

Optional Accessories:TS-PC15B-1, TS-PC15B-2

Compatible with:ULTRANET-enabled digital mixers, powered loudspeakers, and personal monitor systems

Weight:30.60 kg

Dimensions

Width:44.40 cm

Length:49.50 cm

Height:60.20 cm

All information is provided without warranty. If you find any errors, please let us know using the feedback button.

All information is provided without warranty.

If you find any errors, please let us know using the feedback button.

Brand	Turbosound
Audio Speaker Type	Subwoofers
Amplification Type	Active / Self-Powered
Max. SPL	130 dB
LF Driver Diameter	15 "
Amount of LF Speakers	1
Physical Digital Audio Connectors	Ethernet (RJ45)
Audio Network Protocol	EtherSound
Cardioid Capability	No
Audio Speaker Features	Onboard DSP
Amount of Speakers in Device	1
Components	1 x 15\" LF driver
RMS Power Handling	3 000 W
Frequency Response	50–130 Hz
Power Options for Active Speakers	100 V, 50/60 Hz, 120 V, 60 Hz, 230 / 240 V, 50 Hz
Speaker Mounting Options	Pole Mounted
Housing Colour	Black
Typical Power Consumption of Active Speakers	200 W
Cabinet Construction	birch plywood enclosure
Power Consumption Typical	200 W
Power Options	100 V, 50 / 60 Hz, 120 V, 60 Hz, 230 V / 240 V, 50 Hz
IP Rating	IP20
Manufacturer Code	0313-AEO
Product Series	iQ Series
Optional Accessories	TS-PC15B-1, TS-PC15B-2
Compatible with	ULTRANET-enabled digital mixers, powered loudspeakers, and personal monitor systems
Weight	30.60 kg
Dimensions
Width	44.40 cm
Length	49.50 cm
Height	60.20 cm
