DQX4-8000

From: StudiomasterIDSTUP-TMGE

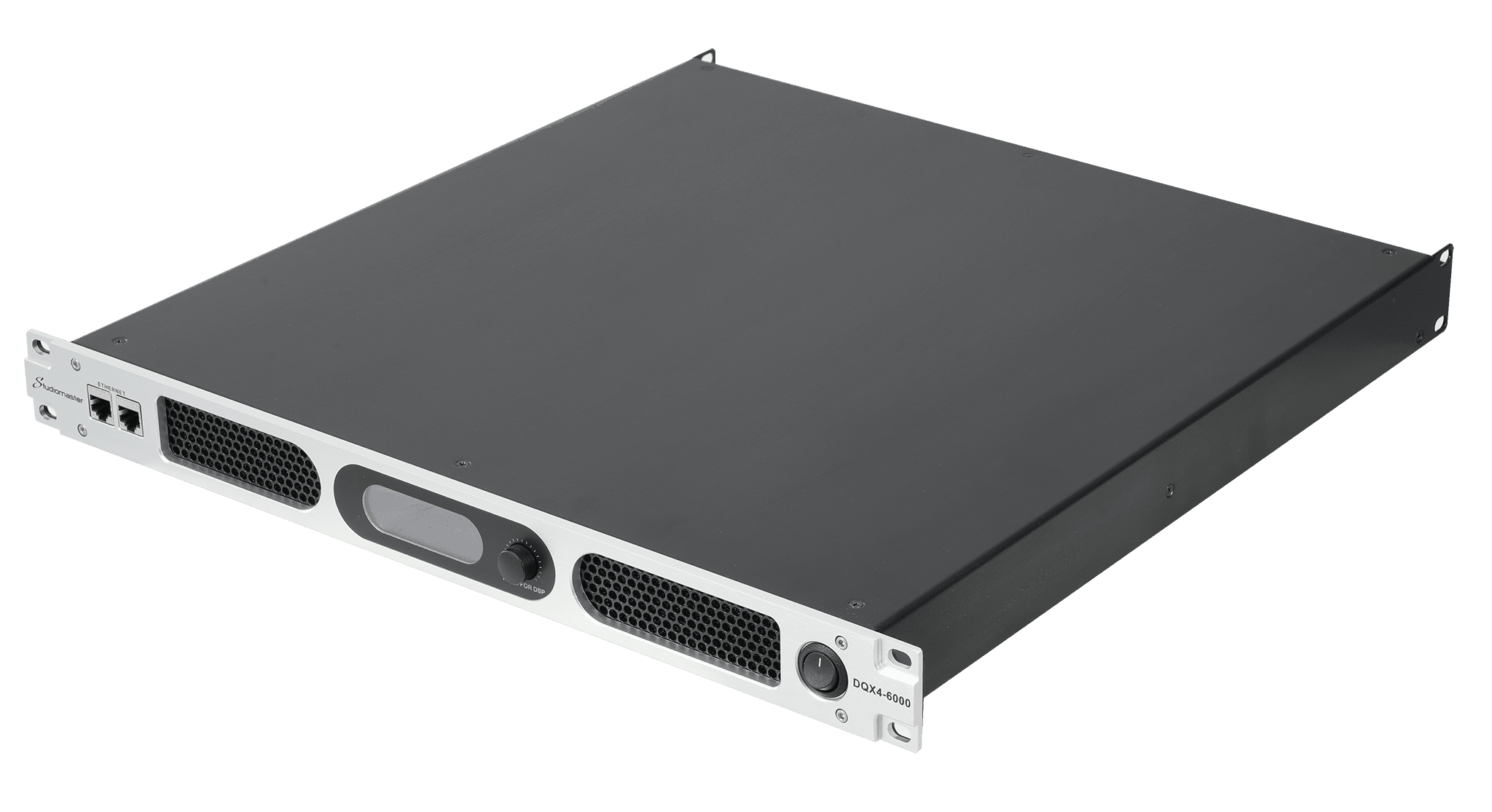

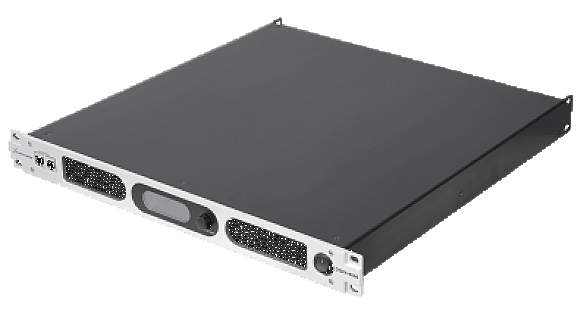

StudioMaster's DQX4-8000 is a 4-channel digital power amplifier delivering 2000W per channel at 8 ohms (8000W total). Featuring integrated DSP with a 3.3" HD LCD screen for real-time monitoring, it operates with Power Factor Correction across a universal 90-260V power supply. The amplifier provides 3400W per channel at 4 ohms and 4760W at 2 ohms, with frequency response of 20Hz-20kHz (±0.3dB) and signal-to-noise ratio of 112dB. This 1U rackmount design weighs 12kg with dimensions of 48.3×4.4×46.5cm, making it suitable for both installation and rental applications requiring high-power audio amplification.

Used Equipment

Vendors

Used Sources

Rental

Vendor Locations

Rental Sources

Product Details

Brand:Studiomaster

Speaker Output Channels:4 CH

Power Output per Channel (8 Ohm):2 000 W

Integrated DSP:Yes

Amplifier Features:DSP integrated

Audio Network Protocol:AES67

Type of Amplifier:Power Amplifiers

Power Output per Channel (2 Ohm):4 760 W

Power Output per Channel (4 Ohm):3 400 W

Total Device Power Output (8 Ohm):8 000 W

Output Power Distribution:Equal Power per Channel, Bridgeable Output Channels

Physical Audio Input Connectors:XLR (3-Pin)

Analog Input Channels:4

Digital Input Channels:2

Physical Digital Audio Connectors:XLR (3-pin)

Silent Operation:No

Rack mounting:1U Rackmount

Frequency Response:20–20 000 Hz

Protection features:Low voltage, DC output, thermal, overload

Power Options:100 V, 50 / 60 Hz, 120 V, 60 Hz, 230 V / 240 V, 50 Hz

Product Series:DQX

Manufacturer Code:DQX4-8000

Weight:12 kg

Dimensions

Width:48.30 cm

Length:46.50 cm

Height:4.40 cm

All information is provided without warranty. If you find any errors, please let us know using the feedback button.

All information is provided without warranty.

If you find any errors, please let us know using the feedback button.

Brand	Studiomaster
Speaker Output Channels	4 CH
Power Output per Channel (8 Ohm)	2 000 W
Integrated DSP	Yes
Amplifier Features	DSP integrated
Audio Network Protocol	AES67
Type of Amplifier	Power Amplifiers
Power Output per Channel (2 Ohm)	4 760 W
Power Output per Channel (4 Ohm)	3 400 W
Total Device Power Output (8 Ohm)	8 000 W
Output Power Distribution	Equal Power per Channel, Bridgeable Output Channels
Physical Audio Input Connectors	XLR (3-Pin)
Analog Input Channels	4
Digital Input Channels	2
Physical Digital Audio Connectors	XLR (3-pin)
Silent Operation	No
Rack mounting	1U Rackmount
Frequency Response	20–20 000 Hz
Protection features	Low voltage, DC output, thermal, overload
Power Options	100 V, 50 / 60 Hz, 120 V, 60 Hz, 230 V / 240 V, 50 Hz
Product Series	DQX
Manufacturer Code	DQX4-8000
Weight	12 kg
Dimensions
Width	48.30 cm
Length	46.50 cm
Height	4.40 cm
