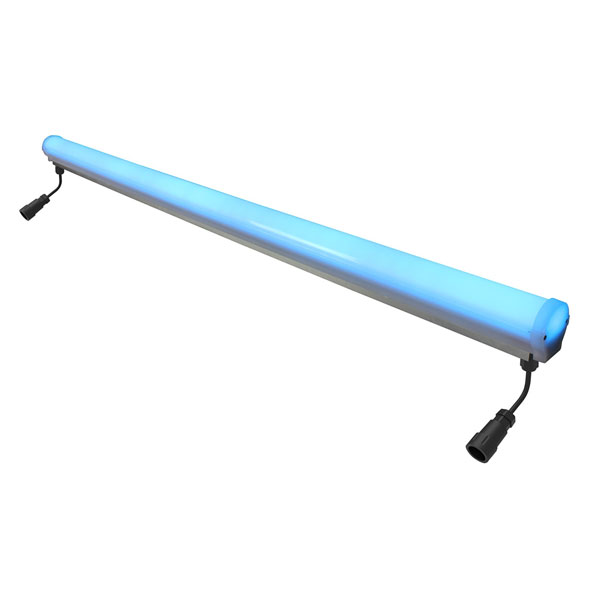

COLORFLOW RGBW 100cm

From: Studio DueIDSTUD-6F73

The COLORFLOW RGBW 100cm is an ultra-compact linear LED tube measuring 1010mm in length with IP67 protection. It features 44 RGBW multichip LEDs delivering red (380lm), green (440lm), blue (160lm), and white (560lm) output through 180° optics. Operating on 48VDC at 30W maximum power, it uses DMX-RDM control with selectable channel modes (9ch, 5ch, or 4ch). The aluminum structure with PMMA tube enables architectural lighting applications requiring surface mounting. Requires external 48VDC power supply and weighs 1.4kg.

Used Equipment

Vendors

Used Sources

Rental

Vendor Locations

Rental Sources

Product Details

Brand:Studio Due

Lighting Fixture Type:Architectural Lighting, Lighting / Video Tubes, Lighting Effects

Light Source Wattage:30 W

Light Output at Native Colour Temperature:560 lm

Light Source Type:Multicolour LEDs

Colour Creation Method:LED Colour Creation

Fixture Output Colour Temperature Range:3 000–6 500 K

Beam Angle Options:Static

Beam Angle Range (w/o accessories):180 º

Horizontal Beam Angle Range:180 º

Vertical Beam Angle Range:180 º

Pole Operation:No

IP Rating:IP67

Beam Iris:No

Dimmer Type:Electronically

Silent Operation:No

Video Mapping:No

Control and Communication Standards:DMX512-A, sACN

Application Range:Medium (8 m - 25 m throw)

Housing Colour:Black

Manufacturer Code:230 085

Power Consumption Typical:30 W

Power Options:Other

Weight:1.40 kg

Dimensions

Width:4.60 cm

Length:101 cm

Height:4.60 cm

All information is provided without warranty. If you find any errors, please let us know using the feedback button.

All information is provided without warranty.

If you find any errors, please let us know using the feedback button.

Brand	Studio Due
Lighting Fixture Type	Architectural Lighting, Lighting / Video Tubes, Lighting Effects
Light Source Wattage	30 W
Light Output at Native Colour Temperature	560 lm
Light Source Type	Multicolour LEDs
Colour Creation Method	LED Colour Creation
Fixture Output Colour Temperature Range	3 000–6 500 K
Beam Angle Options	Static
Beam Angle Range (w/o accessories)	180 º
Horizontal Beam Angle Range	180 º
Vertical Beam Angle Range	180 º
Pole Operation	No
IP Rating	IP67
Beam Iris	No
Dimmer Type	Electronically
Silent Operation	No
Video Mapping	No
Control and Communication Standards	DMX512-A, sACN
Application Range	Medium (8 m - 25 m throw)
Housing Colour	Black
Manufacturer Code	230 085
Power Consumption Typical	30 W
Power Options	Other
Weight	1.40 kg
Dimensions
Width	4.60 cm
Length	101 cm
Height	4.60 cm
