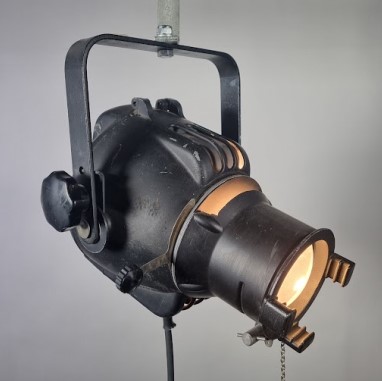

Pattern 23

From: Strand LightingIDSTRA-XPGY

Pattern 23 is Strand's classic Baby Mirror Spotlight (profile spot with gate/masks) engineered for precise beam shaping via fixed aperture masks. It uses front and rear reflectors to project through a gate with four fixed masks, plus optional iris diaphragm, adjustable straight-edge masks, and four-sided shutters. A 500 W tungsten lamp (T/1 or T/17) in a P28s lampholder powers multiple objective lens configurations, delivering beam angles roughly 17°–30° and a throw near 8 m across Patt. 23 variants.

Used Equipment

Vendors

Used Sources

Rental

Vendor Location

Rental Sources

Product Details

Brand:Strand Lighting

Lighting Fixture Type:Profile Spotlights

Light Source Wattage:500 W

Lamp Model:T/1 500W; T/17 500W; P28s

Light Source Type:Incandescent Lamp

Colour Creation Method:Fixed Colour Filters

Native Light Source Colour Temperature:3 000 K

Fixture Output Colour Temperature Range:3 000 K

Beam Angle Options:Static

Beam Angle Range (w/o accessories):17–30 º

Horizontal Beam Angle Range:17–30 º

Vertical Beam Angle Range:17–30 º

Pole Operation:No

IP Rating:IP20

Framing / Beam Shaping Module:Manual Framing Operation, 4 Blades

Beam Iris:Yes

Dimmer Type:Mechanically

Silent Operation:No

Video Mapping:No

Control and Communication Standards:Standalone

Application Range:Small (up to 10 m throw)

Housing Colour:Black

Manufacturer Code:Patt. 23 - E27 Edison 13A-2

Power Consumption Typical:500 W

Power Options:230 V / 240 V, 50 Hz

Weight:3 kg
