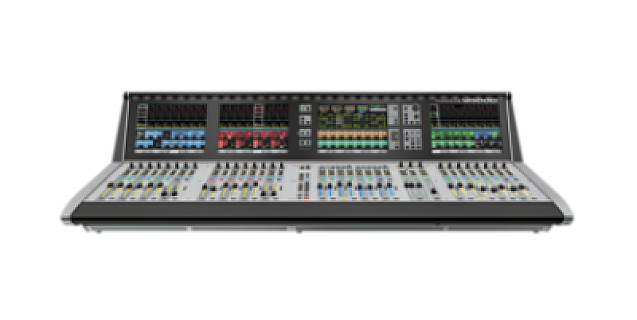

Vi5000

From: SoundcraftIDSUN1-EKQN

The Soundcraft Vi5000 digital mixing console delivers pristine audio quality through ultra-low noise mic preamps and enhanced 40-bit floating point digital audio processing at 48/96kHz. It supports simultaneous mixing of up to 128 inputs and 32 stereo busses using the patented Vistonics interface with FaderGlow technology. Each channel features 4-band parametric EQ, compressor, limiter, gate, and 4 aux send points with flexible pre/post configuration. Integrated processing includes 8 Lexicon multi-FX units and BSS DPR901ii dynamic EQ on every bus output. Networking capabilities encompass Dante, MADI, EtherSound and CobraNet protocols with <2ms latency at 48kHz.

Used Equipment

Vendors

Used Sources

Rental

Vendor Locations

Rental Sources

Product Details

Brand:Soundcraft

Console Configuration:Control Surface, Rack Mixer

Mixing Technology:Digital

Total Input Channels (Analog & Digital):128

Analog Input Channels:128

Digital Input Channels:128

Analog Output Channels:32

Digital Output Channels:128

Mix Buses Stereo:32

Amount of Faders:24

Audio Network Protocol:Dante, CobraNet, EtherSound

Analog Mic/Line Input Channels (Mono):128

Analog Stereo Input Channels:0

Analog Stereo Output Channels:16

Main Bus Format:Left + Right (LR)

Matrix Buses Stereo:32

Audio Console Features:Integrated Effects, Compressor for each channel, Equalizer for each channel, Phantom Power, Motorised Faders, LAN / Ethernet, Rackmount, Remote Controllable, Integrated Multitrack Recording

Aux Sends per Channel:4

Pre/Post Switch per Aux Send:Yes

Aux Buses Mono:0

Aux Buses Stereo:32

VCA/DCA Groups:16

Mute Groups:20

Physical Audio Input Connectors:XLR (3-Pin)

Physical Audio Output Connectors:XLR (3-Pin)

Physical Digital Audio Connectors:Ethernet (RJ45)

Supported Audio Formats:WAV, BWF, AIFF

GUI:Vistonics™ Interface

GPI:8 in, 8 out

Fader Resolution:10-bit

GPI Connector:Yes

Manufacturer Code:Vi5000

Product Series:Vi Series

Power Consumption Typical:300 W

Power Options:100 V, 50 / 60 Hz, 120 V, 60 Hz, 230 V / 240 V, 50 Hz

Optional Accessories:Local Rack hardware, Active Breakout box hardware

All information is provided without warranty. If you find any errors, please let us know using the feedback button.

All information is provided without warranty.

If you find any errors, please let us know using the feedback button.

Brand	Soundcraft
Console Configuration	Control Surface, Rack Mixer
Mixing Technology	Digital
Total Input Channels (Analog & Digital)	128
Analog Input Channels	128
Digital Input Channels	128
Analog Output Channels	32
Digital Output Channels	128
Mix Buses Stereo	32
Amount of Faders	24
Audio Network Protocol	Dante, CobraNet, EtherSound
Analog Mic/Line Input Channels (Mono)	128
Analog Stereo Input Channels	0
Analog Stereo Output Channels	16
Main Bus Format	Left + Right (LR)
Matrix Buses Stereo	32
Audio Console Features	Integrated Effects, Compressor for each channel, Equalizer for each channel, Phantom Power, Motorised Faders, LAN / Ethernet, Rackmount, Remote Controllable, Integrated Multitrack Recording
Aux Sends per Channel	4
Pre/Post Switch per Aux Send	Yes
Aux Buses Mono	0
Aux Buses Stereo	32
VCA/DCA Groups	16
Mute Groups	20
Physical Audio Input Connectors	XLR (3-Pin)
Physical Audio Output Connectors	XLR (3-Pin)
Physical Digital Audio Connectors	Ethernet (RJ45)
Supported Audio Formats	WAV, BWF, AIFF
GUI	Vistonics™ Interface
GPI	8 in, 8 out
Fader Resolution	10-bit
GPI Connector	Yes
Manufacturer Code	Vi5000
Product Series	Vi Series
Power Consumption Typical	300 W
Power Options	100 V, 50 / 60 Hz, 120 V, 60 Hz, 230 V / 240 V, 50 Hz
Optional Accessories	Local Rack hardware, Active Breakout box hardware
