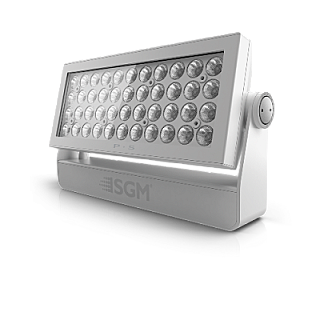

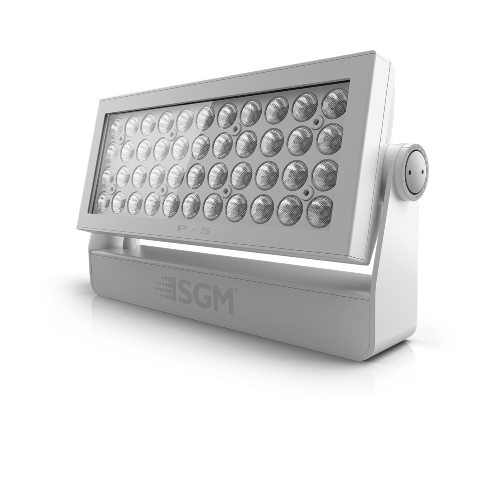

P·5 POI 15°

From: SGMIDSGML-MQ98

SGM P-5 POI is a rugged, IP66-rated RGBW LED wash light for permanent outdoor architectural installations. It produces 20031 lumens using 44 x 10W RGBW LEDs. Native lens angles of 15°, 21°, and 43° provide precise beam control for medium to long throws. The fixture offers a color temperature range of 2000K-10000K with an average CRI of 86, ensuring consistent color rendering. Operating temperature range is -40°C to 50°C. Features include a built-in dehumidifier (C5-M corrosion class), forced-air cooling, and flicker-free dimming. Power input: 208-240 VAC, 450W max consumption.

Used Equipment

Vendors

Used Sources

Rental

Vendor Locations

Rental Sources

Product Details

Brand:SGM

Lighting Fixture Type:Architectural Lighting, Wash Light

Light Source Wattage:440 W

Light Output at Native Colour Temperature:20 031 lm

Light Source Type:Multicolour LEDs

Highest Specified CRI Value:86

Colour Creation Method:LED Colour Creation

Fixture Output Colour Temperature Range:2 000–10 000 K

Beam Angle Options:Variable with Additional Lenses

Beam Angle Range (w/o accessories):14 º

Horizontal Beam Angle Range:14 º

Vertical Beam Angle Range:14 º

Pole Operation:No

IP Rating:IP66

Beam Iris:No

Dimmer Type:Electronically

Silent Operation:No

Video Mapping:No

Control and Communication Standards:DMX512-A, sACN

Application Range:Medium (8 m - 25 m throw)

Housing Colour:White, Other Colours, Black

Manufacturer Code:P·5 POI

Power Consumption Typical:450 W

Power Options:230 V / 240 V, 50 Hz

Weight:8.90 kg

Dimensions

Width:12.20 cm

Length:49.70 cm

Height:26.80 cm

All information is provided without warranty. If you find any errors, please let us know using the feedback button.

All information is provided without warranty.

If you find any errors, please let us know using the feedback button.

Brand	SGM
Lighting Fixture Type	Architectural Lighting, Wash Light
Light Source Wattage	440 W
Light Output at Native Colour Temperature	20 031 lm
Light Source Type	Multicolour LEDs
Highest Specified CRI Value	86
Colour Creation Method	LED Colour Creation
Fixture Output Colour Temperature Range	2 000–10 000 K
Beam Angle Options	Variable with Additional Lenses
Beam Angle Range (w/o accessories)	14 º
Horizontal Beam Angle Range	14 º
Vertical Beam Angle Range	14 º
Pole Operation	No
IP Rating	IP66
Beam Iris	No
Dimmer Type	Electronically
Silent Operation	No
Video Mapping	No
Control and Communication Standards	DMX512-A, sACN
Application Range	Medium (8 m - 25 m throw)
Housing Colour	White, Other Colours, Black
Manufacturer Code	P·5 POI
Power Consumption Typical	450 W
Power Options	230 V / 240 V, 50 Hz
Weight	8.90 kg
Dimensions
Width	12.20 cm
Length	49.70 cm
Height	26.80 cm
