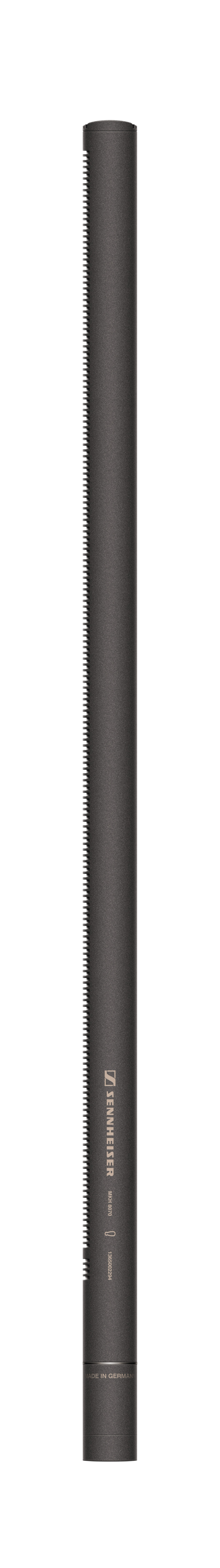

MKH 8070

From: SennheiserIDSENN-V4HN

Long shotgun condenser microphone engineered for professional broadcast and sporting events. Features lobar pickup pattern for extreme directivity and uncolored off-axis sound rejection. Operates with 48V phantom power, 45-20,000 Hz frequency response, 124 dB SPL max sound pressure level, and -24 dBV/Pa sensitivity. Rugged metal housing with Nextel® coating provides weather resistance. Dimensions: 19 mm diameter × 465 mm length. Includes XLR-3M output for balanced audio transmission.

Used Equipment

Vendors

Used Sources

Rental

Vendor Locations

Rental Sources

Product Details

Brand:Sennheiser

Transducer Type:Condenser

Polar Pattern:Lobar / Shotgun

Microphone Form Factor:Shotgun

Frequency Response:45–20 000 Hz

Microphone Connector:XLR 3-Pin

Phantom Power 48 V:Yes

Max. SPL:124 dB

Nominal Impedance (Ohm):25

Manufacturer Code:506 293

Product Series:MKH 8000 Series

Included Accessories:MZX 8000 XLR module, MZQ 8000 clip, MZW 8000 windscreen, case, instruction manual

Optional Accessories:MZE 8015, MZH 8000, MZGE 8000, MZEF 8060, MZT 8001, MZT 8000, MZX 8000, MZE 8060, MZE 8120, MZQ 8000, MZG 8000, MZEF 8030, MZGE 8002, MZW 8000, MZEF 8120, MZQ 8001, MZE 8030, MZL 8010, MZFS 8000, MZF 8000 II, MZS 8000, MZL 8003

Compatible with:MZD 8000 digital module

Weight:0.30 kg

Dimensions

Width:1.90 cm

Length:46.50 cm

Height:8.20 cm

All information is provided without warranty. If you find any errors, please let us know using the feedback button.

All information is provided without warranty.

If you find any errors, please let us know using the feedback button.

Brand	Sennheiser
Transducer Type	Condenser
Polar Pattern	Lobar / Shotgun
Microphone Form Factor	Shotgun
Frequency Response	45–20 000 Hz
Microphone Connector	XLR 3-Pin
Phantom Power 48 V	Yes
Max. SPL	124 dB
Nominal Impedance (Ohm)	25
Manufacturer Code	506 293
Product Series	MKH 8000 Series
Included Accessories	MZX 8000 XLR module, MZQ 8000 clip, MZW 8000 windscreen, case, instruction manual
Optional Accessories	MZE 8015, MZH 8000, MZGE 8000, MZEF 8060, MZT 8001, MZT 8000, MZX 8000, MZE 8060, MZE 8120, MZQ 8000, MZG 8000, MZEF 8030, MZGE 8002, MZW 8000, MZEF 8120, MZQ 8001, MZE 8030, MZL 8010, MZFS 8000, MZF 8000 II, MZS 8000, MZL 8003
Compatible with	MZD 8000 digital module
Weight	0.30 kg
Dimensions
Width	1.90 cm
Length	46.50 cm
Height	8.20 cm
