CCM 8 K

From: SchoepsIDSCHE-UZEP
CCM 8 K

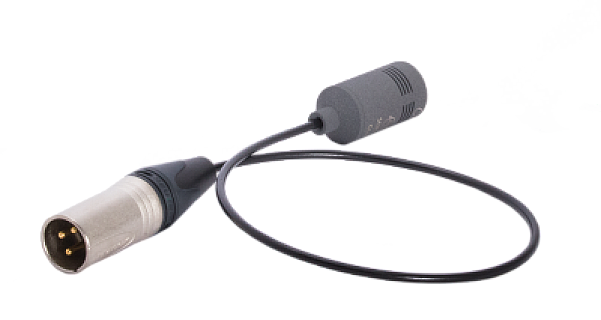

CCM 8 K image 1

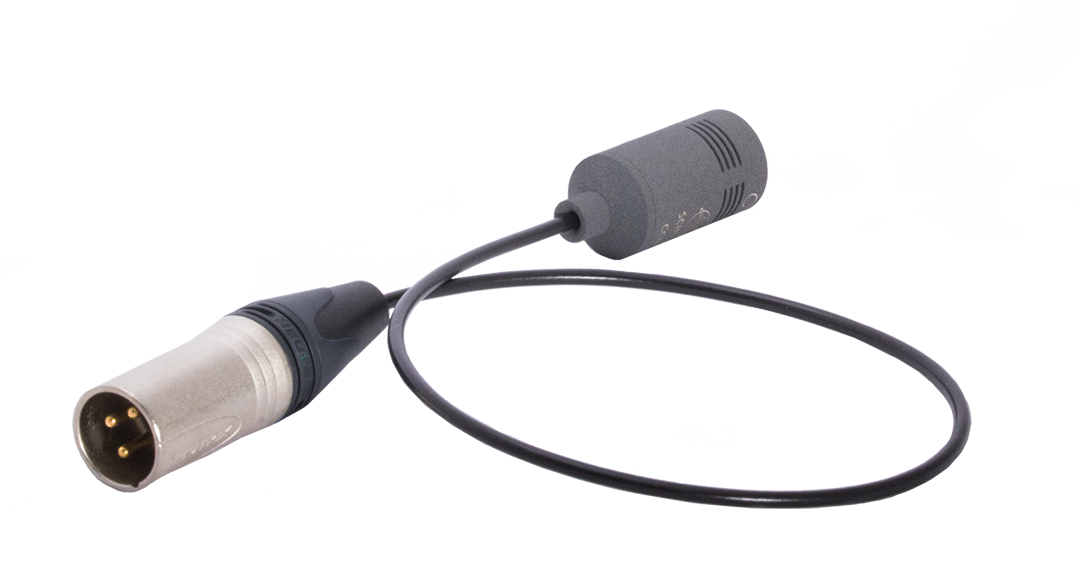

Compact side-addressed condenser microphone featuring a true bidirectional (figure-8) polar pattern with near-ideal consistency across the frequency range. This pressure-gradient transducer provides exceptional performance for MS, Double MS and Blumlein stereo recording applications. Operating frequency range spans 40 Hz to 15 kHz with sensitivity of -38.5 dB (V/Pa). Requires standard 48V phantom power (P48) or 12V phantom power (P12). Compact dimensions of 58 mm length and 20 mm diameter with 43 grams weight make it versatile for professional recording scenarios. The CCM 8 K variant includes permanently attached 5-meter cable with XLR-3M connector.
Used Equipment
0
Vendors
Rental
0
Vendor Locations

Product Details

Brand:Schoeps
Transducer Type:Condenser
Polar Pattern:Bidirectional / Figure-8
Microphone Form Factor:Instrument Clip-On
Frequency Response:40–15 000 Hz
Microphone Connector:XLR 3-Pin
Phantom Power 48 V:Yes
Max. SPL:136 dB
Nominal Impedance (Ohm):90
Manufacturer Code:121 106
Product Series:CCM
Included Accessories:K 5 LU, SGC
Optional Accessories:Matching of two microphone capsules including certificate, custom color options
Weight:0.04 kg

Dimensions

Width:2 cm
Length:5.80 cm
Height:5.80 cm
