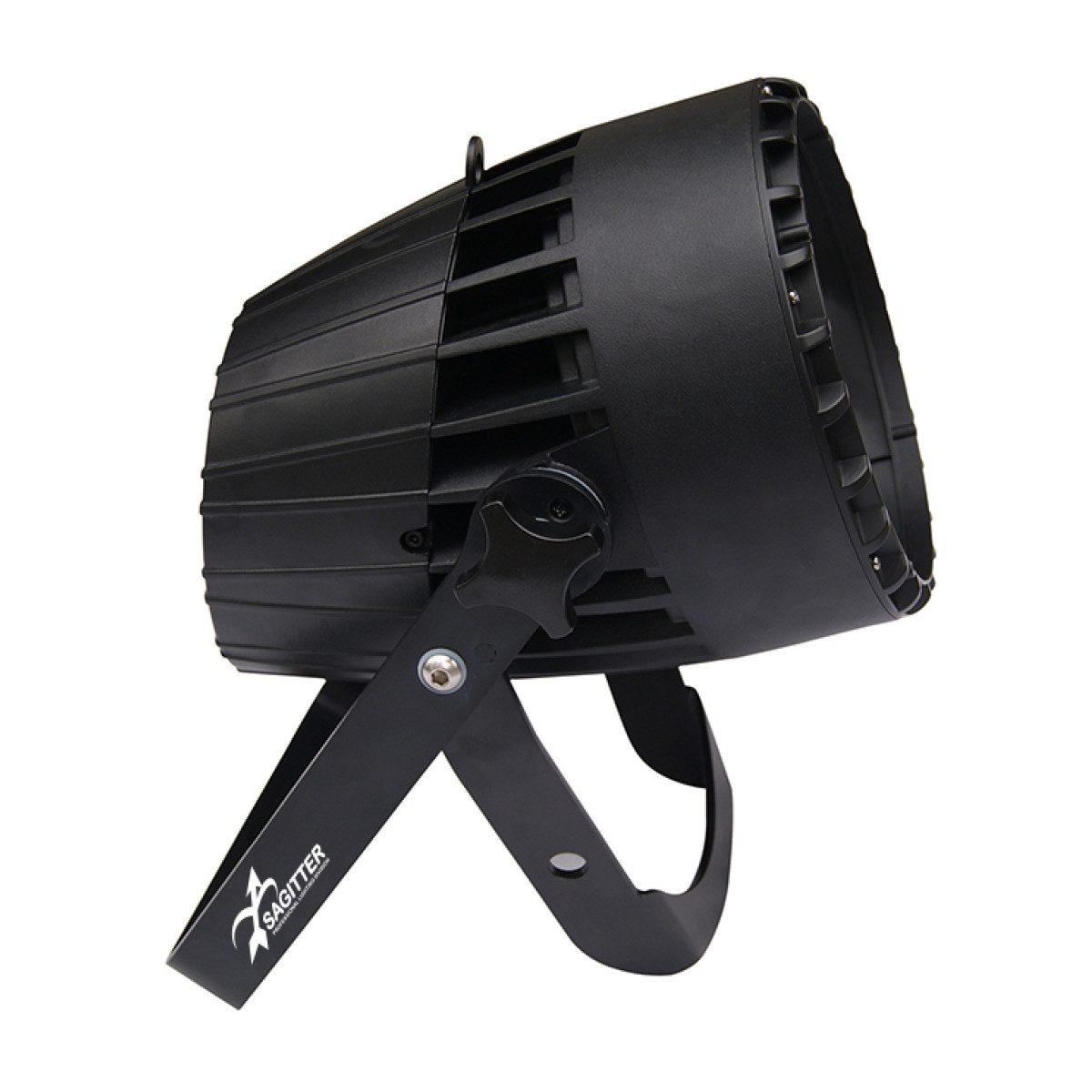

REGOLOHTZ

From: SagitterIDSAGT-21YC

REGOLO HTZ is a moving head projector featuring single lens technology with plano convex terminators for efficient light concentration and natural color pre-mixing. Powered by 12x10W Osram Ostar RGBW/FC LEDs, it delivers accurate color reproduction across the spectrum, including all white color temperatures. The fixture offers electronic zoom (11°-58°) enabling transition from defined beam effects to diffused wash projection. With 7900 lux output at 3m (min zoom), it includes DMX control, master/slave operation, and sound-active modes. Constructed with die-cast aluminum chassis, it features forced-air cooling and POWERCON connectivity.

Used Equipment

Vendors

Used Sources

Rental

Vendor Locations

Rental Sources

Product Details

Brand:Sagitter

Lighting Fixture Type:Wash Light, Lighting Effects

Pan & Tilt Movement:Automated Pan Movement, Automated Tilt Movement

Light Source Wattage:120 W

Light Source Type:Multicolour LEDs

Colour Creation Method:LED Colour Creation

Native Light Source Colour Temperature:3 000–6 500 K

Fixture Output Colour Temperature Range:3 000–6 500 K

Beam Angle Options:Variable

Beam Angle Range (w/o accessories):11–58 º

Horizontal Beam Angle Range:11–58 º

Vertical Beam Angle Range:11–58 º

Pole Operation:No

IP Rating:IP20

Beam Iris:No

Dimmer Type:Electronically

Silent Operation:No

Video Mapping:No

Control and Communication Standards:DMX512-A

Application Range:Medium (8 m - 25 m throw)

Housing Colour:Black

Manufacturer Code:SG REGOLOHTZ

Power Consumption Typical:130 W

Power Options:100 V, 50 / 60 Hz, 120 V, 60 Hz, 230 V / 240 V, 50 Hz

Weight:4.80 kg

Dimensions

Width:26 cm

Length:20.50 cm

Height:32.60 cm

All information is provided without warranty. If you find any errors, please let us know using the feedback button.

All information is provided without warranty.

If you find any errors, please let us know using the feedback button.

Brand	Sagitter
Lighting Fixture Type	Wash Light, Lighting Effects
Pan & Tilt Movement	Automated Pan Movement, Automated Tilt Movement
Light Source Wattage	120 W
Light Source Type	Multicolour LEDs
Colour Creation Method	LED Colour Creation
Native Light Source Colour Temperature	3 000–6 500 K
Fixture Output Colour Temperature Range	3 000–6 500 K
Beam Angle Options	Variable
Beam Angle Range (w/o accessories)	11–58 º
Horizontal Beam Angle Range	11–58 º
Vertical Beam Angle Range	11–58 º
Pole Operation	No
IP Rating	IP20
Beam Iris	No
Dimmer Type	Electronically
Silent Operation	No
Video Mapping	No
Control and Communication Standards	DMX512-A
Application Range	Medium (8 m - 25 m throw)
Housing Colour	Black
Manufacturer Code	SG REGOLOHTZ
Power Consumption Typical	130 W
Power Options	100 V, 50 / 60 Hz, 120 V, 60 Hz, 230 V / 240 V, 50 Hz
Weight	4.80 kg
Dimensions
Width	26 cm
Length	20.50 cm
Height	32.60 cm
