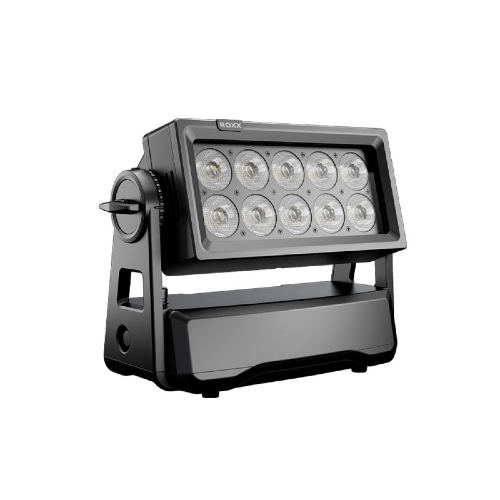

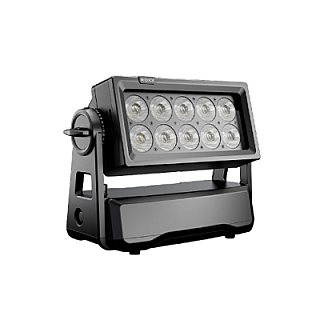

NEO mini

From: ROXXIDRXXG-SPT1

ROXX NEO mini is a high-output wash/flood lighting fixture featuring 10 x 60W RGBL LED modules producing 20,210 lumens at 5600K. With a native 9° beam angle using TIR lens technology and delivering 22,739 lux at 5m, it offers linear CCT control from 2000K to 10,000K with CRI/Ra and TLCI values of 85. IP65-rated for indoor and outdoor applications, it features 16-bit dimming, temperature-regulated cooling with fan-off mode, and wireless control via integrated CRMX and Bluetooth. Dimensions: 36.75 x 26.15 x 17.45 cm, weighing 7.7 kg with yoke.

Used Equipment

Vendors

Used Sources

Rental

Vendor Locations

Rental Sources

Product Details

Brand:ROXX

Lighting Fixture Type:Wash Light, Floodlights

Light Source Wattage:600 W

Light Output at Native Colour Temperature:20 210 lm

Light Source Type:Multicolour LEDs

Highest Specified CRI Value:85

Colour Creation Method:LED Colour Creation

Native Light Source Colour Temperature:2 000–10 000 K

Fixture Output Colour Temperature Range:2 000–10 000 K

Beam Angle Options:Static

Beam Angle Range (w/o accessories):9–16 º

Horizontal Beam Angle Range:9–16 º

Vertical Beam Angle Range:9–16 º

Pole Operation:No

IP Rating:IP65

Beam Iris:No

Dimmer Type:Electronically

Silent Operation:No

Video Mapping:No

Control and Communication Standards:RDM, Art-Net, DMX512-A, sACN

Application Range:Medium (8 m - 25 m throw)

Housing Colour:Black

Manufacturer Code:14 201 001

Power Consumption Typical:674 W

Power Options:100 V, 50 / 60 Hz, 120 V, 60 Hz, 230 V / 240 V, 50 Hz

Weight:7.70 kg

Dimensions

Width:36.75 cm

Length:17.45 cm

Height:26.15 cm

All information is provided without warranty. If you find any errors, please let us know using the feedback button.

All information is provided without warranty.

If you find any errors, please let us know using the feedback button.
