TetraX

From: ROBE LightingIDRBE5-9GAK

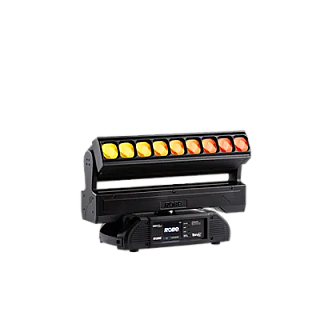

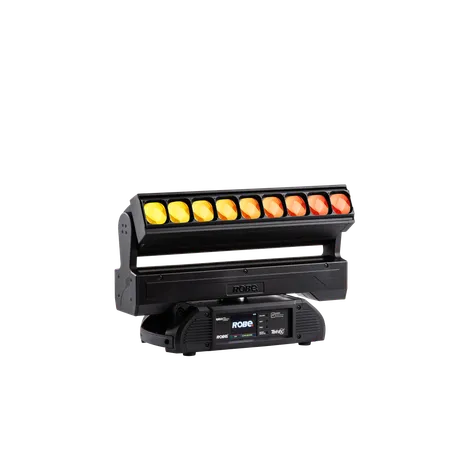

TetraX™ is a high-performance moving head fixture featuring 9x 40W RGBW LED multichips delivering 5,300 lumens (integrating sphere). It offers a 4°-45° zoom range, 540° continuous pan rotation, and 191° tilt movement. The fixture provides RGBW/CMY color mixing with individual pixel control, variable CCT from 2,700K to 8,000K, and proprietary 3x MCFE™ Multi-Coloured Flower Effects. It includes 18-bit electronic dimming (L3™), Epass™ Ethernet pass-through, and supports protocols including DMX512, Art-Net, and sACN. With IP20 rating and 320W maximum power consumption, it measures 51.2x36.8x20.5 cm and weighs 15.7 kg.

Used Equipment

Vendors

Used Sources

Rental

Vendor Locations

Rental Sources

Product Details

Brand:ROBE Lighting

Moving Head Type:Effect, Spot / Profile

Light Source Type:Multicolour LEDs

Light Source Wattage:360 W

Light Output at Native Colour Temperature:5 300 lm

Colour Creation Method:LED Colour Creation

Native Light Source Colour Temperature:2 700–8 000 K

Fixture Output Colour Temperature Range:2 700–8 000 K

Colour Correction :Digital Colour Correction

Beam Angle Range (w/o accessories):4–45 º

IP Rating:IP20

Dimmer Type:Electronically

Strobe Effect Type:Electronically

Beam Iris:No

Silent Operation:No

Video Mapping:No

Application Range:Medium (8 m - 25 m throw), Large (20 m - 40 m throw)

Control and Communication Standards:MIDI, DMX512-A, OSC

Power Consumption Typical:320 W

Power Options:100 V, 50 / 60 Hz, 120 V, 60 Hz, 230 V / 240 V, 50 Hz

Weight:15.70 kg

Dimensions

Width:51.20 cm

Length:20.50 cm

Height:36.80 cm

All information is provided without warranty. If you find any errors, please let us know using the feedback button.

All information is provided without warranty.

If you find any errors, please let us know using the feedback button.

Brand	ROBE Lighting
Moving Head Type	Effect, Spot / Profile
Light Source Type	Multicolour LEDs
Light Source Wattage	360 W
Light Output at Native Colour Temperature	5 300 lm
Colour Creation Method	LED Colour Creation
Native Light Source Colour Temperature	2 700–8 000 K
Fixture Output Colour Temperature Range	2 700–8 000 K
Colour Correction	Digital Colour Correction
Beam Angle Range (w/o accessories)	4–45 º
IP Rating	IP20
Dimmer Type	Electronically
Strobe Effect Type	Electronically
Beam Iris	No
Silent Operation	No
Video Mapping	No
Application Range	Medium (8 m - 25 m throw), Large (20 m - 40 m throw)
Control and Communication Standards	MIDI, DMX512-A, OSC
Power Consumption Typical	320 W
Power Options	100 V, 50 / 60 Hz, 120 V, 60 Hz, 230 V / 240 V, 50 Hz
Weight	15.70 kg
Dimensions
Width	51.20 cm
Length	20.50 cm
Height	36.80 cm
