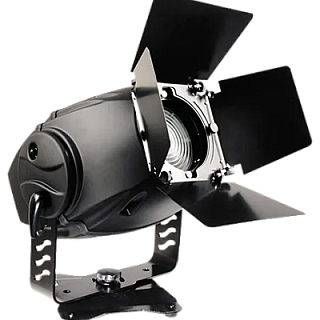

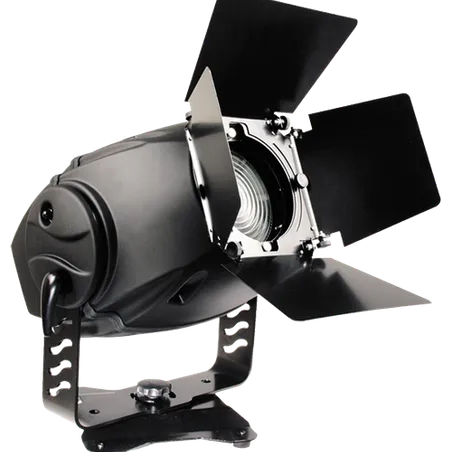

ColorMix 250 AT™ EU

From: ROBE LightingIDRBE5-AC5M

The ColorMix 250 AT is a static colour changer featuring a Fresnel lens, designed for theatrical, TV studio, stage, and architectural lighting applications. It utilizes a Philips MSD 250/2 compact high-pressure metal halide lamp with magnetic ballast. The fixture provides CMY colour mixing (cyan, magenta, yellow) for continuous colour adjustment, complemented by a dedicated colour wheel with six dichroic colours, UV filter, and colour correction filters for 3200 K and 5600 K. An effect wheel includes beam shaping and frost filtering. Manual beam angle adjustment ranges from 8° to 22°. Control is via USITT DMX-512 with RDM support, offering 10 or 11 channels, built-in programs, master/slave, and standalone operation. Mounting options include floor standing with removable stand or wall/ceiling mounting with adjustable bracket. The unit includes a barn door set for beam shaping.

Used Equipment

Vendors

Used Sources

Rental

Vendor Locations

Rental Sources

Product Details

Brand:ROBE Lighting

Lighting Fixture Type:Architectural Lighting, Fresnel Spotlights

Light Source Wattage:250 W

Lamp Model:Philips MSD 250/2

Light Source Type:Discharge Lamp

Colour Creation Method:Fixed Colour Filters, CMY Filter Mixing

Native Light Source Colour Temperature:6 000 K

Fixture Output Colour Temperature Range:3 000–6 000 K

Beam Angle Options:Variable

Beam Angle Range (w/o accessories):8–22 º

Horizontal Beam Angle Range:8–22 º

Vertical Beam Angle Range:8–22 º

Pole Operation:No

IP Rating:IP20

Frost Effects:1 Frost Effect

No. of Fixed Colour Filters:6

No. of Fixed Colour Wheels:1

No. of Effects-Wheels:1

Framing / Beam Shaping Module:Manual Framing Operation

Beam Iris:No

Dimmer Type:Electronically

Silent Operation:No

Video Mapping:No

Control and Communication Standards:DMX512-A, sACN

Application Range:Medium (8 m - 25 m throw)

Manufacturer Code:ColorMix 250 AT

Power Consumption Typical:390 W

Power Options:230 V / 240 V, 50 Hz

Weight:17.50 kg

Dimensions

Width:40.90 cm

Length:37.70 cm

Height:35.30 cm

All information is provided without warranty. If you find any errors, please let us know using the feedback button.

All information is provided without warranty.

If you find any errors, please let us know using the feedback button.

Brand	ROBE Lighting
Lighting Fixture Type	Architectural Lighting, Fresnel Spotlights
Light Source Wattage	250 W
Lamp Model	Philips MSD 250/2
Light Source Type	Discharge Lamp
Colour Creation Method	Fixed Colour Filters, CMY Filter Mixing
Native Light Source Colour Temperature	6 000 K
Fixture Output Colour Temperature Range	3 000–6 000 K
Beam Angle Options	Variable
Beam Angle Range (w/o accessories)	8–22 º
Horizontal Beam Angle Range	8–22 º
Vertical Beam Angle Range	8–22 º
Pole Operation	No
IP Rating	IP20
Frost Effects	1 Frost Effect
No. of Fixed Colour Filters	6
No. of Fixed Colour Wheels	1
No. of Effects-Wheels	1
Framing / Beam Shaping Module	Manual Framing Operation
Beam Iris	No
Dimmer Type	Electronically
Silent Operation	No
Video Mapping	No
Control and Communication Standards	DMX512-A, sACN
Application Range	Medium (8 m - 25 m throw)
Manufacturer Code	ColorMix 250 AT
Power Consumption Typical	390 W
Power Options	230 V / 240 V, 50 Hz
Weight	17.50 kg
Dimensions
Width	40.90 cm
Length	37.70 cm
Height	35.30 cm
