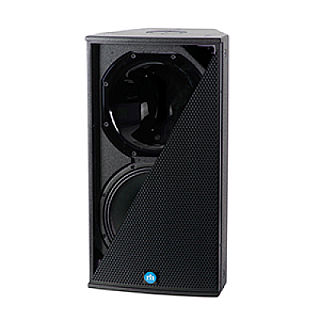

CF121-2

From: Renkus-HeinzIDRENK-FGCQ

Two-way complex conic loudspeaker system featuring a 12-inch heavy duty woofer and 2-inch titanium HF driver. Provides full-range ±3 dB performance from 70 Hz to 18 kHz with built-in crossover including EQ and high frequency protection. Designed for permanent installations and portable applications in houses of worship, schools, performing arts centers, and rental A/V systems. Compact design with 90° x 60° dispersion pattern and PF1-200 Series Intelligent Amplification delivering 200W program power.

Used Equipment

Vendors

Used Sources

Rental

Vendor Locations

Rental Sources

Product Details

Brand:Renkus-Heinz

Audio Speaker Type:Point Source Loudspeakers, Full-Range Speakers, Installation Loudspeakers

Amplification Type:Active / Self-Powered

Max. SPL:124 dB

Nominal Horizontal Coverage:90 º

Nominal Vertical Coverage:60 º

LF Driver Diameter:12 "

Amount of LF Speakers:1

Audio Network Protocol:None

Cardioid Capability:No

Audio Speaker Features:Onboard DSP, Rotatable Horn

Amount of Speakers in Device:2

Components:12-inch woofer + 2-inch titanium HF driver

RMS Power Handling:250 W

Frequency Response:70–18 000 Hz

Nominal Impedance (Ohm):4

Power Options for Active Speakers:120 V, 60 Hz, 230 / 240 V, 50 Hz

Speaker Mounting Options:Ground Stacked, Pole Mounted, M10 Points

Housing Colour:White, Black

Cabinet Construction:Hardwood enclosure with perforated metal grille

Power Options:120 V, 60 Hz, 230 V / 240 V, 50 Hz

IP Rating:IP20

Manufacturer Code:CF121-2

Product Series:CF Series

Optional Accessories:Omnimount attachment plate; weather-resistant treatment

Compatible with:PF1-200 Series Intelligent Amplification

Weight:24.70 kg

Dimensions

Width:40 cm

Length:36.80 cm

Height:58.70 cm
