VSA 2050 II Custom color

From: RCFIDRCFM-F734

VSA 2050 II Custom color

From: RCFIDRCFM-F734

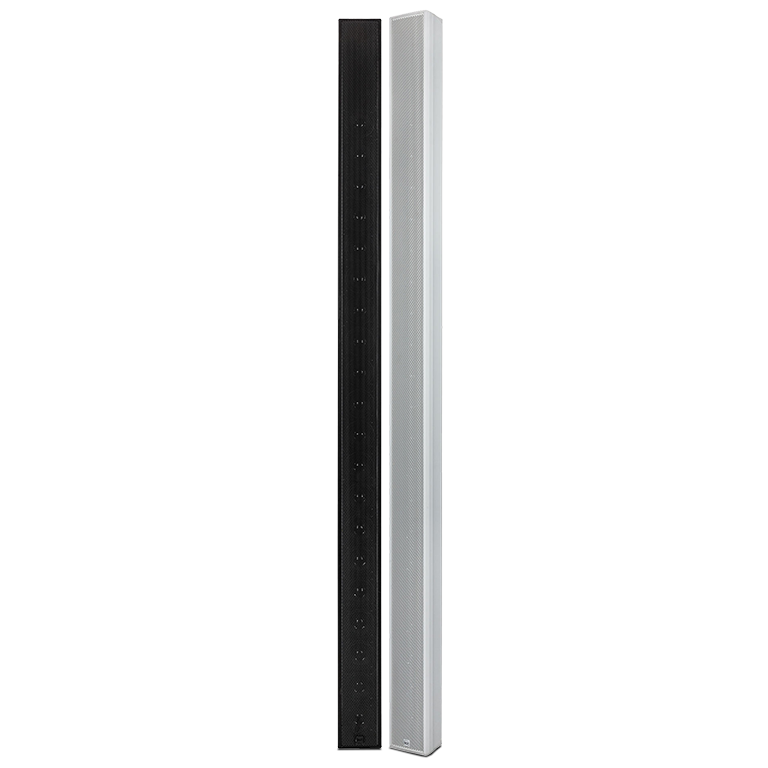

The VSA 2050 II is a digitally steerable column speaker featuring 20 x 3.5" neodymium full-range drivers with individual 50 W Class D amplification. It delivers 96 dB maximum SPL at 30 meters with precise vertical beam control (0° to -40°) and 130° horizontal coverage. Incorporating 48 kHz/32-bit DSP processing and RDNet network integration, it optimizes speech intelligibility in high-reverberation environments by directing sound exclusively to listening areas. The extruded aluminum cabinet with optional custom coloring ensures architectural integration in permanent installations.

Used Equipment

Vendors

Used Sources

Rental

Vendor Locations

Rental Sources

Product Details

Brand:RCF

Audio Speaker Type:Column Loudspeakers (Line Radiators), Installation Loudspeakers

Amplification Type:Active / Self-Powered

Max. SPL:96 dB

Nominal Horizontal Coverage:130 º

Nominal Vertical Coverage:30 º

LF Driver Diameter:3.50 "

Amount of LF Speakers:20

Physical Digital Audio Connectors:Ethernet (RJ45)

Audio Network Protocol:None

Cardioid Capability:No

Audio Speaker Features:Onboard DSP

Amount of Speakers in Device:20

Components:20 x 3.5" neodymium drivers with 1.0" voice coils

RMS Power Handling:650 W

Frequency Response:100–18 000 Hz

Power Options for Active Speakers:120 V, 60 Hz, 230 / 240 V, 50 Hz

Speaker Mounting Options:Other Rigging Methods

Housing Colour:Other Colours

Cabinet Construction:Extruded aluminum

Power Options:120 V, 60 Hz, 230 V / 240 V, 50 Hz

IP Rating:IP20

Manufacturer Code:13 100 024

Product Series:VSA II

Optional Accessories:Swivel wall mount brackets, VSA Smart RC remote control, TA1000 VSA 100V transformer

Included Accessories:Wall mounting flanges

Compatible with:RDNet

Weight:20 kg

Dimensions

Width:12.50 cm

Length:9.70 cm

Height:207 cm

All information is provided without warranty. If you find any errors, please let us know using the feedback button.

All information is provided without warranty.

If you find any errors, please let us know using the feedback button.
