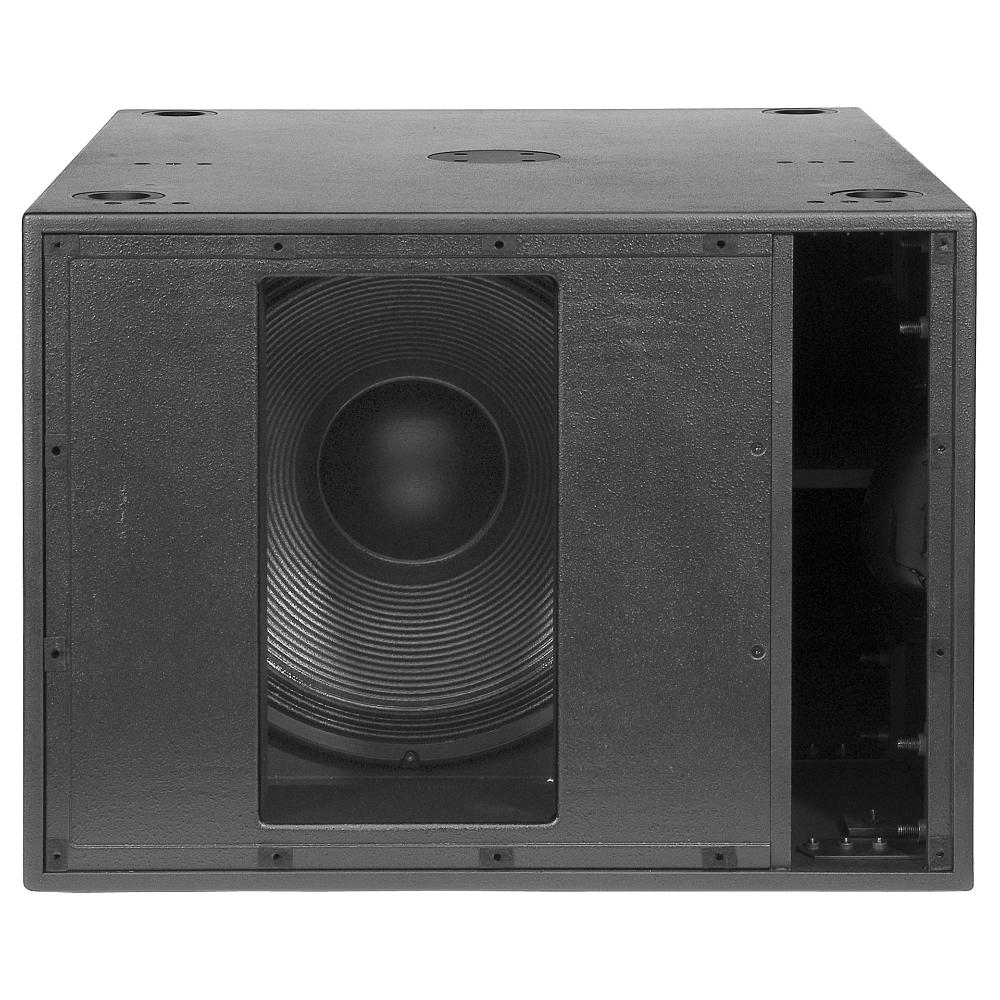

TTS 18-A 115V

From: RCFIDRCFM-M1JM

The TTS 18-A is a compact active high-power subwoofer featuring a 1000W RMS digital amplifier and a lightweight 18" neodymium transducer with 100mm voice coil. Its bandpass design achieves maximum low-frequency output per size (36Hz–120Hz range, 136dB SPL @1m) while minimizing weight (59 kg). Constructed with Baltic birch plywood and steel grille, it includes analog XLR I/O, Powercon power connections, and onboard DSP for crossover control (80/110Hz). Ideal for integration with TT+ touring systems via pole-mount or ground stacking.

Used Equipment

Vendors

Used Sources

Rental

Vendor Locations

Rental Sources

Product Details

Brand:RCF

Audio Speaker Type:Subwoofers

Amplification Type:Active / Self-Powered

Max. SPL:136 dB

LF Driver Diameter:18 "

Amount of LF Speakers:1

Physical Digital Audio Connectors:XLR (3-pin)

Audio Network Protocol:None

Cardioid Capability:No

Audio Speaker Features:Onboard DSP

Amount of Speakers in Device:1

Components:1 × 18-inch neodymium woofer with 4-inch voice coil

RMS Power Handling:1 000 W

Frequency Response:36–120 Hz

Power Options for Active Speakers:120 V, 60 Hz

Speaker Mounting Options:Ground Stacked, Pole Mounted

Housing Colour:Black

Cabinet Construction:Baltic birch plywood

Power Options:120 V, 60 Hz

IP Rating:IP20

Manufacturer Code:13 000 103

Product Series:TT+

Optional Accessories:PM-KIT M20, AC PMX, AC XLR 3M3F, WH PRO 4X, CVR TTS 18

Compatible with:TT+ two-way systems

Weight:59 kg

Dimensions

Width:70 cm

Length:86 cm

Height:52 cm

All information is provided without warranty. If you find any errors, please let us know using the feedback button.

All information is provided without warranty.

If you find any errors, please let us know using the feedback button.

Brand	RCF
Audio Speaker Type	Subwoofers
Amplification Type	Active / Self-Powered
Max. SPL	136 dB
LF Driver Diameter	18 "
Amount of LF Speakers	1
Physical Digital Audio Connectors	XLR (3-pin)
Audio Network Protocol	None
Cardioid Capability	No
Audio Speaker Features	Onboard DSP
Amount of Speakers in Device	1
Components	1 × 18-inch neodymium woofer with 4-inch voice coil
RMS Power Handling	1 000 W
Frequency Response	36–120 Hz
Power Options for Active Speakers	120 V, 60 Hz
Speaker Mounting Options	Ground Stacked, Pole Mounted
Housing Colour	Black
Cabinet Construction	Baltic birch plywood
Power Options	120 V, 60 Hz
IP Rating	IP20
Manufacturer Code	13 000 103
Product Series	TT+
Optional Accessories	PM-KIT M20, AC PMX, AC XLR 3M3F, WH PRO 4X, CVR TTS 18
Compatible with	TT+ two-way systems
Weight	59 kg
Dimensions
Width	70 cm
Length	86 cm
Height	52 cm
