SUB 702-AS MK3 220-240V

From: RCFIDRCFM-G8KP

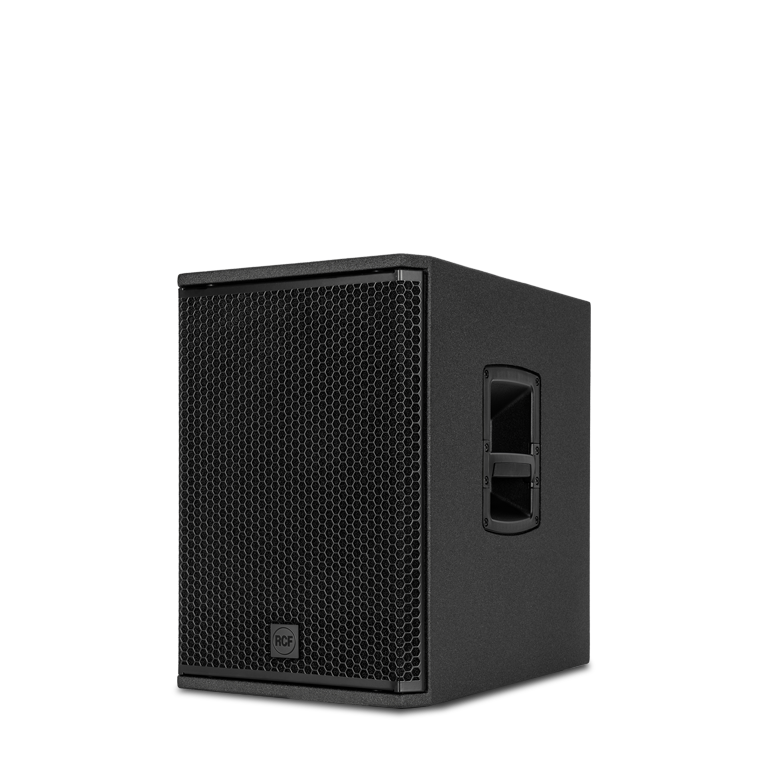

SUB 702-AS MK3 220-240V

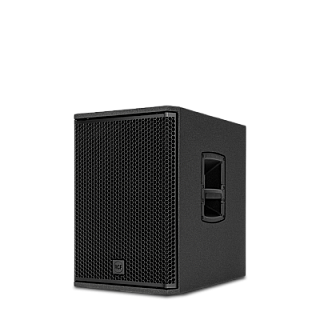

SUB 702-AS MK3 220-240V image 1
The SUB 702-AS MK3 is a portable 12" active subwoofer featuring a 1400W Class-D amplifier with 700W RMS power handling. It delivers sound pressure levels up to 129 dB at 1m with a frequency response of 40-120 Hz. The bass reflex design incorporates a single 12" woofer with 2.5" voice coil and Bass Motion Control technology for optimized low-frequency excursion management. It includes stereo XLR inputs/outputs, switchable crossover frequencies (80/120 Hz), polarity reverse switch, and electronic equalization. The rugged Baltic birch plywood cabinet features polyurea coating, steel grille, and M20 pole mount. Weighing 21.5 kg, it's designed for small to mid-sized venues with dimensions of 52.3 × 36.0 × 51.5 cm.
Used Equipment
0
Vendors
Rental
0
Vendor Locations

Product Details

Brand:RCF
Audio Speaker Type:Subwoofers
Amplification Type:Active / Self-Powered
Max. SPL:129 dB
LF Driver Diameter:12 "
Amount of LF Speakers:1
Physical Digital Audio Connectors:XLR (3-pin)
Audio Network Protocol:None
Cardioid Capability:No
Audio Speaker Features:Onboard DSP
Amount of Speakers in Device:1
Components:12'' woofer, bass reflex housing
RMS Power Handling:700 W
Frequency Response:40–120 Hz
Power Options for Active Speakers:230 / 240 V, 50 Hz
Speaker Mounting Options:Ground Stacked, Pole Mounted
Housing Colour:Black
Typical Power Consumption of Active Speakers:700 W
Cabinet Construction:Baltic birch plywood with polyurea coating
Power Consumption Typical:700 W
Power Options:230 V / 240 V, 50 Hz
IP Rating:IP20
Manufacturer Code:13 000 818
Product Series:SUB 7
Optional Accessories:PM-KIT M20 (Pole Mount), CVR 005 (Protection Cover)
Weight:21.50 kg

Dimensions

Width:36 cm
Length:51.50 cm
Height:52.30 cm
