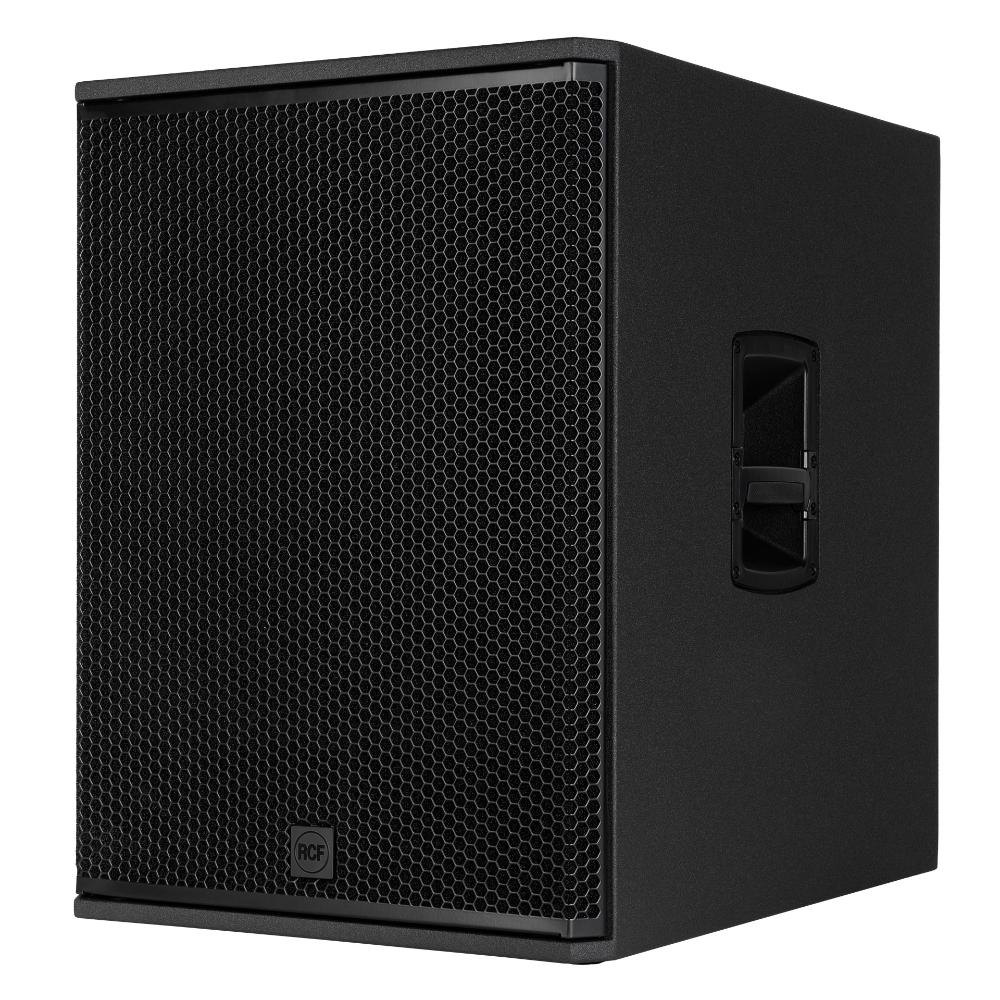

SUB 18-AS 100-120V
From: RCFIDRCFM-4TTT
SUB 18-AS 100-120V
From: RCFIDRCFM-4TTT
The SUB 18-AS is a portable 18" high-power active subwoofer for live sound applications featuring a 2200W Class-D amplifier delivering up to 135 dB SPL. It incorporates Bass Motion Control algorithm for extended bass response without affecting woofer stability, with frequency response from 35 Hz to 400 Hz. The rugged Baltic birch plywood cabinet features polyurea coating, ergonomic handles, and M20 pole mount options. Connection options include mono/stereo XLR/TRS inputs with crossover outputs. Designed as a companion for 10"-15" loudspeakers, it offers volume, polarity, and low-pass frequency controls for versatile deployment in small to mid-sized venues.
Product Details
Brand:RCF
Audio Speaker Type:Subwoofers
Amplification Type:Active / Self-Powered
Max. SPL:135 dB
LF Driver Diameter:18 "
Amount of LF Speakers:1
Audio Network Protocol:None
Cardioid Capability:No
Audio Speaker Features:Onboard DSP
Amount of Speakers in Device:1
Components:One 18" woofer with 4.0" voice coil
RMS Power Handling:2 200 W
Frequency Response:35–400 Hz
Power Options for Active Speakers:100 V, 50/60 Hz, 120 V, 60 Hz
Speaker Mounting Options:Ground Stacked, Pole Mounted
Housing Colour:Black
Typical Power Consumption of Active Speakers:2 200 W
Cabinet Construction:Baltic birch plywood with polyurea coating
Power Consumption Typical:2 200 W
Power Options:100 V, 50 / 60 Hz, 120 V, 60 Hz
IP Rating:IP20
Manufacturer Code:13 000 788
Optional Accessories:PM-KIT M20 pole mount, CVR 003 protection cover, WH PRO 4X swivel wheels kit
Weight:44.50 kg
Dimensions
Width:50.50 cm
Length:68.50 cm
Height:69.30 cm
