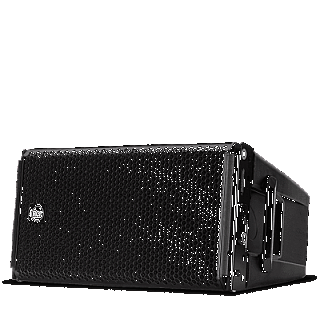

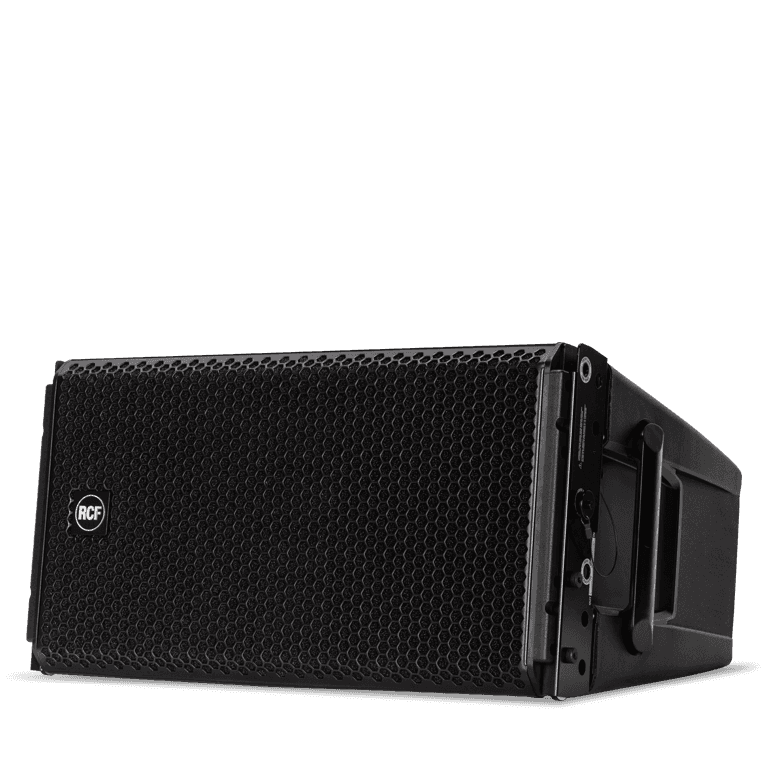

HDL 28-A

From: RCFIDRCFM-R7AX

The RCF HDL 28-A is a compact bi-amped 2-way active line array module designed for touring applications both indoors and outdoors, with emphasis on vocal intelligibility. It features two 8-inch neodymium woofers with 2.5-inch voice coils and a 1.4-inch titanium compression driver with 3.0-inch voice coil. The built-in 2200W Class-D amplifier delivers 1100W RMS power with 48 kHz, 32-bit DSP processing and FiRPHASE technology. With a frequency response of 50 Hz - 20,000 Hz and 135 dB maximum SPL, it offers 100° horizontal and 15° vertical coverage. The PP composite cabinet weighs 20.6 kg and includes RDNet networked management for system control.

Used Equipment

Vendors

Used Sources

Rental

Vendor Locations

Rental Sources

Product Details

Brand:RCF

Audio Speaker Type:Line Array Modules / Tops, Full-Range Speakers

Amplification Type:Active / Self-Powered

Max. SPL:135 dB

Nominal Horizontal Coverage:100 º

Nominal Vertical Coverage:15 º

LF Driver Diameter:8 "

Amount of LF Speakers:2

Physical Digital Audio Connectors:Ethernet (RJ45), XLR (3-pin)

Audio Network Protocol:Dante, Ravenna

Cardioid Capability:No

Audio Speaker Features:Onboard DSP

Amount of Speakers in Device:3

Components:2 x 8'' neodymium woofers with 2.5'' voice coils, 1 x 1.4'' titanium compression driver with 3.0'' voice coil

RMS Power Handling:1 100 W

Frequency Response:50–20 000 Hz

Power Options for Active Speakers:100 V, 50/60 Hz, 120 V, 60 Hz, 230 / 240 V, 50 Hz

Speaker Mounting Options:Ground Stacked, Array Frame Compatible, Flyware Compatible

Housing Colour:White, Black

Typical Power Consumption of Active Speakers:1 100 W

Cabinet Construction:PP Composite

Power Consumption Typical:1 100 W

Power Options:100 V, 50 / 60 Hz, 120 V, 60 Hz

IP Rating:IP20

Manufacturer Code:HDL 28-A

Product Series:HDL

Optional Accessories:AZIMUT BRACKETS, FLY BARS, QUICK LOCK PINS, STACKING KITS, COVERS, RAIN PROTECTIONS, KART WITH WHEELS, CABLES

Compatible with:HDL 36-AS

Weight:20.60 kg

Dimensions

Width:56.90 cm

Length:49.10 cm

Height:29.40 cm
