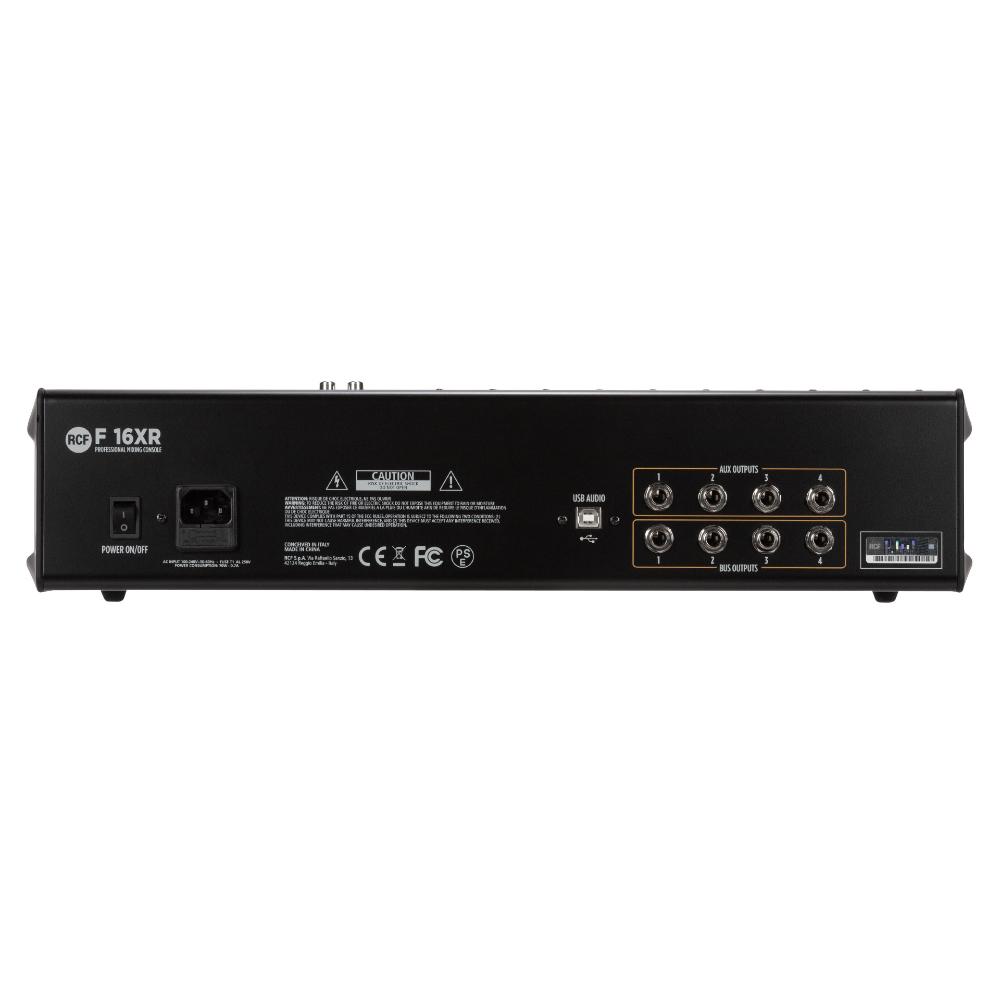

F 16XR

From: RCFIDRCFM-S71P

The RCF F 16XR is a 16-channel analog mixing console featuring 10 mic preamp inputs with +48V phantom power and 8 mono line inputs. It includes 4 stereo line inputs, onboard PRO DSP FX with 16 professional presets including reverbs, delays, and modulation effects. The mixer provides six single-control compressors for channels 1-6, three-band semi-parametric EQ per channel, and 60mm faders. It features balanced main output (+28dBu), four aux sends (two pre, one pre/post, one post), dual stereo output busses, and four group outputs. An integrated USB audio interface enables 2-channel recording/playback at 44.1/48.0 kHz sample rates. The unit measures 479×406×107mm and weighs 6.4kg with internal universal power supply (100-240V).

Used Equipment

Vendors

Used Sources

Rental

Vendor Locations

Rental Sources

Product Details

Brand:RCF

Console Configuration:Integrated Console

Total Input Channels (Analog & Digital):16

Analog Input Channels:26

Digital Input Channels:2

Analog Output Channels:9

Digital Output Channels:2

Mix Buses Mono:0

Mix Buses Stereo:1

Amount of Faders:17

Audio Network Protocol:Dante

Analog Stereo Input Channels:4

Analog Stereo Output Channels:3

Main Bus Format:Left + Right (LR)

Phono Input Channels (Stereo):0

Matrix Buses Stereo:0

Audio Console Features:Integrated Effects, Compressor for each channel, Equalizer for each channel, Phantom Power, USB Audio Interface, Integrated Multitrack Recording

Aux Sends per Channel:4

Pre/Post Switch per Aux Send:Yes

Aux Buses Mono:4

Aux Buses Stereo:0

VCA/DCA Groups:4

Mute Groups:0

Physical Audio Input Connectors:XLR (3-Pin), 6,3 mm TRS Jack, RCA (Cinch)

Physical Audio Output Connectors:XLR (3-Pin), 6,3 mm TRS Jack

Physical Digital Audio Connectors:RCA / Cinch

Matrix Buses Mono:0

Supported Audio Formats:WAV, AIFF

GPI Connector:No

Redundant Power Supply:No

Manufacturer Code:17 140 091

Product Series:F Series

Power Consumption Typical:30 W

Power Options:100 V, 50 / 60 Hz, 120 V, 60 Hz, 230 V / 240 V, 50 Hz

Optional Accessories:BG F 16XR Padded Duffle Bag

Weight:6.40 kg

Dimensions

Width:47.90 cm

Length:40.60 cm

Height:10.70 cm
