Rigging Tower S36V

From: ProlyteIDPRYT-GS36

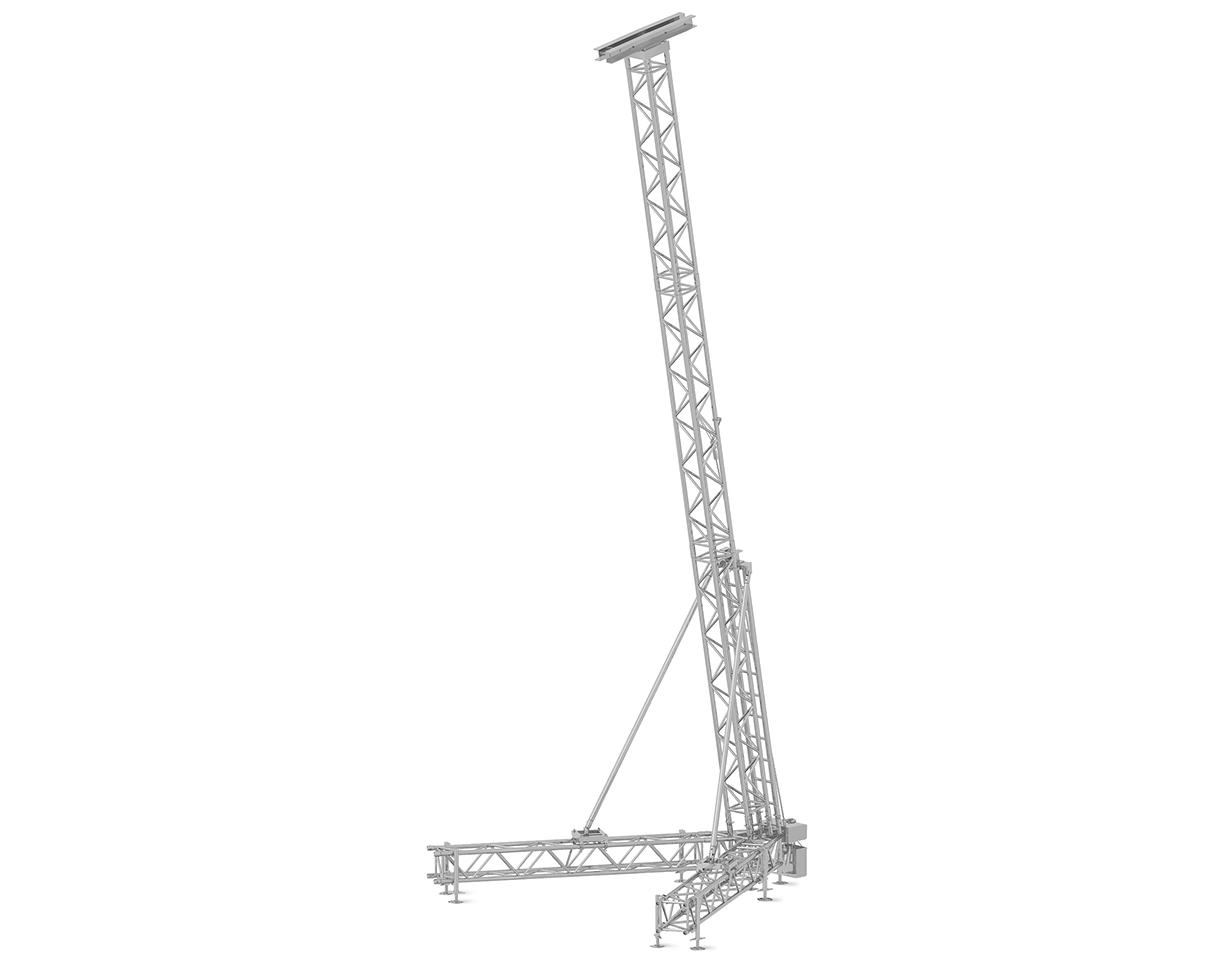

Rigging Tower S36V

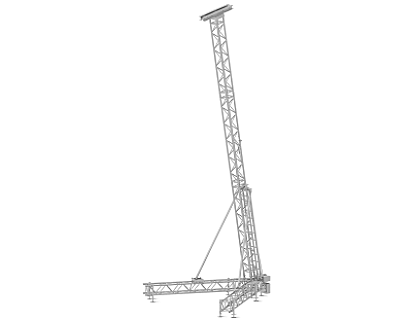

Rigging Tower S36V image 1
The medium-duty Rigging Tower S36V features a loading capacity of 1000 kg and maximum lifting height of 9.25 meters. Constructed using S36V truss with 60 mm tube stabilizers, this tower system has a self-weight of 415 kg. Its V-shaped base incorporates level-adjustable legs with screw jacks, allowing for stable positioning on uneven surfaces. The mast can be efficiently built and erected using hinges on the base corners, with stabilization provided by braces that attach to the legs. After leveling and applying the required 480 kg ballast, loads can be securely hoisted. The system's compact design makes it ideal for diverse applications including outdoor events, concerts, shopping malls, exhibition halls, venues, and theme parks, with an operational maximum windspeed tolerance of 20.7 m/s.
Used Equipment
0
Vendors
Rental
0
Vendor Locations

Product Details

Brand:Prolyte
Load Capacity:1 000 kg
Truss Material:Aluminium
Max Height:9.46 m
Maximum Load capacity:1 000 kg
Truss Connector Type:Manufacturer-Specific
Weight:415 kg
Product Series:S36

Dimensions

Width:35.90 cm
Length:35.90 cm
Height:946 cm
Included Accessories:V-shaped base with leveling screw jacks, hinges, and stabilizing braces
Optional Accessories:Additional height configurations
Manufacturer Code:112 140 013
Base Features:V-shaped base with leveling screw jacks
Main Chords:50 x 4 mm
Diagonals :25 x 3 mm
Certification:CE
Safety System:Screw jack leveling system, brace stabilization, load monitoring per specifications
Base Material:Aluminium
Tower Material :Aluminium
Kit-Components:V-shaped base, mast sections, stabilizing braces, leveling screw jacks
