PDI 06 L 08

From: PalmerIDPALM-19VZ
PDI 06 L 08
PDI 06 L 08 image 1

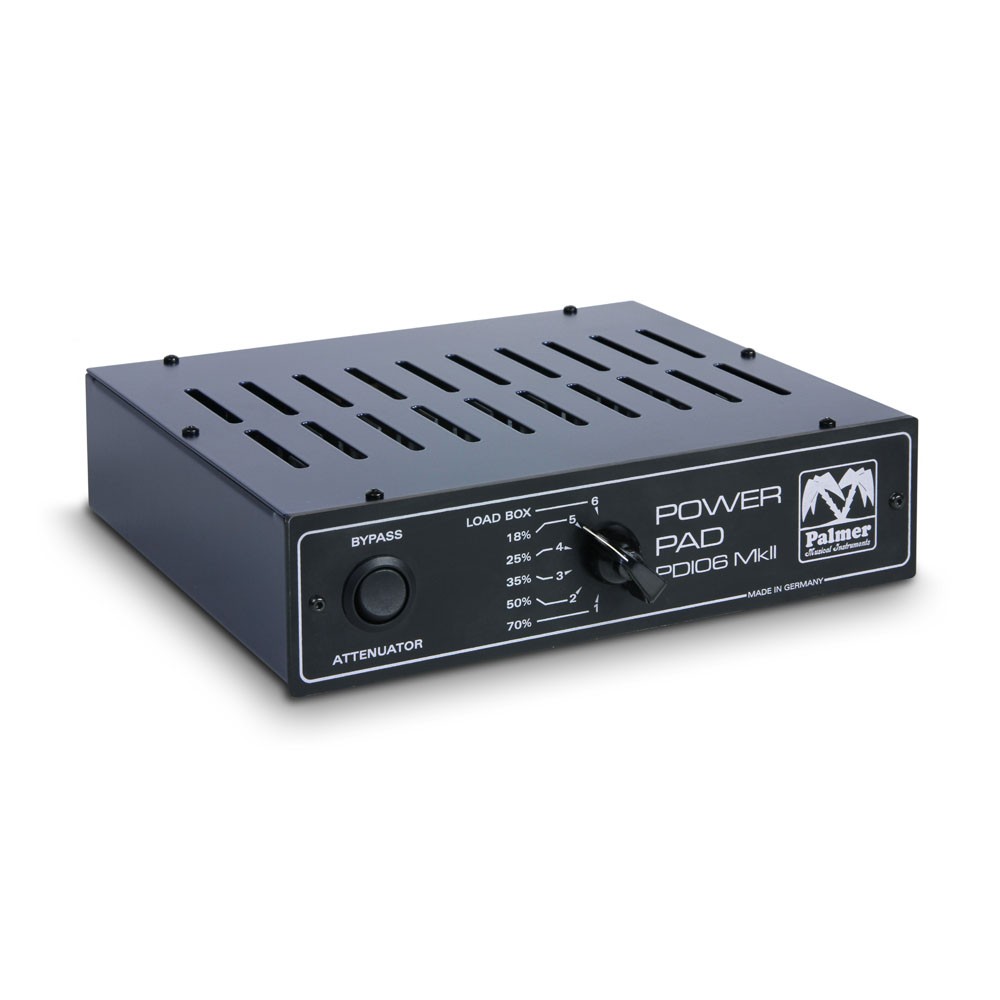

The Palmer PDI 06 L 08 is an 8-ohm power attenuator designed for guitar amplifiers. It connects between the amplifier output and speaker cabinet, enabling volume reduction while preserving tube amp power stage distortion. The device provides six attenuation levels from 100% to 18% for practical stage and practice applications, plus a mute position that functions as a load box absorbing the amplifier's full output. With a maximum power handling of 120W, it features one unbalanced 6.3mm input and two unbalanced 6.3mm outputs for speaker cabinet connections. Constructed from sheet steel and aluminum with powder-coated/anodized finish, it measures 120x120x50mm and weighs 2.4kg. The PDI 06 L 08 allows musicians to achieve desired tube amp characteristics at reduced volume levels.
Used Equipment
0
Vendors
Rental
0
Vendor Locations

Product Details

Brand:Palmer
Signal Distribution & Interface Device Type:Audio Splitter
Analog Input Channels:1
Analog Output Channels:2
Audio Network Protocol:None
PoE (Power over Ethernet):No
Transformer Isolated:No
Total Input Channels (Analog & Digital):1
Physical Audio Input Connectors:6,3 mm TRS Jack
Physical Audio Output Connectors:6,3 mm TRS Jack
Product Series:Palmer Guitar Tools
Manufacturer Code:PDI06L08
Control Methods:Rotary attenuation switch and bypass
Power Consumption Typical:0 W
Weight:2.40 kg

Dimensions

Width:12 cm
Length:12 cm
Height:5 cm
