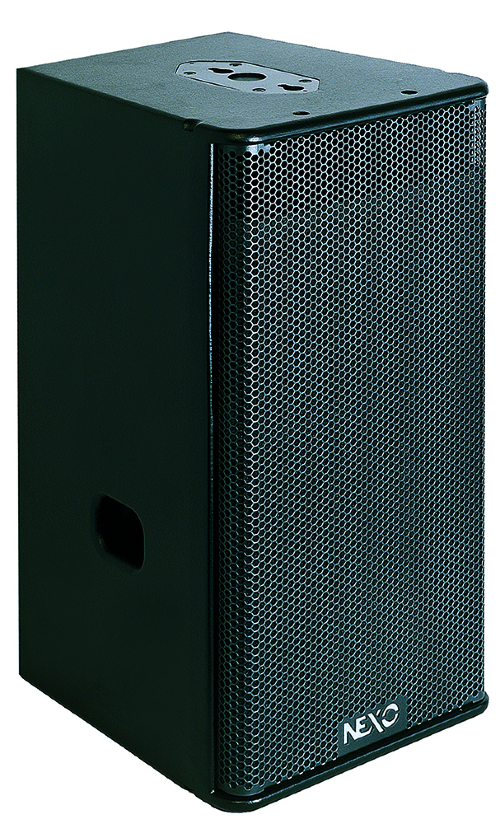

GEO S1210

From: NEXOIDNEXW-F7X5

The Nexo GEO S1210 is a compact, 2-way passive line array module featuring a 12" (30cm) front-firing neodymium LF driver and a 3" voice coil HF driver on a 5° hyperboloid reflective wavesource. With a nominal sensitivity of 103dB SPL (1W @1m), it delivers exceptional mid-to-low frequency output. The unique Hyperboloid Reflective Wavesource enables coherent wavefront propagation in vertical or horizontal arrays. Dispersion is configurable at 80° or 120° in the horizontal plane, with precise 10° vertical coverage in single-source mode. Frequency response spans 53Hz–19kHz ±3dB. The trapezoidal cabinet (10° angle) measures 34.4×67.4×37.8cm and weighs 28.05kg, featuring an integral rigging system with angle adjustments from 0.20° to 10°.

Used Equipment

Vendors

Used Sources

Rental

Vendor Locations

Rental Sources

Product Details

Brand:NEXO

Audio Speaker Type:Line Array Modules / Tops, Installation Loudspeakers

Amplification Type:Passive

Nominal Horizontal Coverage:120 º

Nominal Vertical Coverage:10 º

LF Driver Diameter:12 "

Amount of LF Speakers:1

Audio Network Protocol:EtherSound

Cardioid Capability:No

Amount of Speakers in Device:2

Components:HF: 1x 3" voice coil, 1.4" throat 16Ω driver on a 5° hyperboloid reflective wavesource. MF/LF (front-firing): 1x 12" (30cm) high excursion neodymium 16Ω driver.

Frequency Response:53–19 000 Hz

Nominal Impedance (Ohm):16

Speaker Mounting Options:Array Frame Compatible, Flyware Compatible

Housing Colour:Black

Cabinet Construction:Baltic Birch plywood with structured black coating; molded dark grey metal grille.

IP Rating:IP20

Manufacturer Code:GEO S1210

Product Series:GEO S

Optional Accessories:RS18 subwoofer

Included Accessories:Array assembly system

Compatible with:NEXO NX242 TDcontroller, NEXO GEO S12 Series TDcontrollers, NS-1 array software

Weight:28.05 kg

Dimensions

Width:67.40 cm

Length:37.80 cm

Height:34.40 cm
