MM 225
From: Microtech GefellIDMCRT-E22F
MM 225
From: Microtech GefellIDMCRT-E22F

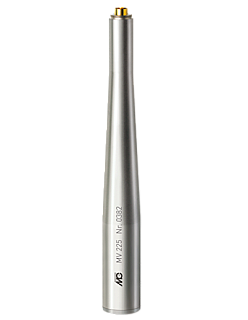

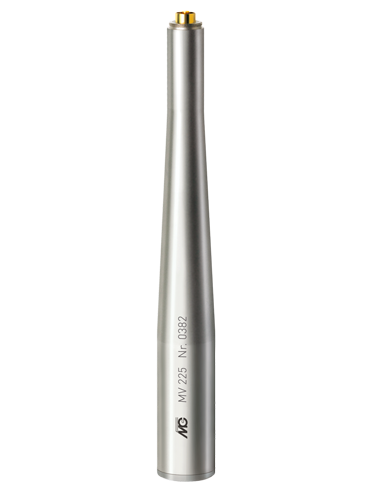

The MM 225 is a 1/2" externally polarized measurement microphone utilizing the MK 221 capsule, designed for phantom-powered measurement systems. It delivers a frequency range of 3.5 Hz to 20 kHz (±2 dB), operating transfer factor of 50 mV/Pa at 250 Hz, and dynamic range from 15 dBA to 134 dB. Featuring a permanently attached 2-meter XLR cable and compatible with standard 1/2" accessories (windscreens, nose cones, drying adapters), it operates within -25°C to +100°C temperature range. Calibration is possible using Pistonfon Type 5002 or equivalent calibrators, making it suitable for precision acoustic measurements and reference applications requiring IEPE compliance per WS2F (DIN EN IEC 61094-4).
Product Details
Brand:Microtech Gefell
Transducer Type:Condenser
Polar Pattern:Omnidirectional
Microphone Form Factor:Measurement / Reference Microphone
Frequency Response:3.50–20 000 Hz
Microphone Connector:XLR 3-Pin
Phantom Power 48 V:Yes
Max. SPL:138 dB
Manufacturer Code:318 009
Product Series:MM
Included Accessories:wooden case
Optional Accessories:Various holders (MH 22, MH 93), adapters (A 67, A 63.1, TA 202), nose cones (NK 65), probe attachments (SV 65 series), windscreens (W 2)
Compatible with:Pistonfon Typ 5002
Dimensions
Width:1.32 cm
