MM 220

From: Microtech GefellIDMCRT-25P1
MM 220
MM 220 image 1
This 1/2" measurement microphone is designed for free-field acoustic applications. The MM 220 features a high-quality pre-polarized measurement capsule (MK 250) compatible with standard 48V phantom power systems. It delivers a frequency response of 3.5 Hz to 20 kHz (±2 dB) with an operating range from 15 dBA to 134 dB. The microphone connects via a fixed 2-meter XLR cable and provides 50 mV/Pa sensitivity at 250 Hz. Suitable for precision acoustic measurements and calibration using pistonphones like Type 5002, it comes packaged in a wooden case with various optional accessories including windshields, nose cones, and drying adapters for different environmental conditions.
Used Equipment
0
Vendors
Rental
0
Vendor Locations

Product Details

Brand:Microtech Gefell
Transducer Type:Condenser
Polar Pattern:Omnidirectional
Microphone Form Factor:Measurement / Reference Microphone
Frequency Response:3.50–20 000 Hz
Microphone Connector:XLR 3-Pin
Phantom Power 48 V:Yes
Max. SPL:134 dB
Dynamic Range:119 dB
Manufacturer Code:318 008
Product Series:MM
Included Accessories:wooden case

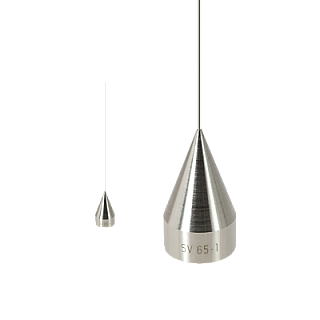

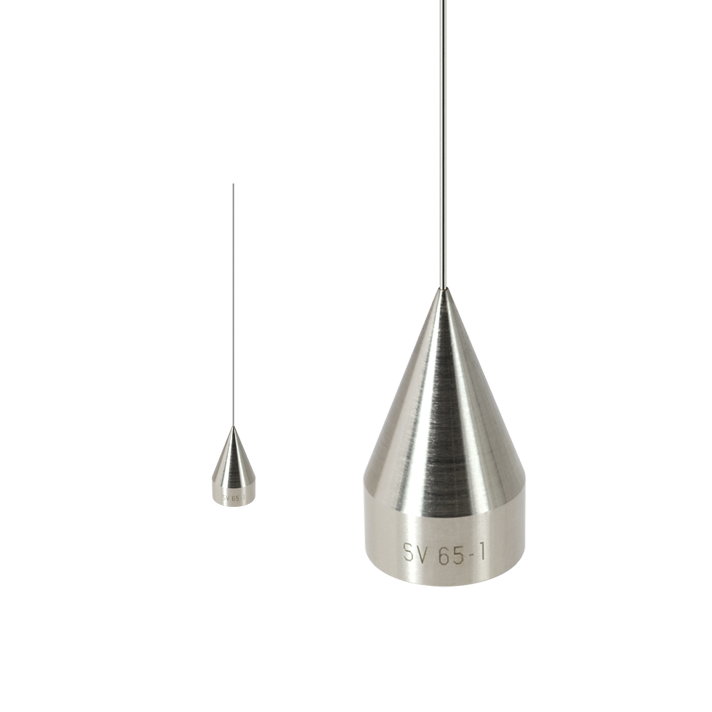

Optional Accessories:MH 64, MH 64.2, MH 21, A 67, A 63.1, WA 20, K 65, TA 202, NK 65, SV 65, SV 65-1, SV 65-2, SV 65-3, SV 65-4, W 2, W 2 5x
Compatible with:Pistonfon Type 5002, suitable sound pressure calibrators, microphone holder MH 64

Dimensions

Width:1.32 cm
Length:1.17 cm
Height:3.35 cm

All information is provided without warranty. If you find any errors, please let us know using the feedback button.
