LE100

From: Martin AudioIDMARC-26FM

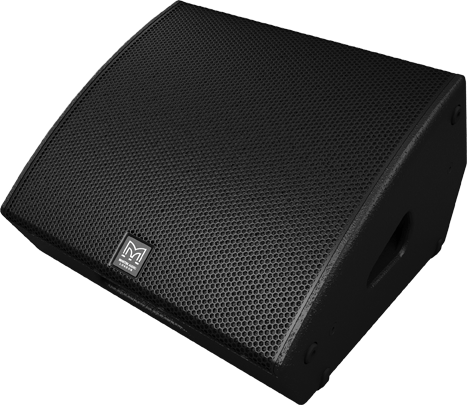

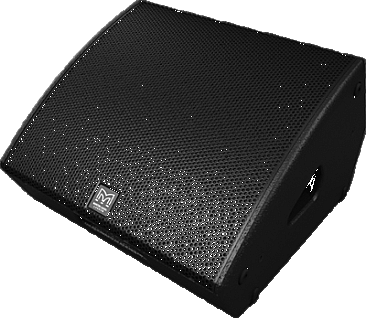

The Martin Audio LE100 is a compact, two-way passive stage monitor featuring a 12" LF/1" HF coaxial differential dispersion driver for even sound distribution. With a 2.5" voice coil and aluminum demodulating ring to minimize distortion, it delivers consistent coverage with a horizontal pattern tapering from 110° to 60°. The durable plywood enclosure includes multiple NL4 connectors, ergonomic handles, M8 rigging inserts, and steel grille. Rated at 300W AES/1200W peak with 97dB sensitivity and 129dB max SPL, it functions as a stage monitor or pole-mounted fill.

Used Equipment

Vendors

Used Sources

Rental

Vendor Locations

Rental Sources

Product Details

Brand:Martin Audio

Audio Speaker Type:Point Source Loudspeakers, Stage Monitors

Amplification Type:Passive

Max. SPL:129 dB

Nominal Horizontal Coverage:110 º

Nominal Vertical Coverage:60 º

LF Driver Diameter:12 "

Amount of LF Speakers:1

Audio Network Protocol:None

Cardioid Capability:No

Amount of Speakers in Device:2

Components:12" LF driver with 2.5" voice coil, coaxial 1" HF driver with polyimide dome, birch/poplar ply enclosure with black textured paint finish, 5 x NL4 connectors, pocket handles, M8 rigging inserts, pole-mount socket

RMS Power Handling:300 W

Frequency Response:78–20 000 Hz

Nominal Impedance (Ohm):8

Speaker Mounting Options:Ground Stacked, Pole Mounted, Flyware Compatible

Housing Colour:Black

Cabinet Construction:Birch/poplar plywood

Power Options:Other

IP Rating:IP20

Manufacturer Code:LE100

Product Series:LE

Optional Accessories:M8 Eye Bolts, Flightcase for 2 x LE100

Included Accessories:Removable pole-mount bung, protective rubber feet, pocket handles

Compatible with:iK41, iK81, VIA2502, VIA5002, VIA5004, DX0.4, DX0.6, DX4.0; Martin Audio subwoofers

Weight:18 kg

Dimensions

Width:49 cm

Length:47.20 cm

Height:30.50 cm

All information is provided without warranty. If you find any errors, please let us know using the feedback button.

All information is provided without warranty.

If you find any errors, please let us know using the feedback button.
