CDD8-WR White

From: Martin AudioIDMARC-KU69

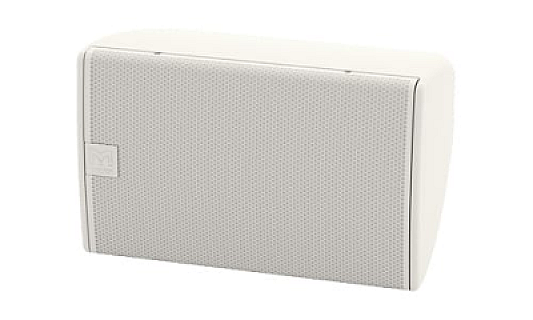

The Martin Audio CDD8-WR is an 8" passive coaxial differential dispersion outdoor on-wall loudspeaker designed for permanent installations in sheltered outdoor environments. It features a user-rotatable coaxial driver comprising an 8" (200mm) LF and 1" (25mm) exit HF section, providing variable horizontal dispersion from 110° to 80° and 60° vertical coverage. The weatherized composite enclosure meets IP54 standards with an operating temperature range of -20°C to +70°C. With a frequency response of 70Hz-20kHz ±3dB, 94dB sensitivity, and 200W AES power handling, this compact speaker delivers 117dB continuous/123dB peak output. The screw-free water-resistant grille and discreet mounting options make it suitable for outdoor restaurants, bars, hotel areas, and transportation hubs.

Used Equipment

Vendors

Used Sources

Rental

Vendor Locations

Rental Sources

Product Details

Brand:Martin Audio

Audio Speaker Type:Full-Range Speakers, Installation Loudspeakers

Amplification Type:Passive

Max. SPL:123 dB

Nominal Horizontal Coverage:110 º

Nominal Vertical Coverage:60 º

LF Driver Diameter:8 "

Amount of LF Speakers:1

Physical Digital Audio Connectors:XLR (3-pin)

Audio Network Protocol:AES67

Cardioid Capability:No

Audio Speaker Features:Rotatable Horn

Amount of Speakers in Device:2

Components:8" LF driver with shared ferrite motor system, 1" HF compression driver

RMS Power Handling:400 W

Frequency Response:70–20 000 Hz

Nominal Impedance (Ohm):8

Power Options for Active Speakers:100 V, 50/60 Hz, 120 V, 60 Hz, 230 / 240 V, 50 Hz

Speaker Mounting Options:M10 Points, Other Rigging Methods

Housing Colour:White

Cabinet Construction:UPM Formi composite enclosure with zinc-plated mild-steel powder-coated weatherised grille.

Power Options:100 V, 50 / 60 Hz, 120 V, 60 Hz, 230 V / 240 V, 50 Hz

IP Rating:IP54

Manufacturer Code:CDD8-WR

Product Series:CDD-WR

Optional Accessories:WB6/8B / WB6/8W Wall Bracket; CDDCB6/8B / CDDCB6/8W Weatherised ceiling bracket

Compatible with:DX4.0 controller, iKON amplifiers, DX0.4 controller, DX0.6 controller, iK41, iK81, VIA2502, VIA2004

Weight:9.80 kg

Dimensions

Width:25.60 cm

Length:25.20 cm

Height:41 cm

All information is provided without warranty. If you find any errors, please let us know using the feedback button.

All information is provided without warranty.

If you find any errors, please let us know using the feedback button.

Brand	Martin Audio
Audio Speaker Type	Full-Range Speakers, Installation Loudspeakers
Amplification Type	Passive
Max. SPL	123 dB
Nominal Horizontal Coverage	110 º
Nominal Vertical Coverage	60 º
LF Driver Diameter	8 "
Amount of LF Speakers	1
Physical Digital Audio Connectors	XLR (3-pin)
Audio Network Protocol	AES67
Cardioid Capability	No
Audio Speaker Features	Rotatable Horn
Amount of Speakers in Device	2
Components	8" LF driver with shared ferrite motor system, 1" HF compression driver
RMS Power Handling	400 W
Frequency Response	70–20 000 Hz
Nominal Impedance (Ohm)	8
Power Options for Active Speakers	100 V, 50/60 Hz, 120 V, 60 Hz, 230 / 240 V, 50 Hz
Speaker Mounting Options	M10 Points, Other Rigging Methods
Housing Colour	White
Cabinet Construction	UPM Formi composite enclosure with zinc-plated mild-steel powder-coated weatherised grille.
Power Options	100 V, 50 / 60 Hz, 120 V, 60 Hz, 230 V / 240 V, 50 Hz
IP Rating	IP54
Manufacturer Code	CDD8-WR
Product Series	CDD-WR
Optional Accessories	WB6/8B / WB6/8W Wall Bracket; CDDCB6/8B / CDDCB6/8W Weatherised ceiling bracket
Compatible with	DX4.0 controller, iKON amplifiers, DX0.4 controller, DX0.6 controller, iK41, iK81, VIA2502, VIA2004
Weight	9.80 kg
Dimensions
Width	25.60 cm
Length	25.20 cm
Height	41 cm
