V-R841DP-AFHD

From: Marshall ElectronicsIDMARS-VAUB

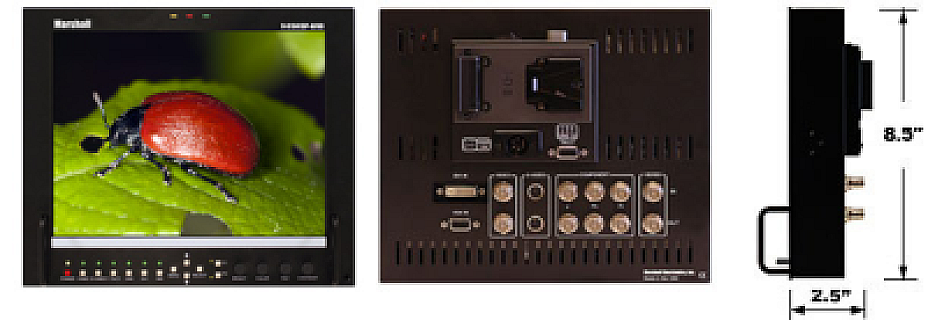

The Marshall V-R841DP-AFHD is an 8.4-inch HD LCD monitor featuring a digital TFT-MegaPixel™ active matrix platform with 1024x768 resolution and 16.7 million colors. It delivers 400 cd/m² brightness and 400:1 contrast ratio for precise color representation through SMPTE-C/EBU emulation and adjustable color temperature. Supporting multiple formats including NTSC/PAL, 480i/p, 720p, and 1080i/p, it accepts HD-SDI, SDI, VGA, DVI, composite, and S-Video inputs. Weighing 3.4 lbs (1.54 kg) with dimensions of 9.00"W x 7.00"H x 1.87"D, it includes a ¼-20 mounting plate and universal power supply. Optional rack mounting and desktop configurations make it suitable for video assistance, talent monitoring, and signal confidence applications.

Used Equipment

Vendors

Used Sources

Rental

Vendor Locations

Rental Sources

Product Details

Brand:Marshall Electronics

Display Technology:LCD

Display Features:Focus Tools, Monitoring Tools

Screen Diagonal:8.40 in

Native Resolution

Native Resolution Width:1 024 px

Native Resolution Height:768 px

Contrast Ratio:400 : 1

Color Gamut Coverage:Rec. 601

Mounting:1/4" female

IP Rating:IP20

Video Wall Compatibility:No

Viewing Angle

Viewing Angle Horizontal:170 º

Viewing Angle Vertical:170 º

Manufacturer Code:V-R841DP-AFHD

Included Accessories:V-Mount battery adapter, ¼-20 mounting plate, universal voltage Class-2 power supply

Optional Accessories:4RU rack mount adapter, desktop stand, additional mounting plates

Power Consumption Typical:24 W

Power Options:100 V, 50 / 60 Hz, 120 V, 60 Hz, 230 V / 240 V, 50 Hz

Weight:1.54 kg

Dimensions

Width:22.86 cm

Length:4.75 cm

Height:17.78 cm

Physical Video Input Connectors.:1x VGA, 1x SDI, 3x Component, 1x DVI, 1x Composite, 1x S-Video

All information is provided without warranty. If you find any errors, please let us know using the feedback button.

All information is provided without warranty.

If you find any errors, please let us know using the feedback button.

Brand	Marshall Electronics
Display Technology	LCD
Display Features	Focus Tools, Monitoring Tools
Screen Diagonal	8.40 in
Native Resolution
Native Resolution Width	1 024 px
Native Resolution Height	768 px
Contrast Ratio	400 : 1
Color Gamut Coverage	Rec. 601
Mounting	1/4" female
IP Rating	IP20
Video Wall Compatibility	No
Viewing Angle
Viewing Angle Horizontal	170 º
Viewing Angle Vertical	170 º
Manufacturer Code	V-R841DP-AFHD
Included Accessories	V-Mount battery adapter, ¼-20 mounting plate, universal voltage Class-2 power supply
Optional Accessories	4RU rack mount adapter, desktop stand, additional mounting plates
Power Consumption Typical	24 W
Power Options	100 V, 50 / 60 Hz, 120 V, 60 Hz, 230 V / 240 V, 50 Hz
Weight	1.54 kg
Dimensions
Width	22.86 cm
Length	4.75 cm
Height	17.78 cm
Physical Video Input Connectors.	1x VGA, 1x SDI, 3x Component, 1x DVI, 1x Composite, 1x S-Video
