CV345-CS

From: Marshall ElectronicsIDMARS-3QJC
CV345-CS

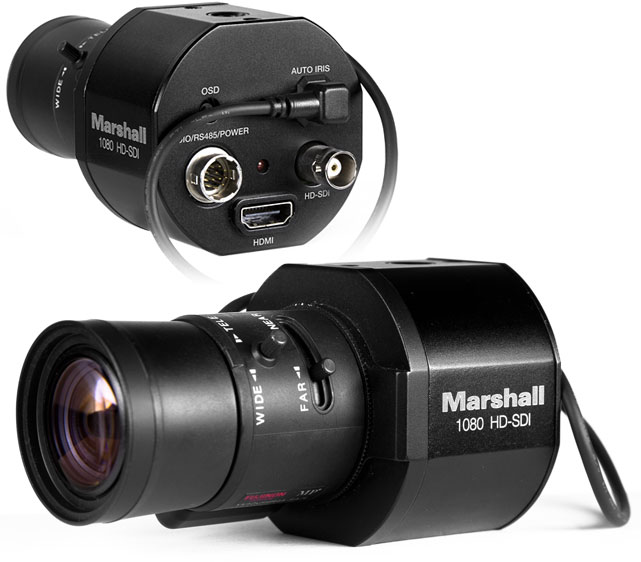

CV345-CS image 1
The Marshall CV345-CS is a compact broadcast camera featuring a 1/3-inch CMOS sensor with 2.5 megapixel resolution. It delivers full HD video at resolutions up to 1920x1080p60/50/30/25 and supports 1280x720p formats. The camera includes CS/C mount with DC-auto iris capability (lens sold separately), 3G/HD-SDI (BNC), HDMI 1.3 output, and TRS audio input with line/mic level selectable. It incorporates RS-485 remote control (Pelco/Visca), WDR function, and stepped gain control. With low-light sensitivity down to 0.2 lux, the CV345-CS is designed for professional broadcast applications including sports, television production, and event coverage.
Used Equipment
0
Vendors
Rental
0
Vendor Locations

Product Details

Brand:Marshall Electronics
Camera Type:Broadcast Camera, POV Camera
Camera Application:Live Event, Broadcast, Sports Production
Special Camera Features:HDR Capture, Low Light Optimized
Camera Sensor Format:1/2-inch
Camera Resolution Class:1920x1080 (Full HD 1080p / 1080i interlaced), 1280x720 (720p HD)
Sensor Resolution:1920 × 1080
Lens Mount:Other
Frame Rates:25p, 30p, 50p, 60p
Supported Video Output Standards:SDI, HDMI
Physical Video Output Connectors:HDMI Type A, BNC
Audio Inputs:3.5mm Jack
Power Supply:DC Input
Manufacturer Code:CV345-CS
Product Series:Pro-Series

Accessories

Included Accessories:12 V power supply, CV505/345-CABLE (Hirose breakout cable)
Optional Accessories:10 ft Hirose breakout cable (CV505/345-10FTCBLE), USB to RS485 adapter (CV-USB-RS485), optional CS mount lenses, optional camera control software
Weight:0.16 kg

Dimensions

Width:6 cm
Length:4.50 cm
Height:5.70 cm
Power Consumption Typical:6 W
Power Options:Other
