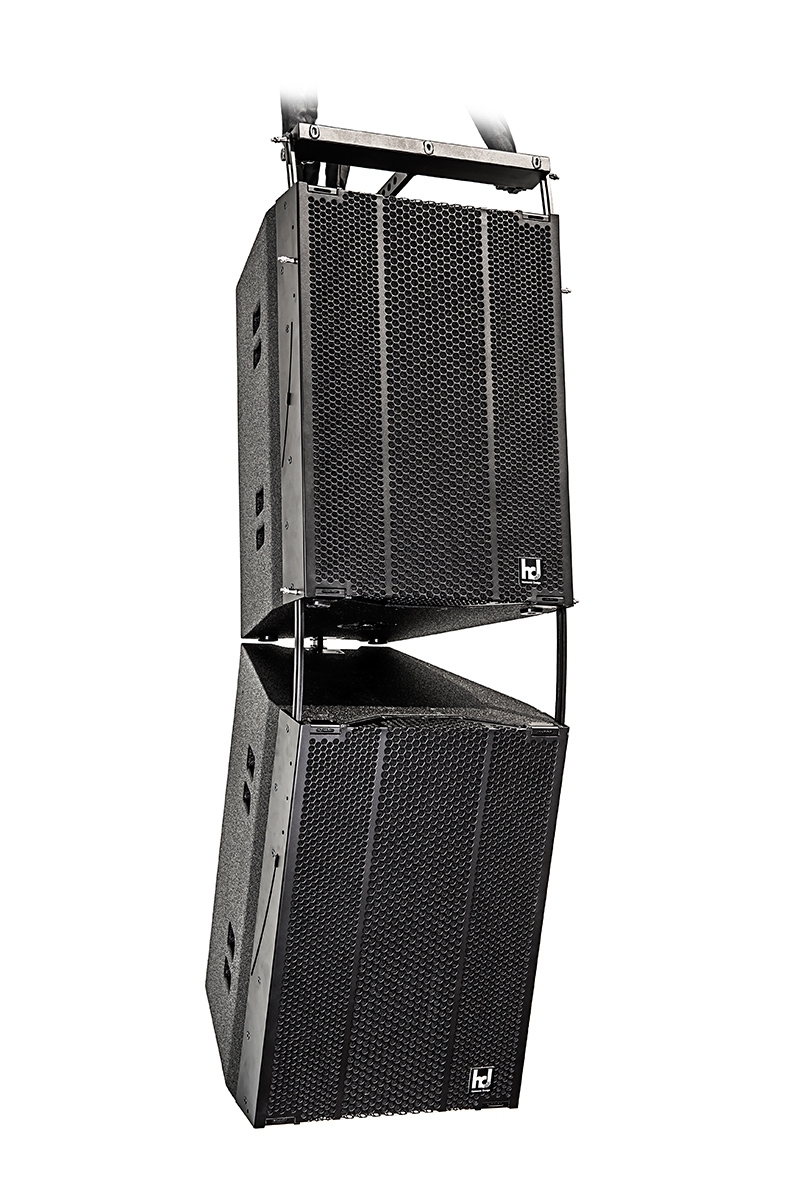

hd HLS16P

From: Harmonic DesignIDHAR4-9VBR

The hd HLS16P is a passive 2-way hybrid line source loudspeaker featuring 2x 8" neodymium bass/midrange drivers and 2x 1.4" neodymium compression drivers. It delivers a cylindrical wavefront with 100° horizontal and 40° vertical coverage, 70 Hz – 20 kHz frequency range (-6 dB), and 105 dB sensitivity (1W/1m). Power handling is 700 W AES / 2800 W peak with a 4 Ω nominal impedance. Maximum SPL reaches 137 dB at 10% THD. The birch wood enclosure (370 × 405 × 540 mm, 24 kg) incorporates hybrid horn, bass reflex, and coaxial design principles with integrated 3-point FastRig rigging for vertical array assembly up to 8 elements.

Used Equipment

Vendors

Used Sources

Rental

Vendor Locations

Rental Sources

Product Details

Brand:Harmonic Design

Audio Speaker Type:Line Array Modules / Tops

Amplification Type:Passive

Max. SPL:137 dB

Nominal Horizontal Coverage:100 º

Nominal Vertical Coverage:40 º

LF Driver Diameter:8 "

Amount of LF Speakers:2

Audio Network Protocol:None

Cardioid Capability:No

Amount of Speakers in Device:4

Components:2x 8\"N woofer/midrange, 2x 1.4\"N HF compression drivers

RMS Power Handling:700 W

Frequency Response:70–20 000 Hz

Nominal Impedance (Ohm):4

Speaker Mounting Options:Ground Stacked, Pole Mounted, Array Frame Compatible, Flyware Compatible

Housing Colour:Black

Cabinet Construction:Multiplex birch wood enclosure with black polyurea coating, coated steel grille, acoustic foam, ergonomic transport handles, 35 mm flange, and integrated 3-point FastRig rigging

IP Rating:IP20

Manufacturer Code:60 127

Product Series:HLS

Optional Accessories:hd HLS16-RF3, hd UniFrame16, Transport Protection Cover, TourCase

Compatible with:Harmonic Design system amplifiers

Weight:24 kg

Dimensions

Width:37 cm

Length:54 cm

Height:40.50 cm

All information is provided without warranty. If you find any errors, please let us know using the feedback button.

All information is provided without warranty.

If you find any errors, please let us know using the feedback button.

Brand	Harmonic Design
Audio Speaker Type	Line Array Modules / Tops
Amplification Type	Passive
Max. SPL	137 dB
Nominal Horizontal Coverage	100 º
Nominal Vertical Coverage	40 º
LF Driver Diameter	8 "
Amount of LF Speakers	2
Audio Network Protocol	None
Cardioid Capability	No
Amount of Speakers in Device	4
Components	2x 8\"N woofer/midrange, 2x 1.4\"N HF compression drivers
RMS Power Handling	700 W
Frequency Response	70–20 000 Hz
Nominal Impedance (Ohm)	4
Speaker Mounting Options	Ground Stacked, Pole Mounted, Array Frame Compatible, Flyware Compatible
Housing Colour	Black
Cabinet Construction	Multiplex birch wood enclosure with black polyurea coating, coated steel grille, acoustic foam, ergonomic transport handles, 35 mm flange, and integrated 3-point FastRig rigging
IP Rating	IP20
Manufacturer Code	60 127
Product Series	HLS
Optional Accessories	hd HLS16-RF3, hd UniFrame16, Transport Protection Cover, TourCase
Compatible with	Harmonic Design system amplifiers
Weight	24 kg
Dimensions
Width	37 cm
Length	54 cm
Height	40.50 cm
