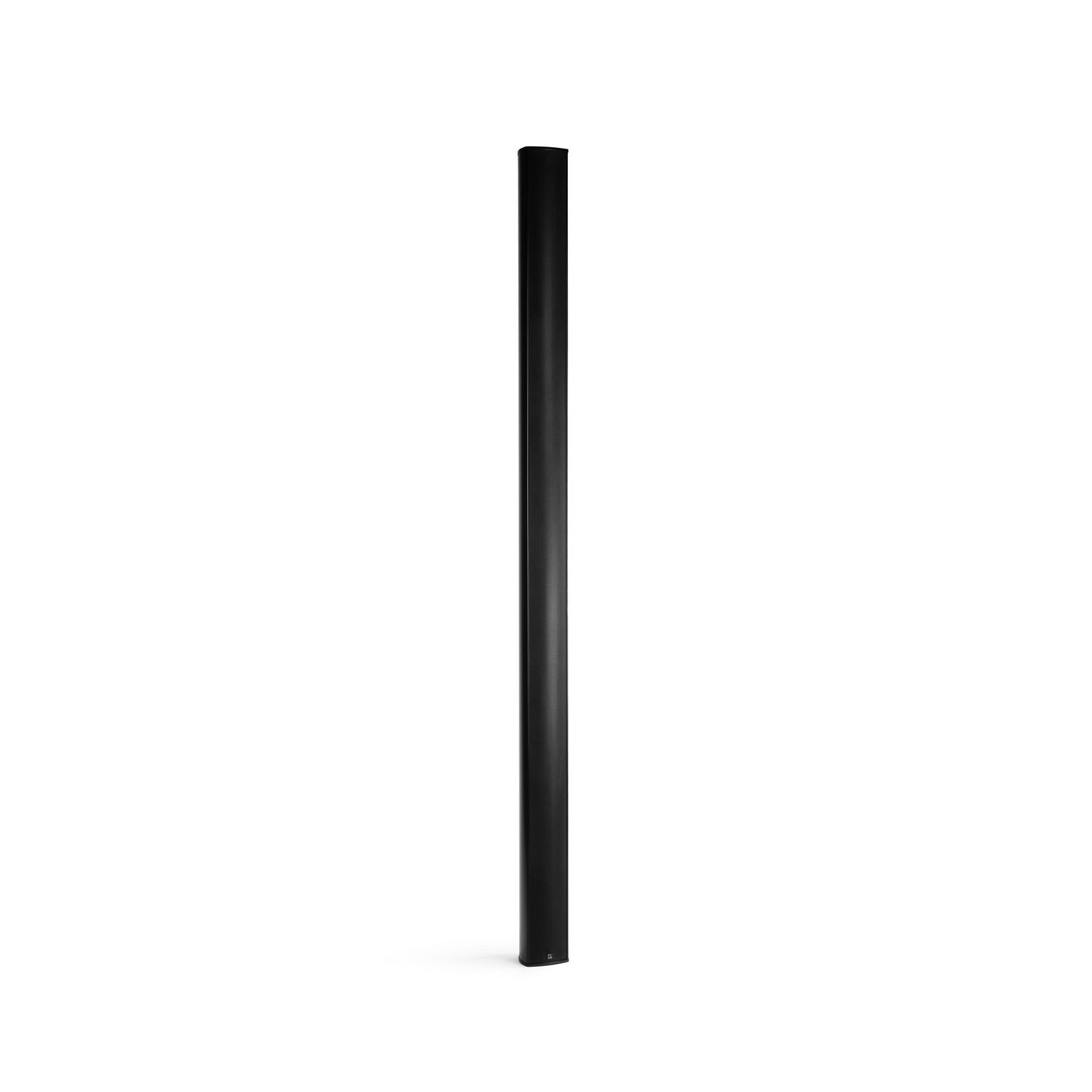

LXP-220 Black

From: FohhnIDFHHN-23Y8

LXP-220 is a passive full-range line source speaker system designed for high-quality speech and music reproduction in challenging acoustic environments. This successor to the Fohhn LX series features 18x 4-inch long excursion drivers and 2x 1-inch compression drivers with 900 W nominal power handling. The innovative design incorporates a fixed 2° acoustic pre-tilt achieved through passive beam steering, eliminating the need for mechanical tilting in most installations. With IP52 weatherproofing (upgradable to IP54), standard black (RAL 9005) finish, and a maximum SPL of 129 dB, it offers professional audio performance for demanding fixed installation applications.

Used Equipment

Vendors

Used Sources

Rental

Vendor Locations

Rental Sources

Product Details

Brand:Fohhn

Audio Speaker Type:Line Array Modules / Tops, Full-Range Speakers, Installation Loudspeakers

Amplification Type:Passive

Max. SPL:129 dB

Nominal Horizontal Coverage:120 º

Nominal Vertical Coverage:16 º

LF Driver Diameter:4 "

Amount of LF Speakers:18

Audio Network Protocol:None

Cardioid Capability:No

Amount of Speakers in Device:20

Components:18x 4" long excursion drivers / 2x 1" compression drivers

RMS Power Handling:900 W

Frequency Response:50–20 000 Hz

Nominal Impedance (Ohm):4

Speaker Mounting Options:Track-Rail, Other Rigging Methods

Housing Colour:Black

Cabinet Construction:Weatherproof aluminium housing, powder coated, with steel bracings

IP Rating:IP54

Manufacturer Code:1219-XXXXX

Product Series:Linea

Optional Accessories:SC-L, Cable Gland Set L, WLX-221, WS-1, WS-5, WS-6, WS-6L, CM-30, CM-100

Compatible with:MA-x.100, MA-x.600, MA-x.1200, DI-x.1000, DI-x.2000, DI-x.4000

Weight:17 kg

Dimensions

Width:13.30 cm

Length:12.80 cm

Height:220.10 cm

All information is provided without warranty. If you find any errors, please let us know using the feedback button.

All information is provided without warranty.

If you find any errors, please let us know using the feedback button.

Brand	Fohhn
Audio Speaker Type	Line Array Modules / Tops, Full-Range Speakers, Installation Loudspeakers
Amplification Type	Passive
Max. SPL	129 dB
Nominal Horizontal Coverage	120 º
Nominal Vertical Coverage	16 º
LF Driver Diameter	4 "
Amount of LF Speakers	18
Audio Network Protocol	None
Cardioid Capability	No
Amount of Speakers in Device	20
Components	18x 4" long excursion drivers / 2x 1" compression drivers
RMS Power Handling	900 W
Frequency Response	50–20 000 Hz
Nominal Impedance (Ohm)	4
Speaker Mounting Options	Track-Rail, Other Rigging Methods
Housing Colour	Black
Cabinet Construction	Weatherproof aluminium housing, powder coated, with steel bracings
IP Rating	IP54
Manufacturer Code	1219-XXXXX
Product Series	Linea
Optional Accessories	SC-L, Cable Gland Set L, WLX-221, WS-1, WS-5, WS-6, WS-6L, CM-30, CM-100
Compatible with	MA-x.100, MA-x.600, MA-x.1200, DI-x.1000, DI-x.2000, DI-x.4000
Weight	17 kg
Dimensions
Width	13.30 cm
Length	12.80 cm
Height	220.10 cm
