DLI-130 (fixed insta...

DLI-130 (fixed installation) AES/Analog

From: FohhnIDFHHN-N9JQ

DLI-130 (fixed installation) AES/Analog

From: FohhnIDFHHN-N9JQ

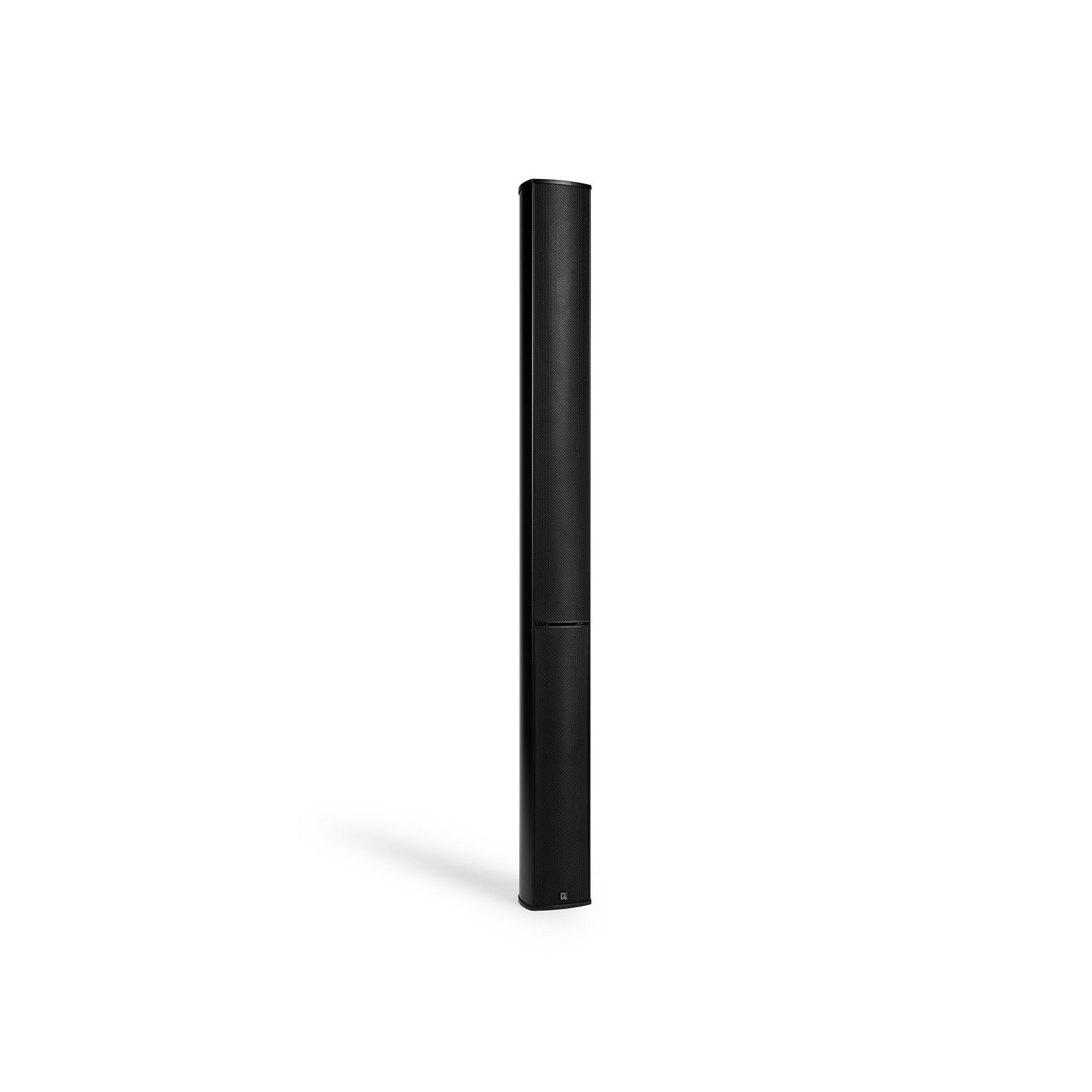

The DLI-130 is a compact, active line source speaker from Fohhn's Focus series, designed for professional voice and music applications. It features an electronically steerable array with 8 x 4" neodymium drivers capable of producing a maximum SPL of 124 dB at 1 meter. The speaker has a frequency range of 60 Hz to 17 kHz with 110° nominal horizontal coverage. Its digitally controlled vertical beam width ranges from 0° to 90°, and sound inclination angle from -40° to +40°, both adjustable in 0.1° increments. Integrated 8-channel Class-D amplification (8 x 100W) with DSP provides precise audio control. The aluminum enclosure measures 133 x 1358 x 128 mm and weighs approximately 9.4 kg.

Used Equipment

Vendors

Used Sources

Rental

Vendor Locations

Rental Sources

Product Details

Brand:Fohhn

Audio Speaker Type:Column Loudspeakers (Line Radiators), Installation Loudspeakers

Amplification Type:Active / Self-Powered

Max. SPL:124 dB

Nominal Horizontal Coverage:110 º

Nominal Vertical Coverage:90 º

LF Driver Diameter:4 "

Amount of LF Speakers:8

Physical Digital Audio Connectors:XLR (3-pin)

Audio Network Protocol:AES67

Cardioid Capability:No

Audio Speaker Features:Onboard DSP

Amount of Speakers in Device:8

Components:8 × 4" impregnated (fully neodymium)

RMS Power Handling:800 W

Frequency Response:60–17 000 Hz

Power Options for Active Speakers:100 V, 50/60 Hz, 120 V, 60 Hz, 230 / 240 V, 50 Hz

Speaker Mounting Options:Track-Rail, Array Frame Compatible, Flyware Compatible

Housing Colour:White, Black

Typical Power Consumption of Active Speakers:200 W

Cabinet Construction:Aluminum

Power Consumption Typical:200 W

Power Options:100 V, 50 / 60 Hz, 120 V, 60 Hz, 230 V / 240 V, 50 Hz

IP Rating:IP20

Manufacturer Code:1343-XXXXX

Product Series:Linea Focus

Optional Accessories:TV-spigot, universal TV-spigot, SA-10 pivot adapter on M10, Free Stand 180, Clamp LC-50, QTC-200, WLF-1, VL-1, WS-1, WS-5, WS-6, SB-S, WS-6L, CM-100

Weight:9.40 kg

Dimensions

Width:13.30 cm

Length:12.80 cm

Height:135.80 cm

All information is provided without warranty. If you find any errors, please let us know using the feedback button.

All information is provided without warranty.

If you find any errors, please let us know using the feedback button.

Brand	Fohhn
Audio Speaker Type	Column Loudspeakers (Line Radiators), Installation Loudspeakers
Amplification Type	Active / Self-Powered
Max. SPL	124 dB
Nominal Horizontal Coverage	110 º
Nominal Vertical Coverage	90 º
LF Driver Diameter	4 "
Amount of LF Speakers	8
Physical Digital Audio Connectors	XLR (3-pin)
Audio Network Protocol	AES67
Cardioid Capability	No
Audio Speaker Features	Onboard DSP
Amount of Speakers in Device	8
Components	8 × 4" impregnated (fully neodymium)
RMS Power Handling	800 W
Frequency Response	60–17 000 Hz
Power Options for Active Speakers	100 V, 50/60 Hz, 120 V, 60 Hz, 230 / 240 V, 50 Hz
Speaker Mounting Options	Track-Rail, Array Frame Compatible, Flyware Compatible
Housing Colour	White, Black
Typical Power Consumption of Active Speakers	200 W
Cabinet Construction	Aluminum
Power Consumption Typical	200 W
Power Options	100 V, 50 / 60 Hz, 120 V, 60 Hz, 230 V / 240 V, 50 Hz
IP Rating	IP20
Manufacturer Code	1343-XXXXX
Product Series	Linea Focus
Optional Accessories	TV-spigot, universal TV-spigot, SA-10 pivot adapter on M10, Free Stand 180, Clamp LC-50, QTC-200, WLF-1, VL-1, WS-1, WS-5, WS-6, SB-S, WS-6L, CM-100
Weight	9.40 kg
Dimensions
Width	13.30 cm
Length	12.80 cm
Height	135.80 cm
