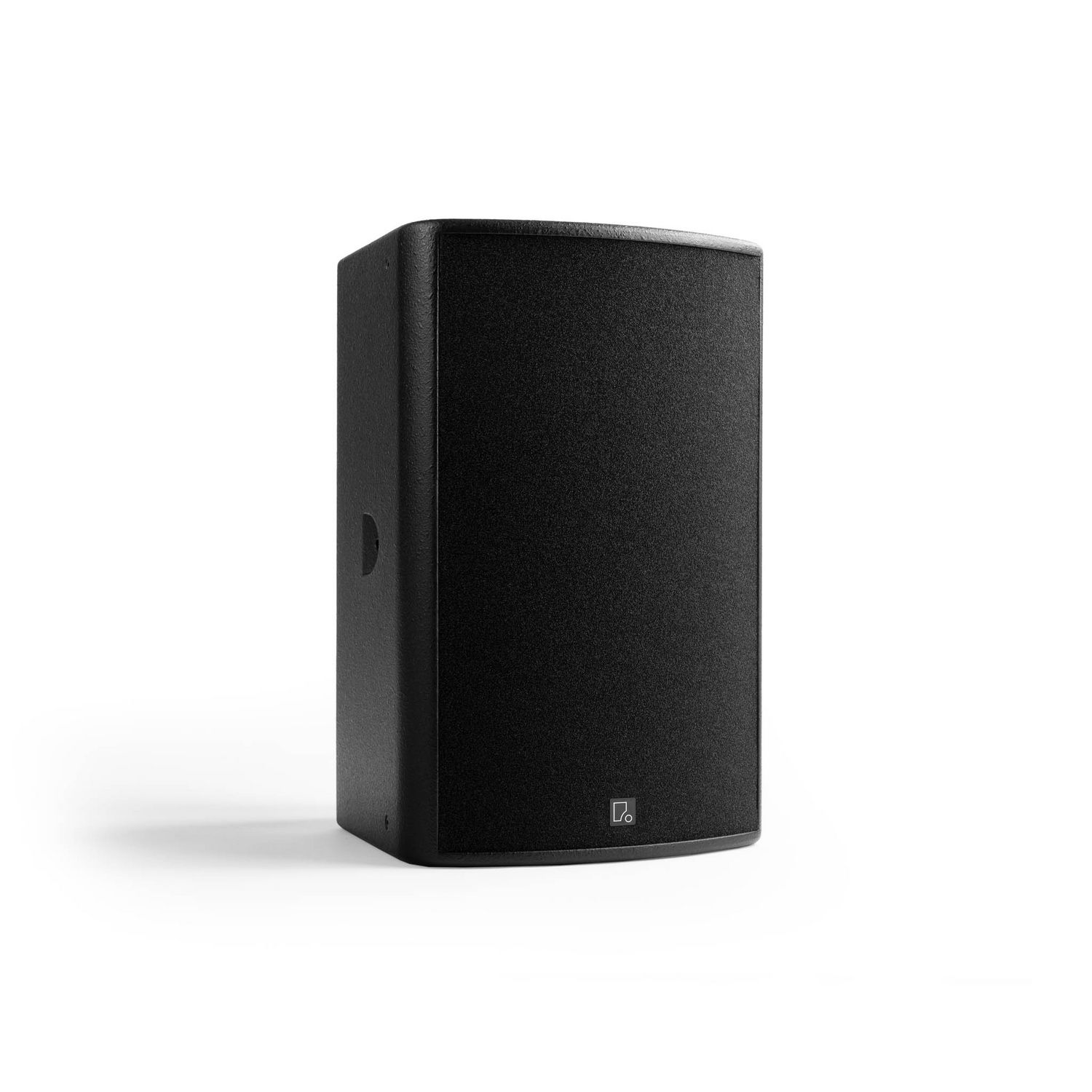

AT-35 Black

From: FohhnIDFHHN-N5BK

The AT-35 is a passive fullrange speaker for fixed installations with a 2-way vented design. It features a 12" LF driver and 1" HF compression driver on a rotatable CD horn. With a nominal power rating of 500 watts at 8 ohms impedance, it delivers a maximum SPL of 130 dB. The speaker offers selectable dispersion patterns of 90°×60° or 60°×40° (H×V). Enclosed in high-quality birch multiplex wood construction weighing approximately 20 kg, it includes 2×Neutrik NL4 Speakon and 8-pole Phoenix connectors. Requires compatible Fohhn system amplifiers with appropriate speaker presets for optimal performance.

Used Equipment

Vendors

Used Sources

Rental

Vendor Locations

Rental Sources

Product Details

Brand:Fohhn

Audio Speaker Type:Full-Range Speakers, Installation Loudspeakers

Amplification Type:Passive

Max. SPL:130 dB

Nominal Horizontal Coverage:90 º

Nominal Vertical Coverage:60 º

LF Driver Diameter:12 "

Amount of LF Speakers:1

Audio Network Protocol:None

Cardioid Capability:No

Audio Speaker Features:Rotatable Horn

Amount of Speakers in Device:2

Components:12" LF driver, 1" HF compression driver on rotatable CD-horn, self-resetting IPC-HF protection

RMS Power Handling:500 W

Frequency Response:45–20 000 Hz

Nominal Impedance (Ohm):8

Speaker Mounting Options:Pole Mounted, Other Rigging Methods

Housing Colour:Black

Cabinet Construction:Multiplex birch plywood, reinforced with steel braces

Power Options:100 V, 50 / 60 Hz

IP Rating:IP20

Manufacturer Code:1012-XXXXX

Product Series:Arc

Optional Accessories:SA-2 stand adapter, QAT-34 horizontal bracket, VAT-34 vertical bracket, VXT-3 series swivel brackets, WLX-221 wall bracket, special colors (RAL/NCS/Pantone), integrated 100V transformer options, weatherproof PU coating

Compatible with:DI-2.2000, DI-4.1000, DI-4.2000, MA-2.1200, DI-2.4000, MA-4.600

Weight:20 kg

Dimensions

Width:38 cm

Length:41 cm

Height:58.50 cm
