EVA-2082S 1220 Fiberglass
From: Electro-VoiceIDEVFF-6GK5

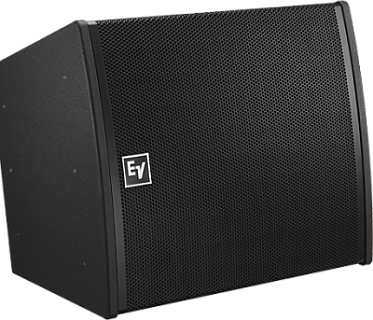

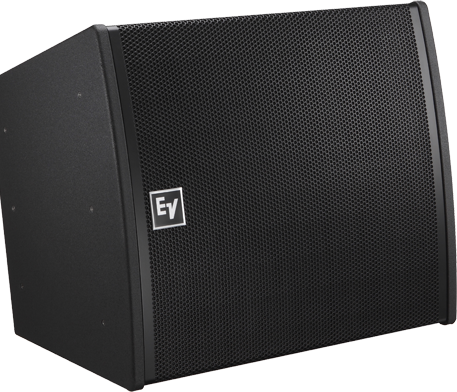

EVA-2082S 1220 Fiberglass
From: Electro-VoiceIDEVFF-6GK5
Dual-element 120°×20° full-range line-array module with 60-19000 Hz frequency response (-3 dB). Features two 8-inch low-distortion woofers and four 1.25-inch titanium diaphragm HF drivers with Hydra plane wave generators. Delivers 104 dB sensitivity, 135 dB maximum SPL, and 350W RMS power handling. Includes integrated suspension hardware, sixth-order passive crossover, and 16 Ω nominal impedance. Designed for fixed installations with high efficiency requiring only one amplifier channel for up to eight boxes.
Product Details
Brand:Electro-Voice
Audio Speaker Type:Line Array Modules / Tops, Full-Range Speakers, Installation Loudspeakers
Amplification Type:Passive
Max. SPL:135 dB
Nominal Horizontal Coverage:120 º
Nominal Vertical Coverage:20 º
LF Driver Diameter:8 "
Amount of LF Speakers:2
Audio Network Protocol:None
Cardioid Capability:No
Audio Speaker Features:Rotatable Horn
Amount of Speakers in Device:6
Components:Two 8-inch woofers, four 1.25-inch HF drivers with compression chambers
RMS Power Handling:350 W
Frequency Response:60–19 000 Hz
Nominal Impedance (Ohm):16
Speaker Mounting Options:Array Frame Compatible, Flyware Compatible
Housing Colour:Black
Cabinet Construction:Birch plywood
IP Rating:IP20
Manufacturer Code:EVA-2082S 1220
Product Series:EVA
Optional Accessories:EVA Grid suspension system
Included Accessories:Integrated suspension hardware
Weight:36.80 kg
Dimensions
Width:151.61 cm
Length:93.77 cm
Height:51.22 cm
