MAGMAFAN 1 US
From: Elation LightingIDELAT-BA7F

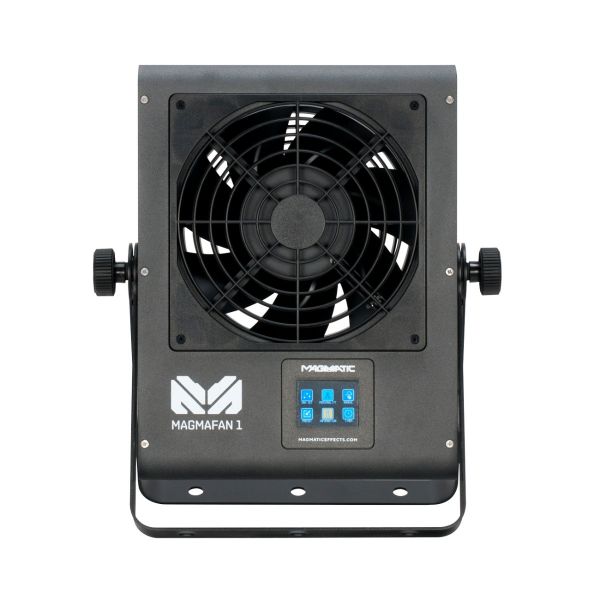

MAGMAFAN 1 US
From: Elation LightingIDELAT-BA7F
The MAGMAFAN 1 is a compact atmospheric stage fan with durable aluminum housing designed for controlled airflow effects. It delivers precise air movement with linear speed control across a 0-360° angle range and operates at 750-2800 RPM with 600 CFM airflow capacity. The unit supports onboard LCD touch control, DMX-512, and RDM protocols. With 165W maximum power consumption, it includes an adjustable mounting bracket allowing 90-degree output adjustment. The compact design (33.5 × 12.5 × 39.5 cm, 6.8 kg) features IPX4-rated construction and lockable XLR/IP65 connectors for reliable professional operation.
Product Details
Brand:Elation Lighting
Manufacturer Code:MSF013
Control and Communication Standards:W-DMX, DMX512-A, RDM, Wired Remote
Indoor / Outdoor:Both
Power Consumption Typical:165 W
Weight:6.80 kg
Dimensions
Width:12.50 cm
Length:33.50 cm
Height:39.50 cm
Accessories
Included Accessories:Adjustable mounting/floor bracket
Optional Accessories:MAGFLY Wireless DMX Transceiver, MAGRF Wireless and Wired Remotes, MagRemote VIDI
Application Types:Touring, Live Event, Rental
Input Power Connector:Other
Compliance Certifications:CE (EU)
Mounting Options:Floor Mount
Cooling System:Variable-Speed Fan
IP Rating:IP65
Product Series:MAGMAFAN
Form Factor:Portable
Output Effects Type:Continuous, Programmable
Output Range:750–2 800
DMX Output:Yes
Programmability:No
Special Effects Type:Wind
Airflow:1 020 m³/h
