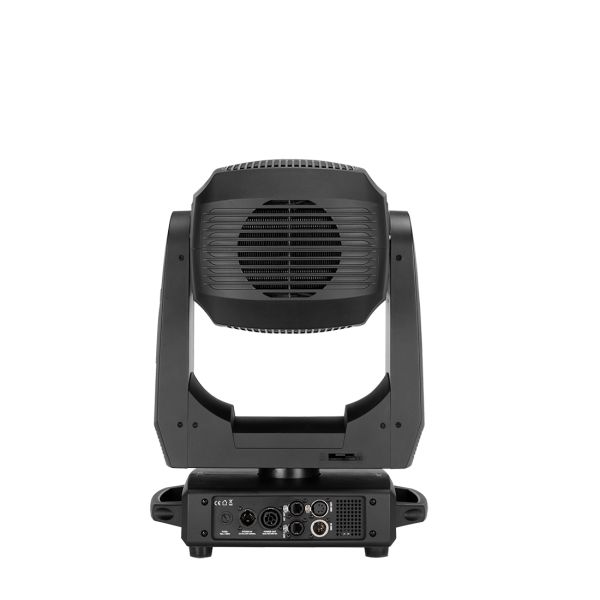

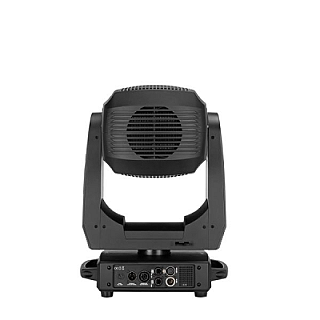

FUZE PFX

From: Elation LightingIDELAT-NY5N

The FUZE PFX™ is a professional 400W LED Framing FX fixture delivering 15,000 lumens output with 3°-53° zoom range. It features CMY color mixing, 7 dichroic color filters, dual independent prisms (6-facet linear and round), and variable frost filters for beam shaping. The fixture includes 4 blackout framing blades with ±60° rotation, motorized iris, 7 rotating glass gobos, and 11 static metal gobos. With CRI 90 capability via filters, it supports DMX, Art-Net, and sACN protocols. Dimensions: 36.2×23.3×63.7cm, 22.7kg weight. Maximum power consumption: 600W.

Used Equipment

Vendors

Used Sources

Rental

Vendor Locations

Rental Sources

Product Details

Brand:Elation Lighting

Moving Head Type:Effect, Spot / Profile, Wash

Light Source Type:Cold White LED Light Engine

Light Source Wattage:400 W

Light Output at Native Colour Temperature:15 000 lm

Colour Creation Method:Fixed Colour Filters, CMY Filter Mixing

Native Light Source Colour Temperature:6 600 K

Fixture Output Colour Temperature Range:3 200–6 600 K

Colour Correction :CTO Filter, variable (cold to warm)

Highest Specified CRI Value:90

Frost Effects:Variable Frost Effect

Beam Angle Range (w/o accessories):3–53 º

IP Rating:IP20

No. of Fixed Colour Filters:7

No. of Fixed Colour Wheels:1

No. of Fixed Gobos:11

No. of Fixed Gobo Wheels:1

No. of Rotating Gobos:7

No. of Rotating Gobo Wheels:1

No. if Prisms:2

Dimmer Type:Electronically

Strobe Effect Type:Electronically

Framing / Beam Shaping Module:4 Blades, Individually positionable Blades, Framing Module Rotation

Beam Iris:Yes

Silent Operation:No

Video Mapping:No

Application Range:Medium (8 m - 25 m throw), Large (20 m - 40 m throw)

Control and Communication Standards:MIDI, DMX512-A, sACN, OSC

Power Consumption Typical:600 W

Power Options:100 V, 50 / 60 Hz, 120 V, 60 Hz, 230 V / 240 V, 50 Hz

Manufacturer Code:FUZ719

Weight:22.70 kg

Dimensions

Width:23.30 cm

Length:36.20 cm

Height:63.70 cm

All information is provided without warranty. If you find any errors, please let us know using the feedback button.

All information is provided without warranty.

If you find any errors, please let us know using the feedback button.
