FUZE MAX PROFILE

From: Elation LightingIDELAT-9NKD

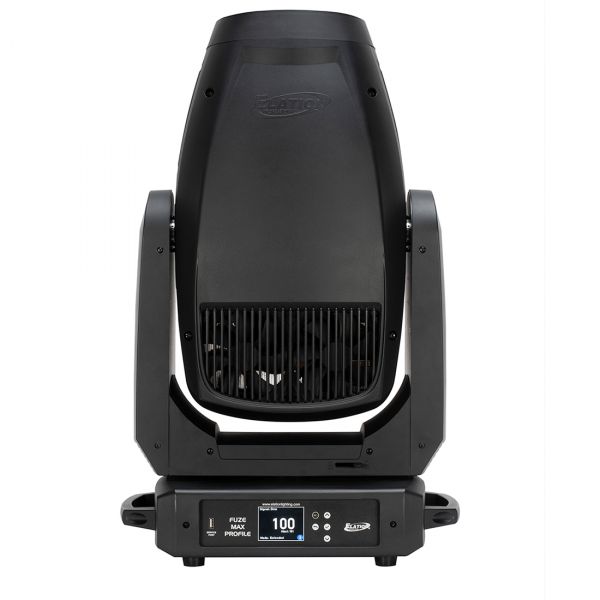

The FUZE MAX PROFILE is an 800W RGBMA LED automated framing fixture designed for professional theater and television applications. Featuring a 92 CRI engine with over 21,000 lumens output, it delivers precise dynamic whites across 2400K-8500K. The fixture includes motorized zoom (7°-53°), dual variable frost filters, 4-facet round/linear prism, and motorized iris. Its comprehensive effects system comprises 6 rotating/indexing gobos, 7 fixed gobos, animation wheel, and 4-position framing blades with ±60° indexing. With 16-bit resolution movement, IP20 rating, and support for DMX/RDM/Art-NET/sACN protocols, it provides CMY emulation, virtual gel swatch book, and magenta/green adjustment for accurate color reproduction in demanding lighting environments.

Used Equipment

Vendors

Used Sources

Rental

Vendor Locations

Rental Sources

Product Details

Brand:Elation Lighting

Moving Head Type:Spot / Profile

Light Source Type:Multicolour LEDs

Light Source Wattage:800 W

Light Output at Native Colour Temperature:21 000 lm

Colour Creation Method:LED Colour Creation

Native Light Source Colour Temperature:2 400–8 500 K

Fixture Output Colour Temperature Range:2 400–8 500 K

Colour Correction :Digital Colour Correction

Highest Specified CRI Value:92

Frost Effects:Variable Frost Effect

Beam Angle Range (w/o accessories):6.60–50.30 º

IP Rating:IP20

No. of Fixed Gobos:7

No. of Fixed Gobo Wheels:1

No. of Rotating Gobos:6

No. of Rotating Gobo Wheels:1

No. of Animation Wheels:1

No. if Prisms:1

Dimmer Type:Electronically

Strobe Effect Type:Electronically

Framing / Beam Shaping Module:4 Blades, Individually positionable Blades

Beam Iris:Yes

Silent Operation:No

Video Mapping:No

Application Range:Medium (8 m - 25 m throw), Large (20 m - 40 m throw)

Control and Communication Standards:MIDI, DMX512-A, sACN, OSC

Power Consumption Typical:1 126 W

Power Options:100 V, 50 / 60 Hz, 120 V, 60 Hz, 230 V / 240 V, 50 Hz

Manufacturer Code:FUZ546

Weight:34.60 kg

Dimensions

Width:54 cm

Length:46.20 cm

Height:71.90 cm
