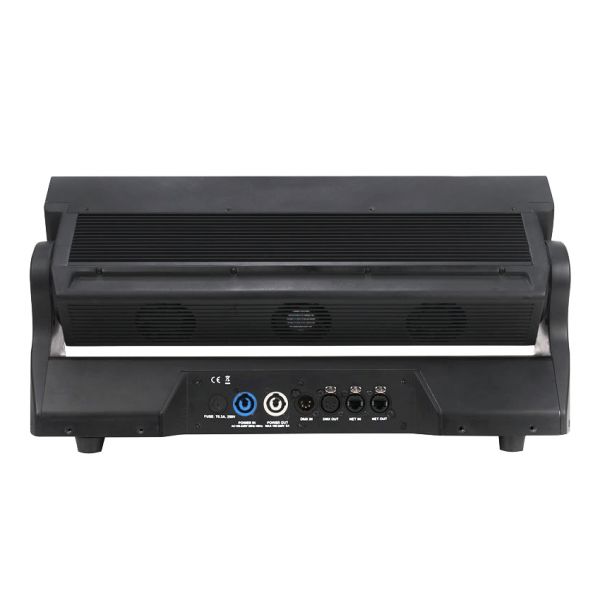

Chorus Line ST

From: Elation LightingIDELAT-HX6B

Chorus Line ST is a 16-pixel professional bar wash luminaire featuring eight 40W 4-in-1 RGBW LED modules for a total light source wattage of 320W. It delivers a continuously variable beam angle range from 4° to 40° with motorized zoom and 220° automated tilt movement. The fixture provides full RGBA color mixing with adjustable correlated color temperature from 2,700K to 7,000K, supporting flicker-free operation for television and film production through adjustable LED refresh rates (900-25,000 Hz) and gamma brightness control. Control options include DMX512, RDM, Kling-Net, and Art-Net protocols with 3-channel modes totaling 46 channels. Electrical requirements are universal 100-240V AC with maximum power consumption of 359W. Physical dimensions are 54.1 x 18.9 x 29.1 cm, weighing 11.3 kg.

Used Equipment

Vendors

Used Sources

Rental

Vendor Locations

Rental Sources

Product Details

Brand:Elation Lighting

Lighting Fixture Type:Wash Light, Striplights

Pan & Tilt Movement:Automated Tilt Movement

Light Source Wattage:320 W

Light Source Type:Multicolour LEDs

Colour Creation Method:LED Colour Creation

Native Light Source Colour Temperature:2 700–7 000 K

Fixture Output Colour Temperature Range:2 700–7 000 K

Beam Angle Options:Variable

Beam Angle Range (w/o accessories):4–40 º

Horizontal Beam Angle Range:4–40 º

Vertical Beam Angle Range:4–40 º

Pole Operation:No

IP Rating:IP20

Beam Iris:No

Dimmer Type:Electronically

Silent Operation:No

Video Mapping:No

Control and Communication Standards:DMX512-A, sACN, OSC, MIDI Show Control

Application Range:Medium (8 m - 25 m throw), Large (20 m - 40 m throw)

Manufacturer Code:CHO319

Power Consumption Typical:359 W

Power Options:100 V, 50 / 60 Hz, 120 V, 60 Hz, 230 V / 240 V, 50 Hz

Weight:11.30 kg

Dimensions

Width:18.90 cm

Length:54.10 cm

Height:29.10 cm

All information is provided without warranty. If you find any errors, please let us know using the feedback button.

All information is provided without warranty.

If you find any errors, please let us know using the feedback button.

Brand	Elation Lighting
Lighting Fixture Type	Wash Light, Striplights
Pan & Tilt Movement	Automated Tilt Movement
Light Source Wattage	320 W
Light Source Type	Multicolour LEDs
Colour Creation Method	LED Colour Creation
Native Light Source Colour Temperature	2 700–7 000 K
Fixture Output Colour Temperature Range	2 700–7 000 K
Beam Angle Options	Variable
Beam Angle Range (w/o accessories)	4–40 º
Horizontal Beam Angle Range	4–40 º
Vertical Beam Angle Range	4–40 º
Pole Operation	No
IP Rating	IP20
Beam Iris	No
Dimmer Type	Electronically
Silent Operation	No
Video Mapping	No
Control and Communication Standards	DMX512-A, sACN, OSC, MIDI Show Control
Application Range	Medium (8 m - 25 m throw), Large (20 m - 40 m throw)
Manufacturer Code	CHO319
Power Consumption Typical	359 W
Power Options	100 V, 50 / 60 Hz, 120 V, 60 Hz, 230 V / 240 V, 50 Hz
Weight	11.30 kg
Dimensions
Width	18.90 cm
Length	54.10 cm
Height	29.10 cm
