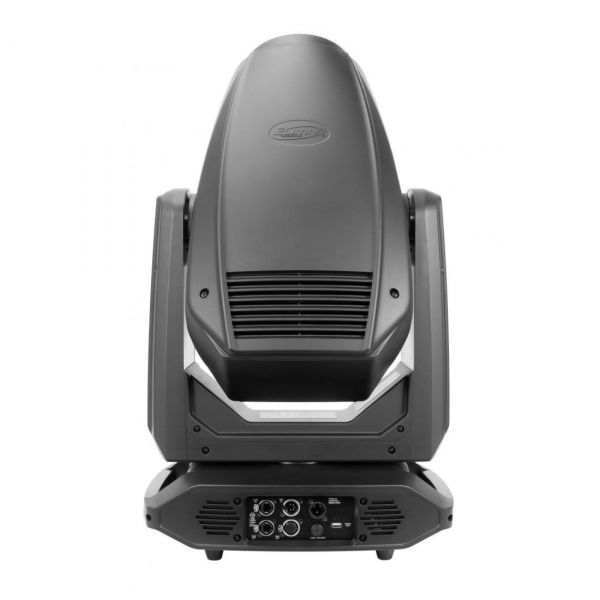

Artiste Picasso

From: Elation LightingIDELAT-46ZU

The Artiste Picasso is a professional theatrical-grade luminaire featuring a 620W 6,800K Cool White LED engine delivering 23,000+ lumens. It incorporates a continuous 7°-55° zoom range, full CMY color mixing with linear CTO correction, and 6 dichroic color filters including an 87+ CRI option. The fixture includes dual gobo wheels with 7 rotating glass and 7 static metal gobos, plus 4 individually rotatable framing blades with +/-45° adjustment. Additional features include motorized iris with pulse effects, 360° bi-directional animation wheel, dual prisms, two frost filters, and 16-bit dimming control. Supports DMX, RDM, Art-NET, and sACN protocols with E-FLY wireless DMX capability, and features flicker-free operation for broadcast applications.

Used Equipment

Vendors

Used Sources

Rental

Vendor Locations

Rental Sources

Product Details

Brand:Elation Lighting

Moving Head Type:Spot / Profile

Light Source Type:Cold White LED Light Engine

Light Source Wattage:620 W

Light Output at Native Colour Temperature:23 000 lm

Colour Creation Method:Fixed Colour Filters, CMY Filter Mixing

Native Light Source Colour Temperature:6 800 K

Fixture Output Colour Temperature Range:3 000–6 800 K

Colour Correction :CTO Filter, variable (cold to warm)

Highest Specified CRI Value:87

Frost Effects:2 Frost Effects

Beam Angle Range (w/o accessories):6.70–47.90 º

IP Rating:IP20

No. of Fixed Colour Filters:6

No. of Fixed Colour Wheels:1

No. of Fixed Gobos:7

No. of Fixed Gobo Wheels:1

No. of Rotating Gobos:7

No. of Rotating Gobo Wheels:1

No. of Animation Wheels:1

No. if Prisms:2

Dimmer Type:Electronically

Strobe Effect Type:Electronically

Framing / Beam Shaping Module:4 Blades, Individually positionable Blades, Framing Module Rotation

Beam Iris:Yes

Silent Operation:No

Video Mapping:No

Application Range:Medium (8 m - 25 m throw)

Control and Communication Standards:MIDI, DMX512-A, sACN, OSC

Power Consumption Typical:1 000 W

Power Options:100 V, 50 / 60 Hz, 120 V, 60 Hz, 230 V / 240 V, 50 Hz

Manufacturer Code:EAP325

Weight:38.10 kg

Dimensions

Width:54.45 cm

Length:45.72 cm

Height:75.74 cm

All information is provided without warranty. If you find any errors, please let us know using the feedback button.

All information is provided without warranty.

If you find any errors, please let us know using the feedback button.

Brand	Elation Lighting
Moving Head Type	Spot / Profile
Light Source Type	Cold White LED Light Engine
Light Source Wattage	620 W
Light Output at Native Colour Temperature	23 000 lm
Colour Creation Method	Fixed Colour Filters, CMY Filter Mixing
Native Light Source Colour Temperature	6 800 K
Fixture Output Colour Temperature Range	3 000–6 800 K
Colour Correction	CTO Filter, variable (cold to warm)
Highest Specified CRI Value	87
Frost Effects	2 Frost Effects
Beam Angle Range (w/o accessories)	6.70–47.90 º
IP Rating	IP20
No. of Fixed Colour Filters	6
No. of Fixed Colour Wheels	1
No. of Fixed Gobos	7
No. of Fixed Gobo Wheels	1
No. of Rotating Gobos	7
No. of Rotating Gobo Wheels	1
No. of Animation Wheels	1
No. if Prisms	2
Dimmer Type	Electronically
Strobe Effect Type	Electronically
Framing / Beam Shaping Module	4 Blades, Individually positionable Blades, Framing Module Rotation
Beam Iris	Yes
Silent Operation	No
Video Mapping	No
Application Range	Medium (8 m - 25 m throw)
Control and Communication Standards	MIDI, DMX512-A, sACN, OSC
Power Consumption Typical	1 000 W
Power Options	100 V, 50 / 60 Hz, 120 V, 60 Hz, 230 V / 240 V, 50 Hz
Manufacturer Code	EAP325
Weight	38.10 kg
Dimensions
Width	54.45 cm
Length	45.72 cm
Height	75.74 cm
