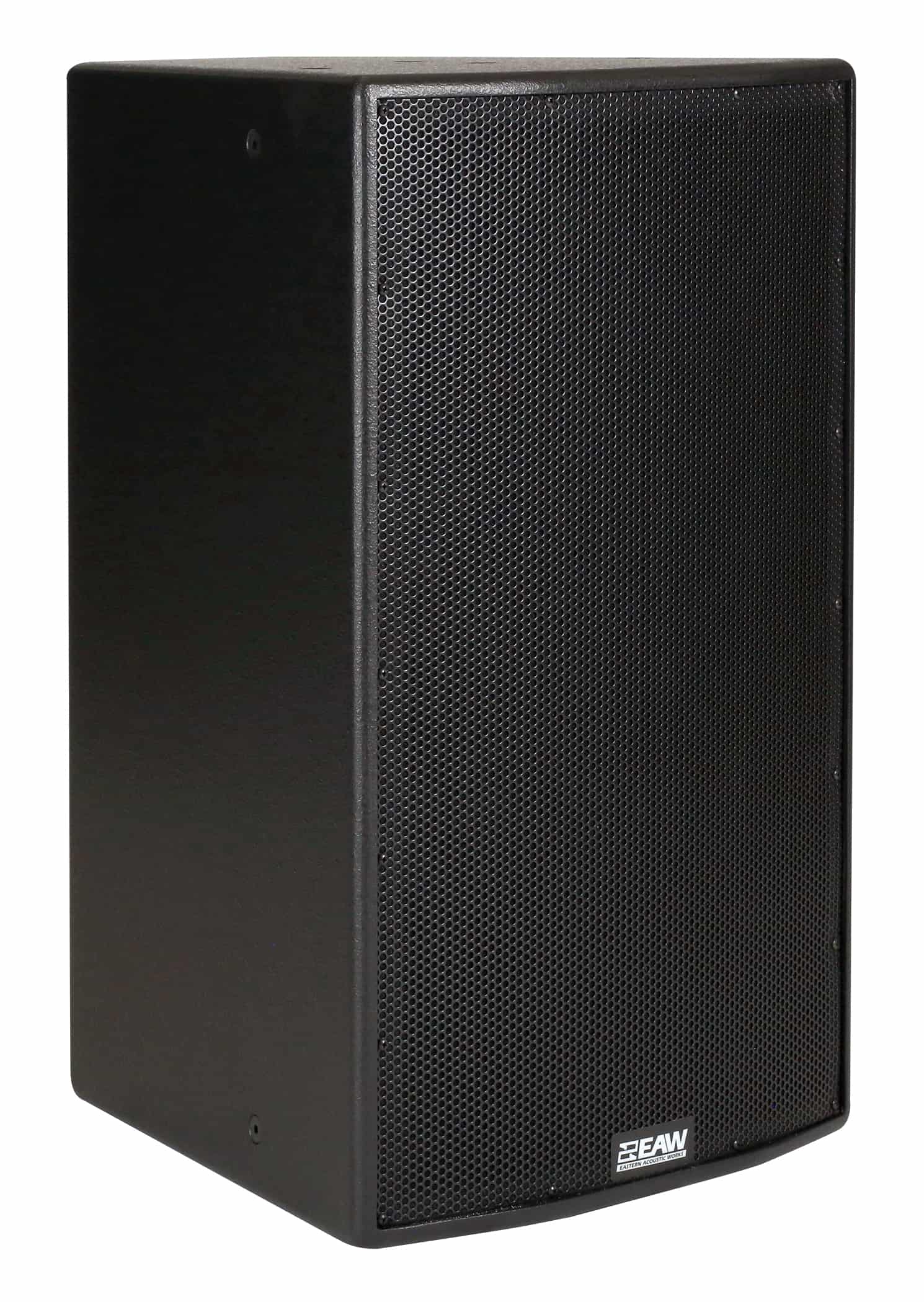

MK5300i MK5366i

From: EAWIDEAWW-AXA8

The MK5366i is a passive 2-way full-range loudspeaker featuring a 15-inch LF driver and 1.4-inch HF compression driver with 60°x60° coverage. Designed for installations and portable use, it delivers 139dB max SPL and operates from 48Hz-17kHz. Constructed with Baltic birch plywood, it includes barrier strip inputs, user-rotatable horns, and multiple rigging points including 15x 3/8"-16 mounting holes. Suitable for venues ranging from houses of worship to arenas, it supports single-amp or bi-amp operation with external processing.

Used Equipment

Vendors

Used Sources

Rental

Vendor Locations

Rental Sources

Product Details

Brand:EAW

Audio Speaker Type:Point Source Loudspeakers, Full-Range Speakers, Installation Loudspeakers

Amplification Type:Passive

Max. SPL:139 dB

Nominal Horizontal Coverage:60 º

Nominal Vertical Coverage:60 º

LF Driver Diameter:15 "

Amount of LF Speakers:1

Audio Network Protocol:None

Cardioid Capability:No

Audio Speaker Features:Rotatable Horn

Amount of Speakers in Device:2

Components:1x 15-inch LF driver, 1x 1.4-inch HF compression driver

RMS Power Handling:800 W

Frequency Response:48–17 000 Hz

Nominal Impedance (Ohm):8

Speaker Mounting Options:Pole Mounted, Array Frame Compatible, Flyware Compatible

Housing Colour:White, Black

Cabinet Construction:Exterior-grade Baltic birch plywood with wear-resistant textured black paint

Power Options:Other

IP Rating:IP20

Manufacturer Code:2040046-90

Product Series:MK Series

Optional Accessories:Eye Bolt, U-Bracket (Black/White)

Compatible with:EAW UXA4403, EAW UXA4807D, Adaptive Tech MM-60/MM-120

Weight:34.90 kg

Dimensions

Width:47.52 cm

Length:50.11 cm

Height:76.20 cm

All information is provided without warranty. If you find any errors, please let us know using the feedback button.

All information is provided without warranty.

If you find any errors, please let us know using the feedback button.

Brand	EAW
Audio Speaker Type	Point Source Loudspeakers, Full-Range Speakers, Installation Loudspeakers
Amplification Type	Passive
Max. SPL	139 dB
Nominal Horizontal Coverage	60 º
Nominal Vertical Coverage	60 º
LF Driver Diameter	15 "
Amount of LF Speakers	1
Audio Network Protocol	None
Cardioid Capability	No
Audio Speaker Features	Rotatable Horn
Amount of Speakers in Device	2
Components	1x 15-inch LF driver, 1x 1.4-inch HF compression driver
RMS Power Handling	800 W
Frequency Response	48–17 000 Hz
Nominal Impedance (Ohm)	8
Speaker Mounting Options	Pole Mounted, Array Frame Compatible, Flyware Compatible
Housing Colour	White, Black
Cabinet Construction	Exterior-grade Baltic birch plywood with wear-resistant textured black paint
Power Options	Other
IP Rating	IP20
Manufacturer Code	2040046-90
Product Series	MK Series
Optional Accessories	Eye Bolt, U-Bracket (Black/White)
Compatible with	EAW UXA4403, EAW UXA4807D, Adaptive Tech MM-60/MM-120
Weight	34.90 kg
Dimensions
Width	47.52 cm
Length	50.11 cm
Height	76.20 cm
