LS832i

From: EAWIDEAWW-SYQJ
LS832i

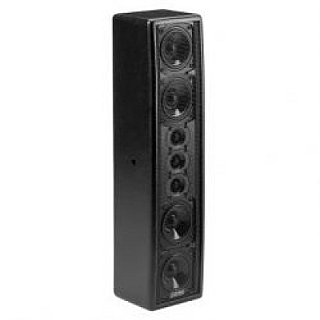

LS832i image 1
EAW's LS832i is a passive two-way column loudspeaker system featuring 8x 4-inch woofers and 3x 1-inch soft dome tweeters arranged in a vertical line source configuration. The system maintains a 20° nominal vertical coverage pattern down to 630 Hz while providing a consistent 140° horizontal dispersion. Sophisticated frequency shading and all-pass filtering integrate the drivers, maximizing line source coupling while eliminating grading lobes. With a frequency response from 100 Hz to 20 kHz and power handling of 200W at 12 ohms, this full-range speaker delivers 132 dB maximum SPL. The rectangular enclosure features Baltic birch plywood construction with black polyurethane finish and multiple mounting options for permanent installations in reverberant spaces.
Used Equipment
0
Vendors
Rental
0
Vendor Locations

Product Details

Brand:EAW
Audio Speaker Type:Column Loudspeakers (Line Radiators), Full-Range Speakers, Installation Loudspeakers
Amplification Type:Passive
Max. SPL:132 dB
Nominal Horizontal Coverage:140 º
Nominal Vertical Coverage:20 º
LF Driver Diameter:4 "
Amount of LF Speakers:8
Audio Network Protocol:None
Cardioid Capability:No
Amount of Speakers in Device:11
Components:LF - 8x 4 in. cone; HF - 3x 1 in. soft dome tweeter
RMS Power Handling:200 W
Frequency Response:100–20 000 Hz
Nominal Impedance (Ohm):12
Speaker Mounting Options:Pole Mounted, Flyware Compatible
Housing Colour:Black
Cabinet Construction:Baltic birch plywood enclosure with black polyurethane finish and vinyl-coated perforated steel grille
IP Rating:IP20
Manufacturer Code:LS832i
Product Series:LS Series
Optional Accessories:FC142 Forged Shoulder Eyebolt
Weight:13.70 kg

Dimensions

Width:15.90 cm
Length:15.20 cm
Height:112 cm
