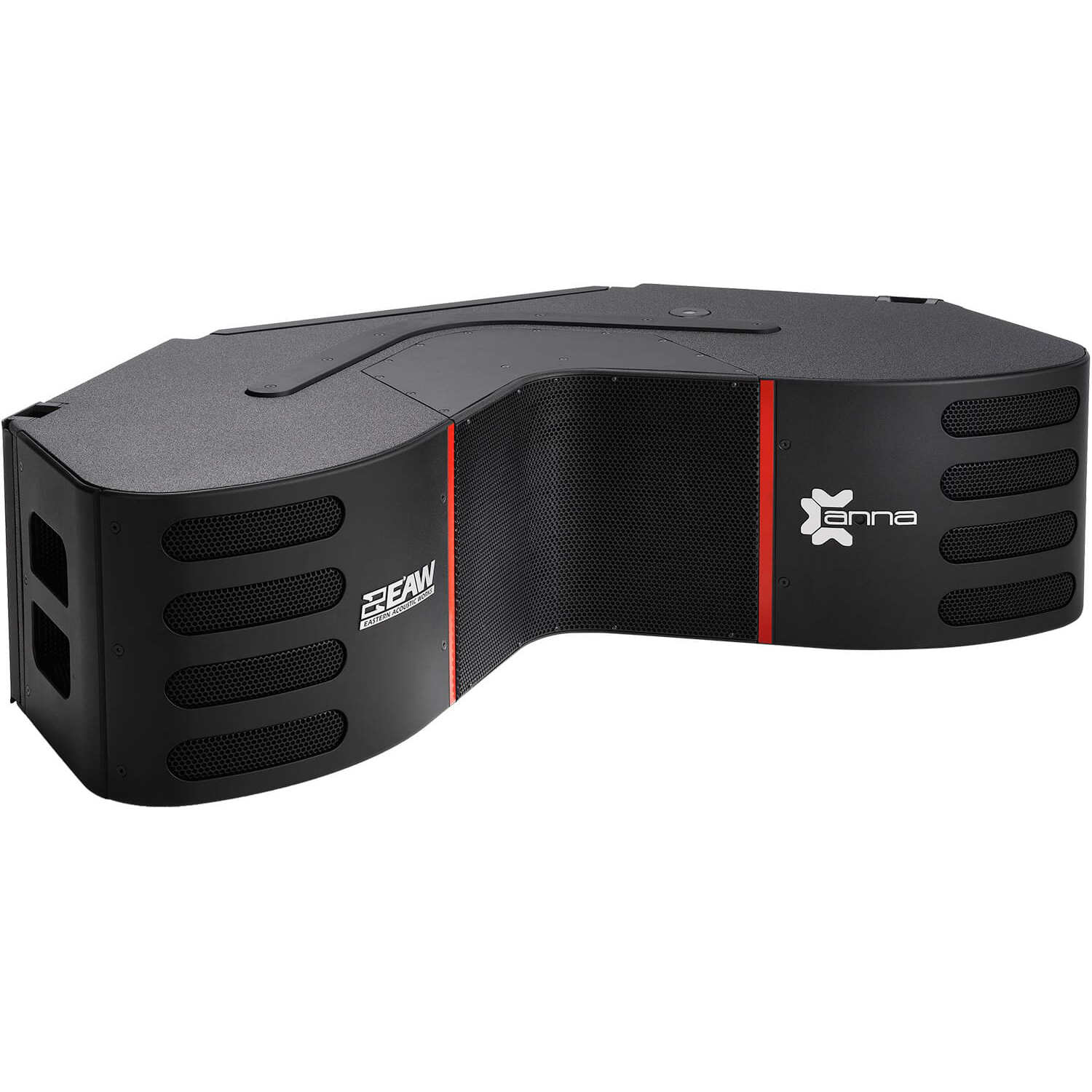

Anna

From: EAWIDEAWW-VYSB

Anna is EAW's high-output mid-sized Adaptive Array Module featuring an extraordinary 135 lb (61 kg) weight-to-performance ratio. It incorporates 8x 1-inch HF, 4x 5-inch MF, and dual 10-inch LF transducers with Concentric Summation Array technology. The system delivers 100° horizontal dispersion and adaptive vertical coverage, with Resolution 2 software enabling custom-tailored coverage patterns. Each module contains field-replaceable 14-channel DSP and amplification driving all transducers independently. Weighing only 135 lbs (61 kg), Anna suits applications from small venues to large arenas, and can be arrayed with Anya modules for expanded coverage.

Used Equipment

Vendors

Used Sources

Rental

Vendor Locations

Rental Sources

Product Details

Brand:EAW

Audio Speaker Type:Line Array Modules / Tops

Amplification Type:Active / Self-Powered

Max. SPL:147 dB

Nominal Horizontal Coverage:100 º

LF Driver Diameter:10 "

Amount of LF Speakers:2

Physical Digital Audio Connectors:Ethernet (RJ45), XLR (3-pin)

Audio Network Protocol:AES67, Dante

Cardioid Capability:No

Audio Speaker Features:Onboard DSP

Amount of Speakers in Device:14

Components:2x 10-inch LF drivers, 4x 5-inch MF drivers, 8x 1-inch HF drivers

RMS Power Handling:8 000 W

Frequency Response:45–18 000 Hz

Power Options for Active Speakers:100 V, 50/60 Hz, 120 V, 60 Hz, 230 / 240 V, 50 Hz

Speaker Mounting Options:Ground Stacked, Flyware Compatible

Housing Colour:Black

Typical Power Consumption of Active Speakers:1 600 W

Cabinet Construction:Powder-coated cast aluminum and exterior-grade Baltic birch plywood with wear-resistant textured RoadCoat finish; powder-coated perforated steel grille

Power Consumption Typical:1 600 W

Power Options:100 V, 50 / 60 Hz, 120 V, 60 Hz, 230 V / 240 V, 50 Hz

IP Rating:IP20

Product Series:Adaptive Series

Optional Accessories:Distro Racks, Flybars, Cable Looms, Pallets, Covers, Spare Transducers, Amplifier Service Packs

Compatible with:Anya, Adaptive Systems

Weight:61.40 kg

Dimensions

Width:101.60 cm

Length:59.90 cm

Height:28.70 cm
