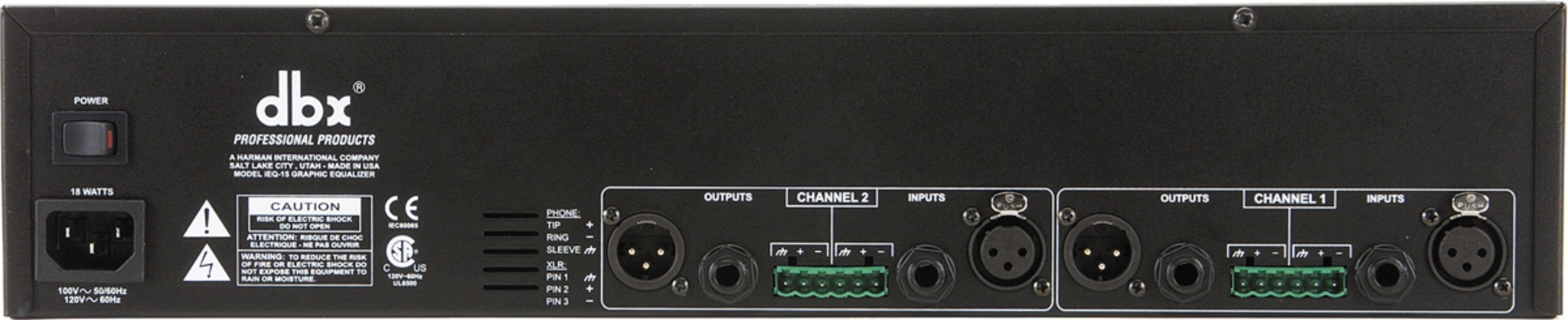

iEQ15

From: dbxIDDBX6-H5AQ

The dbx iEQ-15 features two 15-band 2/3-octave graphic equalizer channels with switchable +6 or +15 dB boost/cut range. It includes Advanced Feedback Suppression (AFS™), Type V™ noise reduction, and PeakStopPlus® limiting. The unit offers +12 dB input gain range, 40mm faders, XLR, 1/4" and Euroblock inputs/outputs, and provides a frequency response of 10Hz to 22kHz with over 113dB dynamic range. It features 24-bit digital resolution, 48kHz sample rate, and 2ms latency. Designed for portable and touring applications with relay bypass for power failure protection.

Used Equipment

Vendors

Used Sources

Rental

Vendor Locations

Rental Sources

Product Details

Brand:dbx

Sample Rate n:48 kHz

Maximum Sample Rate:48 kHz

Bit Depth (bit):24

Audio Network Protocol:None

Quantity of Inputs:2

Quantity of Outputs:2

Analog Input Channels:2

Physical Audio Input Connectors:XLR (3-Pin), 6,3 mm TRS Jack, Phoenix / Euroblock

Analog Output Channels:2

Physical Audio Output Connectors:XLR (3-Pin), 6,3 mm TRS Jack, Phoenix / Euroblock

MIDI Controllable:No

Power Consumption Typical:17 W

Power Options:120 V, 60 Hz, 230 V / 240 V, 50 Hz

Product Series:iEQ

Manufacturer Code:iEQ15

Control Methods:Physical controls (faders, sliders)

Rack mounting:2U rack mount

Frequency Response:20–20 000 Hz

Redundant Power Supply:No

Dimensions

Width:48.26 cm

Length:20.07 cm

Height:8.89 cm

All information is provided without warranty. If you find any errors, please let us know using the feedback button.

All information is provided without warranty.

If you find any errors, please let us know using the feedback button.

Brand	dbx
Sample Rate n	48 kHz
Maximum Sample Rate	48 kHz
Bit Depth (bit)	24
Audio Network Protocol	None
Quantity of Inputs	2
Quantity of Outputs	2
Analog Input Channels	2
Physical Audio Input Connectors	XLR (3-Pin), 6,3 mm TRS Jack, Phoenix / Euroblock
Analog Output Channels	2
Physical Audio Output Connectors	XLR (3-Pin), 6,3 mm TRS Jack, Phoenix / Euroblock
MIDI Controllable	No
Power Consumption Typical	17 W
Power Options	120 V, 60 Hz, 230 V / 240 V, 50 Hz
Product Series	iEQ
Manufacturer Code	iEQ15
Control Methods	Physical controls (faders, sliders)
Rack mounting	2U rack mount
Frequency Response	20–20 000 Hz
Redundant Power Supply	No
Dimensions
Width	48.26 cm
Length	20.07 cm
Height	8.89 cm
