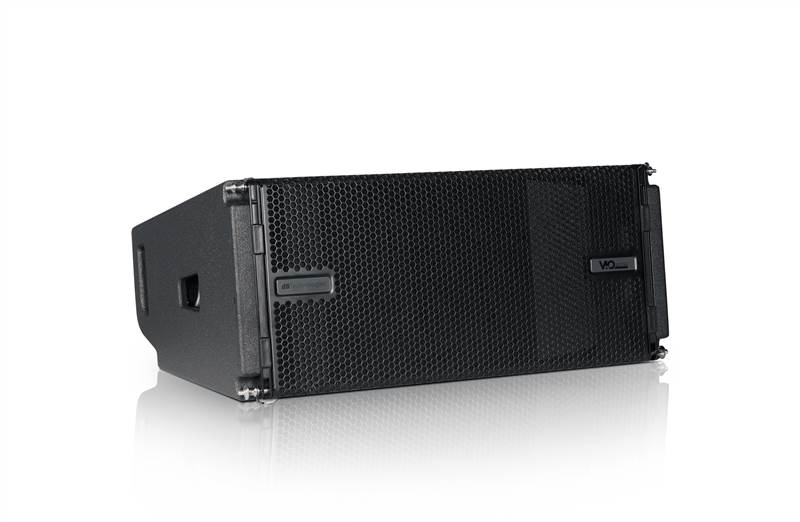

VIO L210

From: dBTechnologiesIDDBTE-3R4N

The VIO L210 is a 2-way active line array module designed for professional audio applications. It features a 900 W RMS Digipro G3 amplifier delivering 135 dB maximum SPL. The frequency response ranges from 78 Hz to 18,100 Hz (±3 dB), with a usable bandwidth of 67-20,000 Hz (-6 dB). The system utilizes a 1.4" neodymium compression driver with 3" voice coil for high frequencies and two 10" neodymium LF drivers arranged in a V-formation within a bass reflex enclosure. Advanced DSP processing with FIR filters ensures coherent audio performance at long distances. The cabinet includes aluminum phase plugs and features a built-in 3-point rigging system for efficient array setup.

Used Equipment

Vendors

Used Sources

Rental

Vendor Locations

Rental Sources

Product Details

Brand:dBTechnologies

Audio Speaker Type:Line Array Modules / Tops

Amplification Type:Active / Self-Powered

Max. SPL:135 dB

Nominal Horizontal Coverage:100 º

LF Driver Diameter:10 "

Amount of LF Speakers:2

Physical Digital Audio Connectors:Ethernet (RJ45)

Audio Network Protocol:None

Cardioid Capability:No

Audio Speaker Features:Onboard DSP

Amount of Speakers in Device:3

Components:1x 1.4" neodymium HF driver, 2x 10" neodymium LF drivers

RMS Power Handling:900 W

Frequency Response:78–18 100 Hz

Power Options for Active Speakers:100 V, 50/60 Hz, 120 V, 60 Hz, 230 / 240 V, 50 Hz

Speaker Mounting Options:Array Frame Compatible, Flyware Compatible

Housing Colour:Black

Typical Power Consumption of Active Speakers:900 W

Cabinet Construction:Multiplex plywood, polyurea painted

Power Consumption Typical:900 W

Power Options:100 V, 50 / 60 Hz, 120 V, 60 Hz, 230 V / 240 V, 50 Hz

IP Rating:IP20

Manufacturer Code:1 030 102 421

Product Series:VIO L

Optional Accessories:TC VIOL210, AF-VIO1, TF-VIO1, DPTC-2000M, DAC-70, DCK-27T, DPTC-1000M, DPTC-70L, DRK-210, FSA - VIOL210, GSA-VIOL210, RDC-45F, RDC-45M, RJ45-RJ45-75, DT-VIOL210L, DTT-VIOL210, EFK-2

Included Accessories:Rain Cover

Compatible with:Aurora Net, dBTechnologies Composer, EASE Focus, RDNet

Weight:28.60 kg

Dimensions

Width:72 cm

Length:52 cm

Height:32 cm

All information is provided without warranty. If you find any errors, please let us know using the feedback button.

All information is provided without warranty.

If you find any errors, please let us know using the feedback button.

Brand	dBTechnologies
Audio Speaker Type	Line Array Modules / Tops
Amplification Type	Active / Self-Powered
Max. SPL	135 dB
Nominal Horizontal Coverage	100 º
LF Driver Diameter	10 "
Amount of LF Speakers	2
Physical Digital Audio Connectors	Ethernet (RJ45)
Audio Network Protocol	None
Cardioid Capability	No
Audio Speaker Features	Onboard DSP
Amount of Speakers in Device	3
Components	1x 1.4" neodymium HF driver, 2x 10" neodymium LF drivers
RMS Power Handling	900 W
Frequency Response	78–18 100 Hz
Power Options for Active Speakers	100 V, 50/60 Hz, 120 V, 60 Hz, 230 / 240 V, 50 Hz
Speaker Mounting Options	Array Frame Compatible, Flyware Compatible
Housing Colour	Black
Typical Power Consumption of Active Speakers	900 W
Cabinet Construction	Multiplex plywood, polyurea painted
Power Consumption Typical	900 W
Power Options	100 V, 50 / 60 Hz, 120 V, 60 Hz, 230 V / 240 V, 50 Hz
IP Rating	IP20
Manufacturer Code	1 030 102 421
Product Series	VIO L
Optional Accessories	TC VIOL210, AF-VIO1, TF-VIO1, DPTC-2000M, DAC-70, DCK-27T, DPTC-1000M, DPTC-70L, DRK-210, FSA - VIOL210, GSA-VIOL210, RDC-45F, RDC-45M, RJ45-RJ45-75, DT-VIOL210L, DTT-VIOL210, EFK-2
Included Accessories	Rain Cover
Compatible with	Aurora Net, dBTechnologies Composer, EASE Focus, RDNet
Weight	28.60 kg
Dimensions
Width	72 cm
Length	52 cm
Height	32 cm
