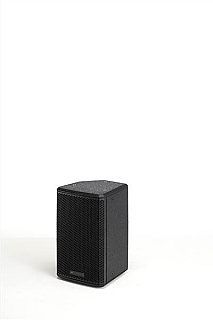

LVX P8 Black
From: dBTechnologiesIDDBTE-CF36
LVX P8 Black
From: dBTechnologiesIDDBTE-CF36
LVX P8 is a 2-way passive speaker designed for medium to large venues, delivering clear audio performance for speech, live, or background music. It features 74-18,000 Hz frequency response, 8-ohm impedance, and 400W peak power handling. The speaker incorporates a 1" high-frequency driver with 1" voice coil and an 8" low-frequency driver with 1.5" voice coil. It offers a 90°x70° dispersion pattern with a rotatable horn for installation flexibility. The cabinet is constructed of plywood with 12 M8-thread rigging points, an integrated back handle, and 36 mm pole mount plate. Weighing 8.1 kg, the LVX P8 is suitable for both mobile and installed audio applications.
Product Details
Brand:dBTechnologies
Audio Speaker Type:Point Source Loudspeakers
Amplification Type:Passive
Max. SPL:122 dB
Nominal Horizontal Coverage:90 º
Nominal Vertical Coverage:70 º
LF Driver Diameter:8 "
Amount of LF Speakers:1
Audio Network Protocol:None
Cardioid Capability:No
Audio Speaker Features:Rotatable Horn
Amount of Speakers in Device:2
Components:1x 1" HF driver, 1x 8" LF driver
Frequency Response:74–18 000 Hz
Nominal Impedance (Ohm):8
Speaker Mounting Options:Pole Mounted, Flyware Compatible
Housing Colour:Black
Cabinet Construction:Plywood
IP Rating:IP20
Manufacturer Code:1 030 400 700
Product Series:LVX P
Optional Accessories:WB-LP8H (horizontal bracket), VB-LP810V (vertical bracket)
Weight:8.10 kg
Dimensions
Width:25.50 cm
Length:25.80 cm
Height:42.60 cm
